Accuracy

Checkweigher accuracy as low as ±0.01g at 3-sigma and up to 400 products/min. Outstanding contaminant detection with simultaneous dual-frequency metal detector.
Reliability: Proven dependability with over 150,000 inspection solutions installed worldwide since 1964.

Compactness

One of the industry’s smallest combination systems, able to fit in spaces as tight as 775mm.

HACCP

Assured HACCP and safety compliance.

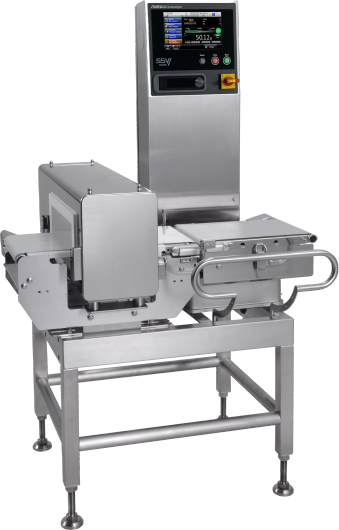

Model name: KWS5412BP5G
Weight ranger: 12 to 3,000 g
Scale interval: 0.1g
Maximum speed: 320 products/min
Maximum accuracy (3σ): +/-0.2g
Display: 8.5 inch color TFT LCD
Operation method: Touch panel )Start, Stop, and Home are direct push buttons)
Indication range: 3,009g
Preset memory: Maximum 200
Classification: 2 or 3
Product size: Width 20 to 250 mm Length 65 to 310 mm Height: 5 to 50 mm
Belt speed: 15 to 120 m/min
Power requirements: 100 to 120 Vac +10 % -15% or 200 to 240 Vac +10% -15%, single phase, 50/60 Hz, 300 VA, rush current 30A (typ.) (20 ms or less)
Mass:117kg
Environmental conditions: 0 ℃to 40 ℃ (variation not to exceed 5 ℃/h to maintain accuracy), relative humidity 30 % to 85%, non-condensing
Protection class: IP30 compliance
Exterior: stainless steel (SUS304) (excluding some parts)
Data output: USB port (USB 2.0), Ethernet interface (10BASE-T, 100 BASE-TX)
