Industry Leading Performance

All Anritsu x-ray systems come standard with HD imaging, including high resolution detectors, beryllium window tubes and precise software tools. Anritsu consistently outperforms competitors in detecting small metals and low density foreign bodies like glass, stones, and bones.

Low TCO

Advanced Long Life (A.L.L.) technology delivers up to 300% longer tube and detector life with better detection at lower power.

Reliability

Now in its 7th generation, the world’s most popular food x-ray systems have the lowest warranty rate in the industry.

Diverse Product Line

Anritsu offers high performance x-ray systems for a broad range of budgets and applications, including packaged, bulk, pumped, and cased products.

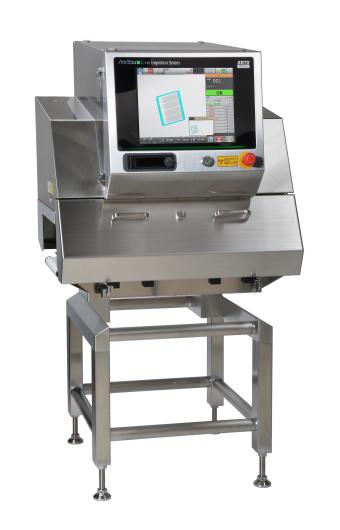

Model name: KXS7534AVCLE

X-ray output: Tube voltage 25 to 60 kV, tube current 0.4 to 3.3 mA, output 10 to 100 W

Safety: X-ray leakage maximum 1.0μSV/h or less, prevention of X-ray leakage by safety devices

Display: 15-inch color TFT LCD

Operation method: Touch panel (with touch buzzer)

Detection area: Maximum width 390 mm, maximum height 220 mm

Preset Memory: 200

Belt Speed / Maximum product weight: 10 to 60 m/min, maximum 5 kg, 10 to 40 m/min, maximum 10 kg (option)

Power requirements: 100 to 240 Vac, single phase, 50/60 HZ, 2100 VA or less

Mass:310 kg

Environmental conditions:Temperature:0℃ to 30 ℃, relative humidity:30 to 85 %, non-condensing

Protection class: Conveyor: Entire surface conforms to IP66

Exterior: Stainless steel (SUS304)
