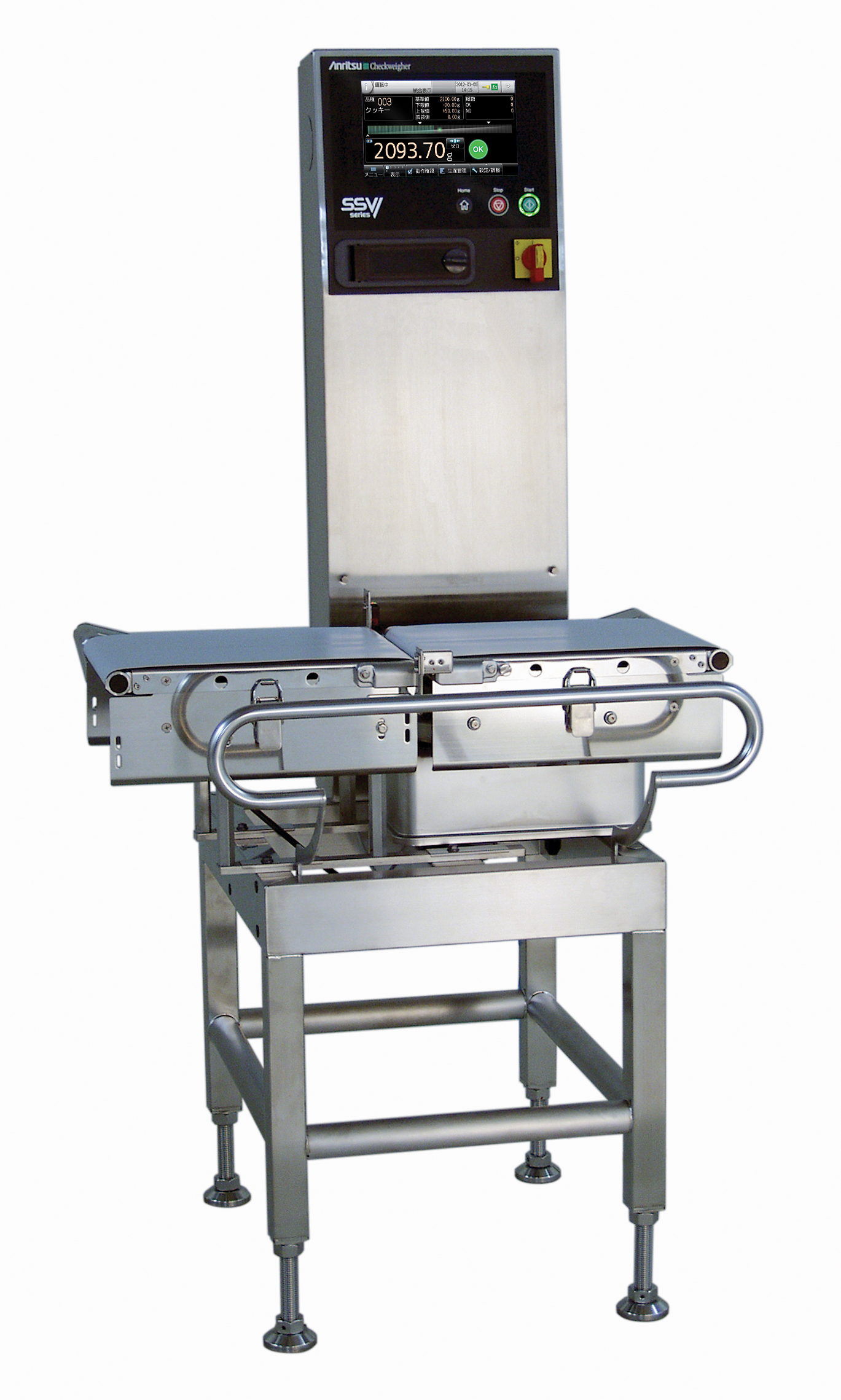

Anritsu’s SSV checkweighers deliver an ideal blend of accuracy and reliability in an extremely compact package. Their common interface with our x-rays and metal detectors simplifies usage across Anritsu equipment.

Accurate

With accuracy as low as ±0.01g, quoted at 3σ at speeds up to 600 products/min, the SSV delivers top performance and productivity.

Reliable

With eight generations and 90,000 installations worldwide since 1964, Anritsu checkweighers are engineered for decades of dependable use.

Fully Featured

Anritsu checkweighers include easy-to-use touch screens, USB, Ethernet, programmable I/O, full statistics, and auto-learn wizard.

Compact Footprint

Checkweighers start at just 545mm (21.5 inches) long, perfect for lines that are tight on space.

Weight ranger: 12 to 3,000 g

Scale interval: 0.1g

Maximum speed: 320 products/min

Maximum accuracy (3σ): +/-0.2g

Display: 8.5 inch color TFT LCD

Operation method: Touch panel )Start, Stop, and Home are direct push buttons)

Indication range: 3,009g

Preset memory: Maximum 200

Classification: 2 or 3

Product size: Width 20 to 250 mm Length 65 to 310 mm Height: 5 to 150 mm

Belt speed: 15 to 120 m/min

Power requirements: 100 to 120 Vac +10 % -15% or 200 to 240 Vac +10% -15%, single phase, 50/60 Hz, 300 VA, rush current 30A (typ.) (20 ms or less)

Mass:116kg

Environmental conditions: 0 ℃to 40 ℃ (variation not to exceed 5 ℃/h to maintain accuracy), relative humidity 30 % to 8 5%, non-condensing

Protection class: IP30 compliance

Exterior: F type: painted, P type: stainless steel (SUS304) (excluding some parts)

Data output: USB port (USB 2.0), Ethernet interface (100 BASE-TX)

Industry Leading Performance
Excellent low and high density contaminant detection—as small as 0.5mm for metal and 1-2mm for calcified pork and beef bones. All Anritsu x-ray systems come standard with HD imaging, including high resolution detectors, beryllium window tubes and precise software tools.

Reliability & TCO
Now in its 7th generation with thousands of installations, the world’s most popular food x-ray systems have the lowest warranty rate in the industry. Anritsu pipelines are designed and built in-house with Japanese attention to detail

Model name: KXS7522AWCLE-237350A
Safety: X-ray leakage maximum 1.0μSV/h or less, prevention of X-ray leakage by safety devices
Display: 15-inch color TFT LCD
Operation method: Touch panel
Product size: 12mm or smaller (less than 1/3 of the minimum height of the inspection system)
Product temperature: -5℃ to 95℃
Transfer pipe dimension: 3-inch (76.2mm) in a diameter
Inspection section pass height: 35mm (fixed)
Preset Memory: 200
Processing capacity (Flow): 11.0kL/h (180L/min) Pipe limit pressure 0/69MPa
Power requirements: 100 to 120 Vac or 200 to 240 Vac, single phase, 50/60 HZ, 1.2k VA, rush current 100A (typ.) (40ms or less)
Mass:340 kg
Air requirement: 0.4 to 0.5 Mpa, 230L/min [A.N.R.], dry air 230L/min [A.N.R.]
Air inlet: Tube having outer diameter of 8 mm
Environmental conditions:Temperature:0℃ to 40 ℃, relative humidity:30 to 85 %, non-condensing
Protection class:IP66 for product transfer section, IP40 for other sections
Cooling system: Air conditioner (standard equipped)

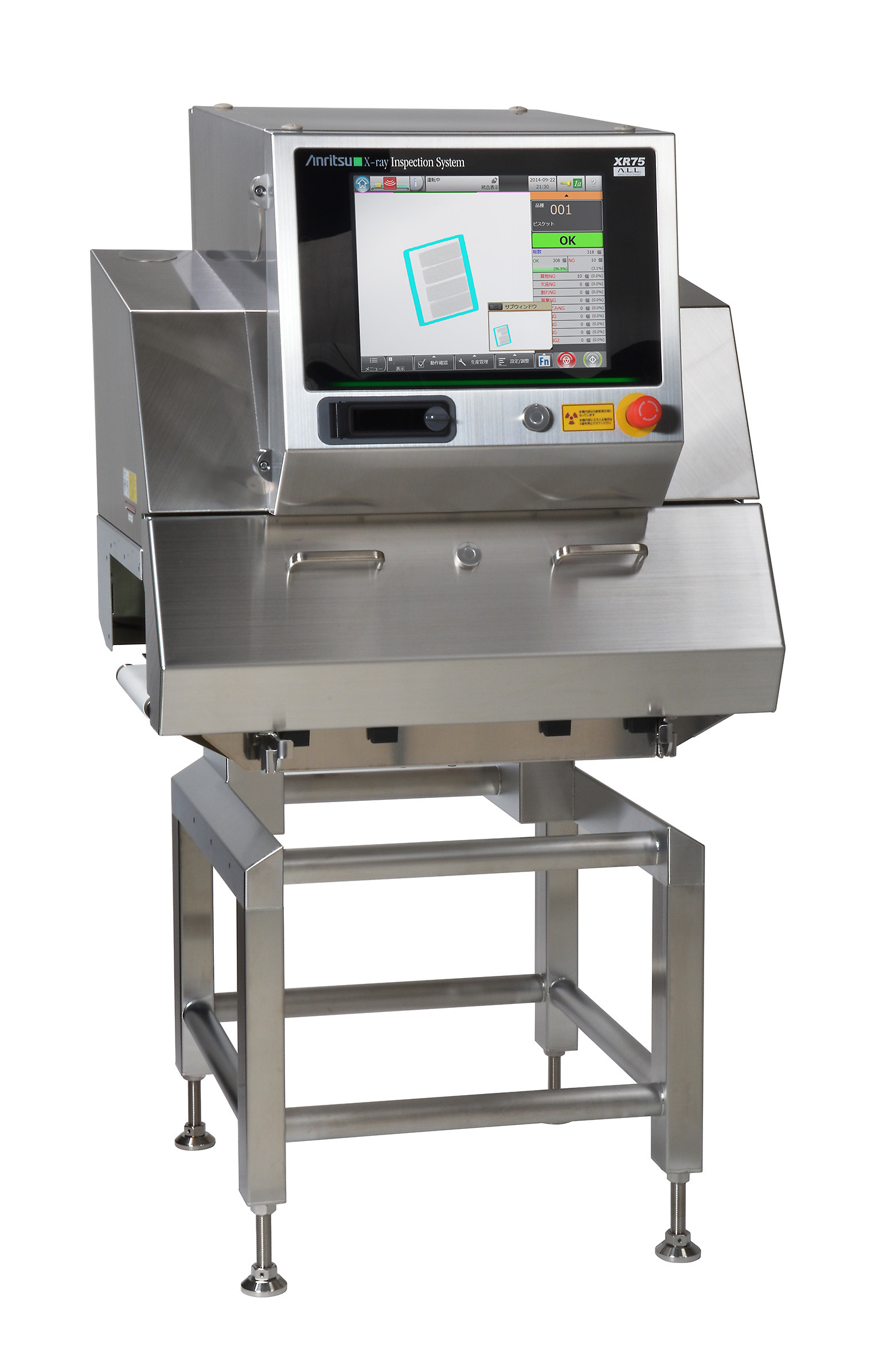

Best suitable for large cartons, cases and bags.

Advanced X-ray Technology and Simple Operation Contribute to the Enhancement of Product Quality

In addition to detecting metal contaminants, X-ray systems are capable of identifying shape defects, missing and broken products. The Anritsu XR75 X-ray Inspection System for large products is suitable for the inspection of products in large cartons, cases, and bags. The XR75 Inspection System for large products offers consistent and reliable inspection results on your production line with its outstanding detection sensitivity, ease of operation, and enhanced durability.

Intuitive, Time Saving Software
XR75 software helps operators work more efficiently, displaying reject images on the screen to easily identify contaminants.

Improvements from previous models

• Conveyance capacity
  The XR75 for large products is equipped with a high power motor, which enables the system to convey a dry product up to 50 kg and a wet product up to 40 kg.
• High rigidity of moving parts
  The rigidity of moving parts such as a conveyor cover and a motor are enhanced by performing continuous testing using the intensity analysis.
• More options available
  Extension conveyor and extension cover can be chosen according to the product length as an option.

KXS7554AWHSE

X-ray output: Tube voltage 30 to 80 kV, tube current 0.4 to 10.0 mA, output 350 W

Safety: X-ray leakage maximum 1.0 μ Sv/h or less, prevention of x-ray leakage by safety devices

Display: 15-inch color TFT LCD

Operation method: Touch panel (with touch buzzer)

Detection area: Maximum width 590 mm, maximum height 250 mm (Pass height of 350 mm is available as an option.)

Preset Memory: 200

Belt Speed / Maximum product weight:

Dry environment |

10 to 30 m/min maximum 50 kg
31 to 40 m/min maximum 40 kg
20 to 70 m/min maximum 20 kg (optional)

Wet environment where water or oil is scattered on the conveyor |

10 to 30 m/min maximum 40 kg
31 to 35 m/min maximum 30 kg
36 to 40 m/min maximum 20 kg
20 to 60 m/min maximum 20 kg (optional)
61 to 70 m/min maximum 10 kg (optional)

Power requirements: 100 Vac to 120 Vac ±10% or 200 Vac to 240 Vac ±10% (However, switch the tap of a transformer), single phase, 50/60 Hz, 1.2 kVA (1.9 kVA with optional air conditioner), rush current 70 A (typ.) (40 ms or less)

Mass: 480 kg (525 kg with optional air conditioner)

• Environmental conditions: Temperature: 0°C to 35°C (0°C to 40°C with optional air conditioner), relative humidity: 30% to 85%, non-condensing

Protection class: Conveyor: IP66 Other parts: IP40

Exterior: Stainless steel (SUS304)

The production line in the palm of your hand. All your production data—anywhere, anytime

With QUICCA, diverse information including inspection data and operational history of all inspection systems are stored in one centralized location. QUICCA is the fully automated quality control and quality management software, ensuring product quality and productivity.

Displays historical and current production status

High level production line overview showing: Conveyor on/off, production counts, and reject counts.
Production information can be viewed simultaneously from multiple locations.

Displays real-time details for each machine

With QUICCA Monitor, individual users can customize the display with information they require, enabling quick data analysis for fast, accurate decisions.

Access QUICCA from the plant floor, offices, and meeting rooms

Production information and an error message are automatically sent to the user’s mobile phone for instant notification.

Complete Product Traceability

The Inspection data and operational history of all inspection systems are automatically recorded, in chronological order, in one centralized location. When receiving complaints from consumers or retailers, the desired inspection data can be extracted via the data output wizard to confirm there were no process problems.

• Lot number and time/date traceability
• Quickly search inspection data by scanning the product's bar or 2D codes
• View the complete product history including its inspection by ALL Anritsu X-ray, Checkweighing, Metal detection and video recording system on the line

HACCP Compliance

Daily operation checks become more reliable.
CCP compliance requires verifying the operation of the inspection equipment on a regular basis. QUICCA automatically records these operation checks and the associated product name, time/date and the operator ID who performed the check. The automatic data collection eliminates possible recording omissions or recording errors.

• Create CCP monitoring report
• Provide product inspection report
• Minimize the potential for human error
• Record operator ID to each event
• Quickly search date, shipment number or lot number

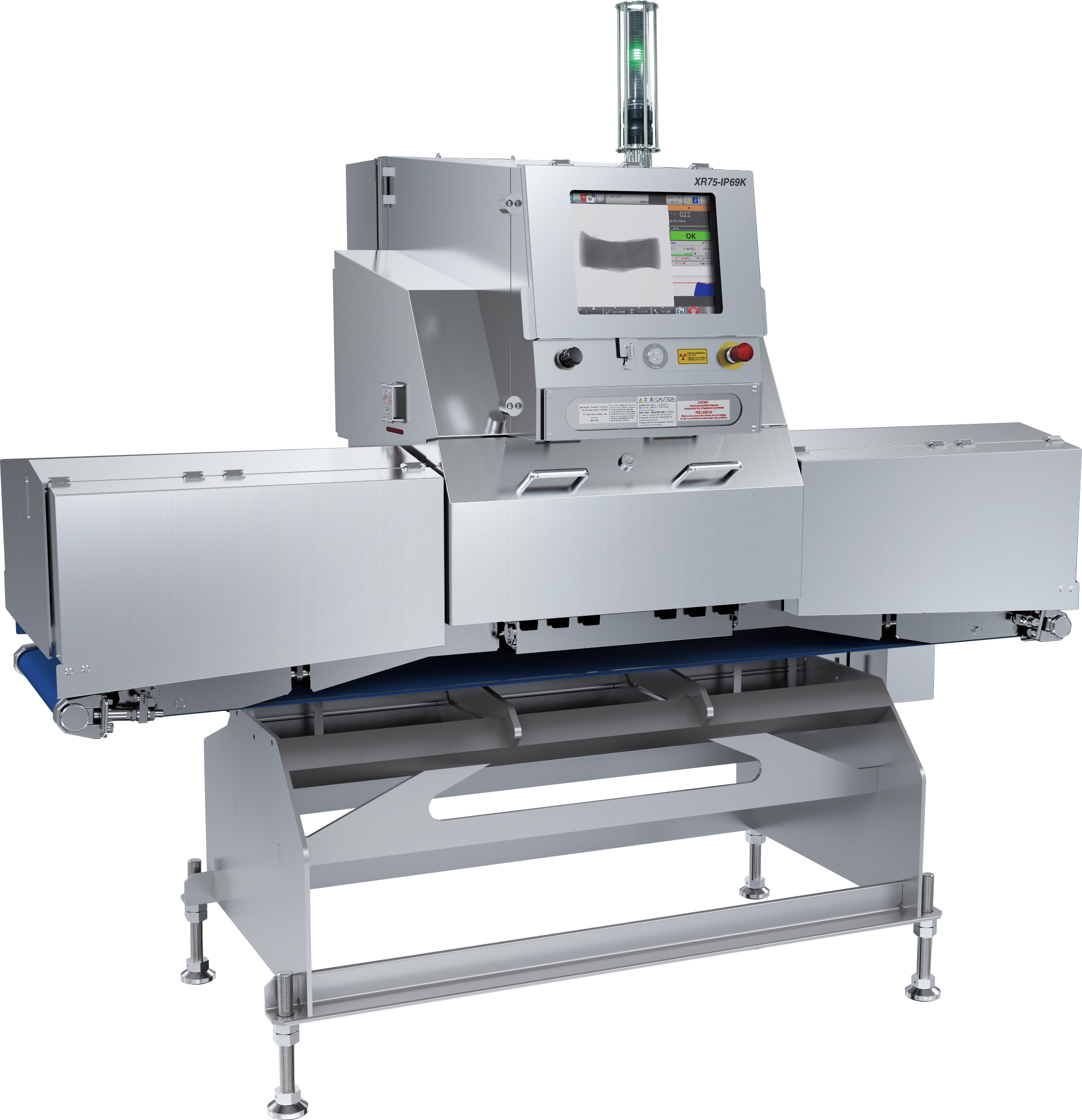

IP69K & Sanitary Design
Built on Anritsu’s popular XR75 platform, the new IP69k Sanitary x-ray offers the XR75’s reliability, ease of use, and low cost of ownership in a rugged, compact footprint. It is ideal for facilities using intensive washdown procedures to meet strict sanitation standards.

With IP69K protection, including washdown protection features like gasketed joints, robust HMI screen guard, and a heavy duty stacklight cage, the equipment allows for easy cleaning with high-pressure jets, which blast away debris and dirt, while the high temperature sanitizes the equipment. The robust, open design promotes thorough drainage and allows accessible high-pressure cleaning.

Sanitary design features
This model was engineered to meet the strictest requirements of meat & poultry and other demanding industries. Its sanitary features include the following:

-Open access for cleaning to a microbiological level
-Smooth, sloped surfaces that resist liquid pooling and promote drainage
-Minimized harborage areas (niches, gaps)
-No hollow tubing or members
-Mirror polish detection (food contact) area

Model name: KXE7534AMCLE
X-ray output: Tube voltage 30 to 80 kV, tube current 0.4 to 3.3 mA, output 100 W
Safety: Maximum 1.0 μSv/h or less, prevention of x-ray leakage by safety devices
Display: 15-inch color TFT LCD
Operation method: Touch panel (with touch buzzer)
Detection area: Maximum width 370 mm, maximum height 200 mm
Belt width: 465 mm
Preset memory: 200
Belt Speed / Maximum product weight: 10 to 40 m/min, maximum 25 kg, 40 to 80 m/min, maximum 10 kg
Power requirements: 200 Vac to 240 Vac, single phase, 50/60 Hz, 1500 VA or less (standard)
Mass:410 kg
Environmental conditions:Temperature:0℃ to 35 ℃, relative humidity:30 to 85 %, non-condensing
Protection class: Conveyor: Conveyor: IP69K (maximum water temperature: 80℃)
Other parts: IP69K (maximum water temperature: 60℃)
Exterior: Stainless steel (SUS304)
