YX Series Automatic Smokehouse have many functions such as smoking, cooking, drying, steaming, etc. And it can customize with cooling system to realize cooling smoking function as per customer’s request.
Chapter two: Features and main technical parameter：
1、Features：
（1）YX Series Automatic Smokehouse adopts assembled machine box structure, one trolley space as one unit. Machine box of every unit adopts completely high pressure polyurethane PU foam, with good heat insulation property. Every unit has independent wind chamber, mutual non-interference cyclic wind; adopts double speed motor and special wing type centrifugal impeller, the max speed of top part can reach 24m/s, the speed of bottom part can reach 4m/s, adopts low rotate double speed fan motor, which will increase the motor’s service life; unique air duct design and independent wind chamber make the inside an even turbulent flow field, which can mostly guarantee products to be ripping evenly during cooking, drying, and steaming process, and mostly guarantee the the products be colored evenly during smoking process. The door of smokehouse adopts completely polyurethane PU foam with high entire strength, adopts imported silicon seal strip with good sealing effect and long service life; the front and back end of machine box baseplates are designed into fixed cantboard, no need for turnover style guide rail, can make trolley enter smokehouse directly, which avoid pollution caused by turnover style guide rail.
（2）YX Series Automatic Smokehouse adopts advanced PLC / PC computer control system, can store many different craft formula, operation is easy and reliable.
（3）YX Series Automatic Smokehouse adopts wood chips smoke generator. External wood chips smoke generator can reach normal smoke effect within one minutes.
（4）YX Series Automatic Smokehouse adopts channel type with front and back doors or one side door type. There is detecting device installed on the top of door to check if the door is closed well. If customer request, it could adopts interlock device.
（5）YX Series Automatic Smokehouse adopts cleaning system in every set smokehouse. Easy and convenient to operate and can clean the smokehouse completely.
（6）YX Series Automatic Smokehouse adopts domestic and internal well known brand electrical components, and we can customize electric components as per customer’s request.
Main technical parameter：（Commonly used models）
Steam Heating

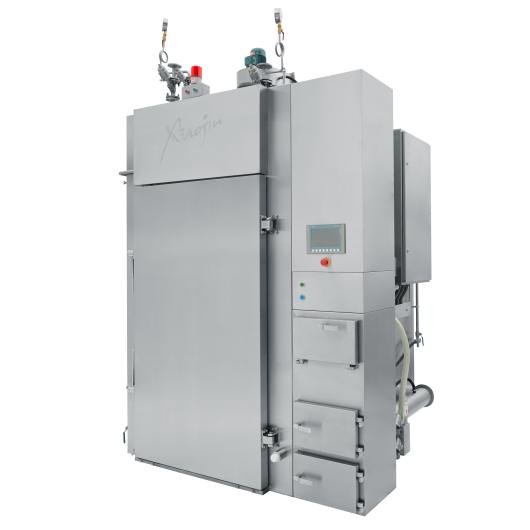

（1）YXQ1/1：One door one trolley automatic steam heating smokehouse
External dimension： (L)x(W)x(H) 1330x2223x3140
Production capacity： Max 250kg
Total power： 5kw
Air consumption： Max 40kg/h
High steam pressure：0.6-0.8Mpa
Low steam pressure：≤0.1Mpa
Compressed air pressure：≥0.4Mpa
Water supply pressure： ≥0.4Mpa
（2）YXQ1/2：One door two trolleys automatic steam heating smokehouse
External dimension： (L)x(W)x(H) 2439x2223x3140
Production capacity： Max 500kg
Total power： 9kw
Air consumption： Max 80kg/h
High steam pressure：0.6-0.8Mpa
Low steam pressure：≤0.1Mpa
Compressed air pressure：≥0.4Mpa
Water supply pressure： ≥0.4Mpa
（3）YXQ2/2：Two doors two trolleys automatic steam heating smokehouse
External dimension： (L)x(W)x(H) 2439x2223x3140
Production capacity： Max 500kg
Total power： 9kw
Air consumption： Max 80kg/h
High steam pressure：0.6-0.8Mpa
Low steam pressure：≤0.1Mpa
Compressed air pressure：≥0.4Mpa
Water supply pressure： ≥0.4Mpa
（4）YXQ1/4：One door four trolleys automatic steam heating smokehouse
External dimension： (L)x(W)x(H) 4650x2223x3140
Production capacity： Max 1000kg
Total power： 17kw
Air consumption： Max 160kg/h
High steam pressure：0.6-0.8Mpa
Low steam pressure：≤0.1Mpa
Compressed air pressure：≥0.4Mpa
Water supply pressure： ≥0.4Mpa
（5）YXQ2/4：Two doors four trolleys automatic steam heating smokehouse
External dimension：(L)x(W)x(H) 4650x2223x3140
Production capacity： Max 1000kg
Total power： 17kw
Air consumption： Max 160kg/h
High steam pressure：0.6-0.8Mpa
Low steam pressure：≤0.1Mpa
Compressed air pressure：≥0.4Mpa
Water supply pressure： ≥0.4Mpa
Electric heating
（1）YXD1/1：one door one trolley electric heating smokehouse
External dimension： (L)x(W)x(H) 1330x2223x3140
Production capacity： Max 250kg
Total power： 29kw
Compressed air pressure：≥0.4Mpa
Water supply pressure： ≥0.4Mpa
（2）YXD1/2：one door two trolleys electric heating smokehouse
External dimension： (L)x(W)x(H) 2439x2223x3140
Production capacity： Max 500kg
Total power：57kw
Compressed air pressure：≥0.4Mpa
Water supply pressure： ≥0.4Mpa
（3）YXD2/2：Two doors two trolleys automatic electric heating smokehouse
External dimension： (L)x(W)x(H) 2439x2223x3140
Production capacity： Max 500kg
Total power：57kw
Compressed air pressure：≥0.4Mpa
Water supply pressure： ≥0.4Mpa
