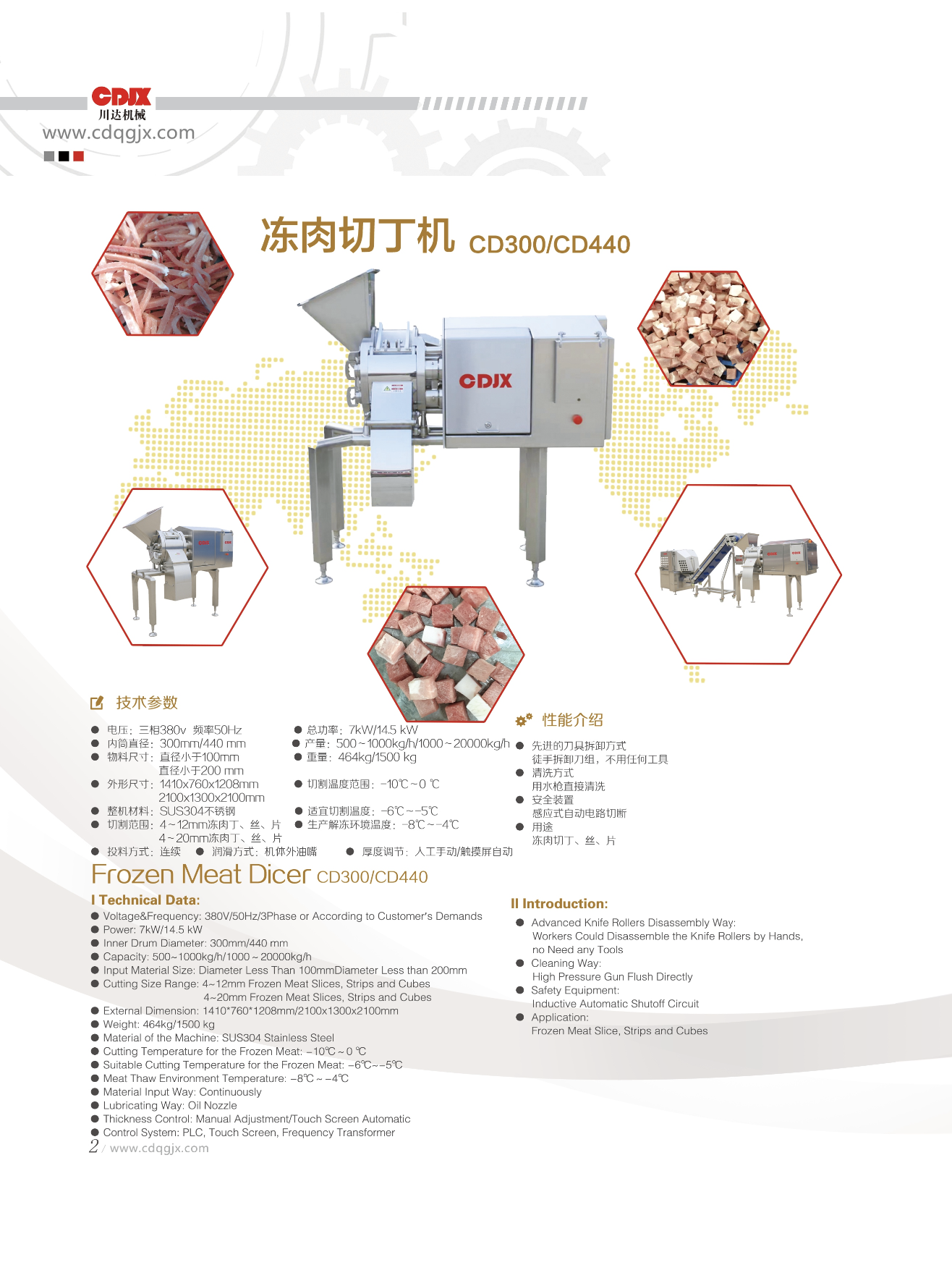

Frozen Meat Dicer CD300/CD440

Technical Data：

Control System: PLC, Touch Screen, Frequency Transformer

Voltage&Frequency: 380V/50Hz/3Phase or According to Customer’s Demands

Power: 7kW/14.5 kW

Inner Drum Diameter: 300mm/440 mm

Capacity: 500~ 1000kg/h / 1000 ~ 20000kg/n

Input Material Size: Diameter Less Than 100mm / Diameter Less than 200mm

Cutting Size Range: 4~12mm Frozen Meat Slices, Strips and Cubes
4~20mm Frozen Meat Slices, Strips and Cubes

External Dimension: 1410*760*1208mm/2100*1300*2100mm

Weight: 464kg/1500 kg

Material of the Machine: SUS304 Stainless Steel

Cutting Temperature for the Frozen Meat: – 10°C ~ 0 °C

Suitable Cutting Temperature for the Frozen Meat: -6°C~-5°C

Meat Thaw Environment Temperature: -8°C ~ -4°C¦

Material Input Way: Continuously

Lubricating Way: Oil Nozzle

Thickness Control: Manual Adjustment/Touch Screen Automatic

Introduction：

Advanced Knife Rolers Disassembly Way:
Workers Could Disassemble the Knife Rolers by Hands,no Need any Tools

Cleaning Way: High Pressure Gun Flush Directly

Safety Equipment: Inductive Automatic Shutoff Circuit

Application: Frozen Meat Slice, Strips and Cubes
