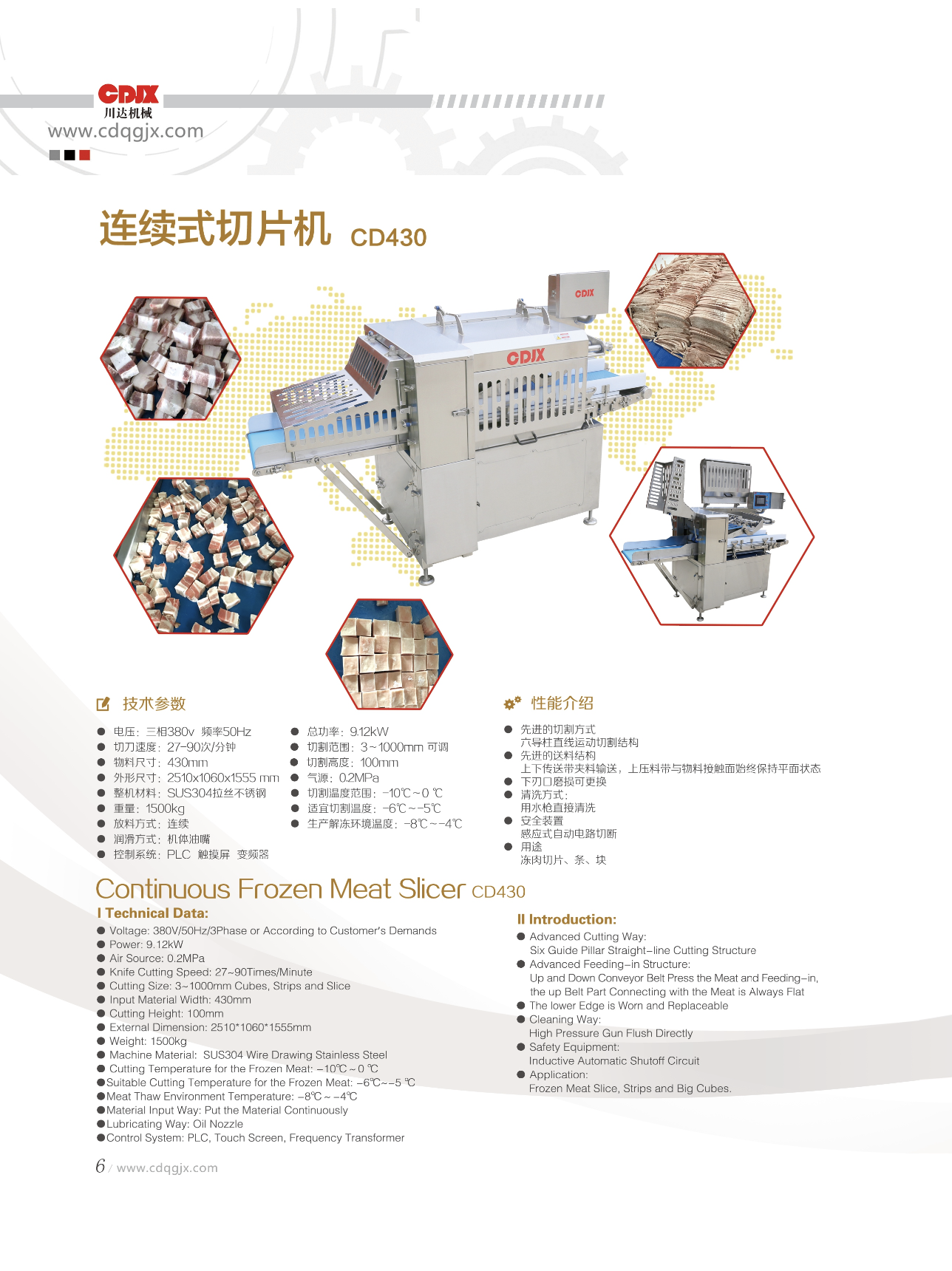

Continuous Frozen Meat Slicer CD430

Technical Data：

Voltage: 380V/50Hz/3Phase or According to Customer’s Demands

Power: 9.12kW ¦

Air Source: 0.2MPa

Knife Cutting Speed: 27~90Times/Minute

Cutting Size: 3~ 1000mm Cubes, Strips and Slice

Input Material Width: 430mm

Cutting Height: 100mm

External Dimension: 2510*1060*1555mm

Weight: 1500kg

Machine Material: SUS304 Wire Drawing Stainless Steel

Cutting Temperature for the Frozen Meat: -10°C ~ 0 °C

Suitable Cutting Temperature for the Frozen Meat: -6°C~-5 °C

Meat Thaw Environment Temperature: -8°C ~ -4°C

Material Input Way: Put the Material Continuously

Lubricating Way: Oil Nozzle

Control System: PLC, Touch Screen, Frequency Transformer

Introduction：

Advanced Cutting Way: Six Guide Pillar Straight-line Cutting Structure

Advanced Feeding-in Structure:

Up and Down Conveyor Belt Press the Meat and Feeding-in, the up Belt Part Connecting with the Meat is Always Flat

The lower Edge is Worn and Replaceable

Cleaning Way: High Pressure Gun Flush Directly

Safety Equipment: Inductive Automatic Shutoff Circuit

Application: Frozen Meat Slice, Strips and Big Cubes.
