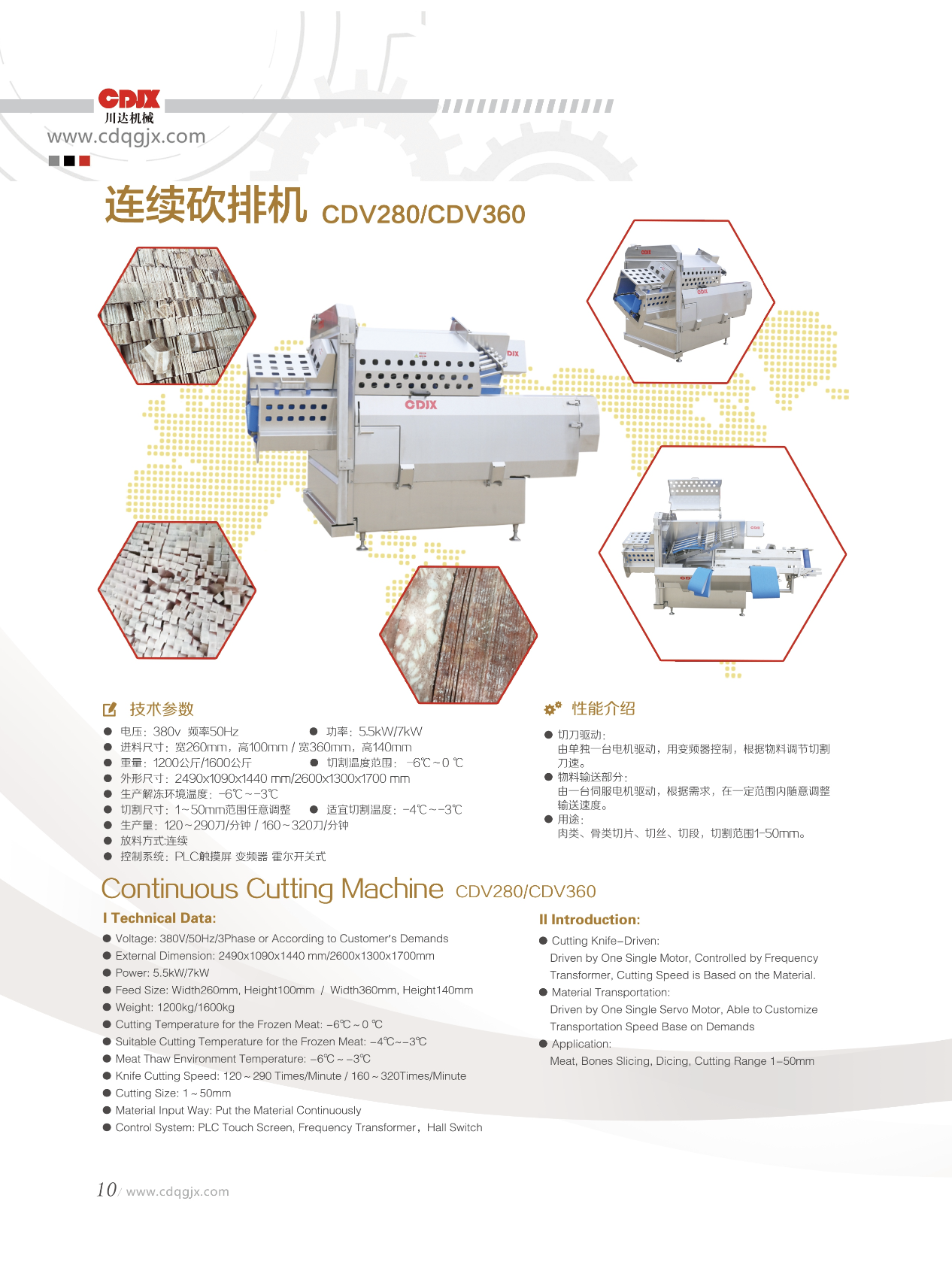

Continuous Cutting Machine CDV280/CDV360

Technical Data：

Voltage: 380V/50Hz/3Phase or According to Customer’s Demands

External Dimension: 2490x1090x1440 mm/2600x1300x1700mm

Power: 5.5kW/7kW

Feed Size: Width260mm, Height100mm / Width360mm, Height140mm¦

Weight: 1200kg/1600kg

Cutting Temperature for the Frozen Meat: -6°C ~ 0 °C

Suitable Cutting Temperature for the Frozen Meat: -4°C~-3°C

Meat Thaw Environment Temperature: -6°C ~ -3°C

Knife Cutting Speed: 120 ~ 290 Times/Minute / 160 ~ 320Times/Minute

Cutting Size: 1 ~ 50mm

Material Input Way: Put the Material Continuously

Control System: PLC Touch Screen, Frequency Transformer, Hall Switch

Introduction：

Cutting Knife-Driven:

Driven by One Single Motor, Controlled by Frequency Transformer, Cutting Speed is Based on the Material.

Material Transportation:

Driven by One Single Servo Motor, Able to Customize Transportation Speed Base on Demands

Application: Meat, Bones Slicing, Dicing
