Backsaver / Van Oirschot Group

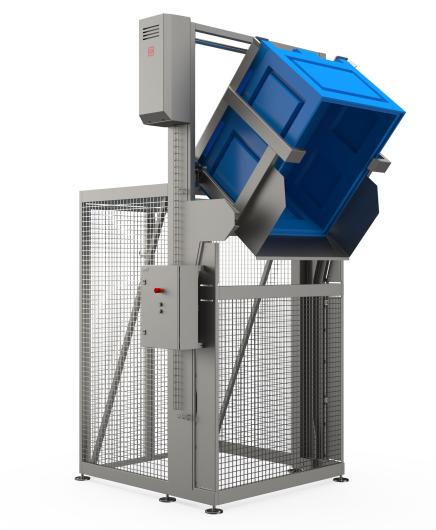

Nimo-KG SK 800 MK2 Double column lift

Nimo-KG SK 800 MK2 Double column lift

Backsaver / Van Oirschot Group

Description

Overview

The SK 800 MK2 lifting and tipping device, commonly referred to as a twin column lift, is a versatile solution primarily used within the food industry. Its primary function is to elevate and tilt standard 600-liter EURO-containers, facilitating various processes such as forming, filling, grinding, mixing, and more. This adaptable twin column lift can also be tailored to accommodate barrels, different large containers, or other specific industrial applications, extending its utility to sectors like chemicals, pharmaceuticals, and engineering workshops.

Designed with meticulous attention to ergonomic principles, the twin column lift prioritizes operator safety while enhancing overall production efficiency. Its ergonomic features minimize the risk of personnel injury, aligning with industry standards and best practices.

Design and function

The twin column lift comprises two main components: the main stand and the lifting frame. The stand consists of two columns constructed from plates and fully welded single hollow sections. The bottom frame is equipped with four feet for securing the machine to the floor. The lifting frame is primarily constructed from fully welded single hollow sections and moves within the columns. Vertical motion is achieved through an electro-mechanical system using either a roller chain or belt.

To ensure safety, the container to be tipped is positioned within the lifting frame, which features a retaining mechanism to secure the container in place. The twin column lift is driven by an electric gearbox motor with a brake. Operation is controlled via electrical push buttons, including an emergency stop button. The tipping process begins when the upper follower rollers of the lifting frame engage with the tipping curves, while simultaneously, the lower rollers continue to ascend within the columns.

For safety measures, the machine is equipped with a safety cage featuring electrically interlocked doors to prevent accidents.

General Points

The twin column lift is designed in accordance with the specifications of food industry authorities and complies with CE norms: 2006/42/EC, 2006/95/EC, and 2004/108/EC, as confirmed in the declaration of conformity enclosed in the CE documentation.

The twin column lift can be supplied in various standard designs at an additional cost:

  • Low-built model (SK 800 MK-L)
  • Mobile on wheels or able to move sideways on a rail (SK 800 MK2-T)
  • Equipped with a combined lifting frame for buggies
  • Features a locking device for special containers or varying container heights
  • Suitable for heavier loads (maximum 1500 kgs)
  • Offers an individually designed chute
  • For technical data and dimensions, please refer to separate manual sheets.
  • Special offers are available upon request.

Technical Specifications

The key components of the twin column lift are expertly crafted from stainless steel (AISI 304, SS2333) that has undergone a thorough glass-bead blasting process. For stability, the bottom frame features four stainless steel feet (M20) that offer adjustable height (+25/-15 mm) and secure fastening to the floor using M16 bolts.
Ensuring safety during operation, the twin column lift is equipped with a protective cage that incorporates electrically interlocked doors, further reinforced by a spring-loaded locking mechanism for mechanical security.

Within the lift’s columns, the lifting frame glides smoothly on four high-density plastic wheels. The transmission system employs two 1″ Simplex roller chains constructed from robust steel (BS 228-1962, SMS 1613) or a belt. These chains are firmly attached to the lifting frame using stainless steel link components. (As an optional feature, both the chain and chain wheels can be manufactured from stainless steel.)

Safety features include electro-mechanical limit switches to halt vertical motion, along with a top-position safety switch. The control panel boasts electrical buttons for seamless up and down motion control, complete with an emergency stop function.

Specifications:

  • Motor Type: 90
  • Power: 1.5 kW
  • Speed: 1400 rpm
  • Gear Design: Foot B3
  • Voltage / Control Voltage: 400/230 V, 50 Hz / AC 24 V, 50 Hz
  • Braking Torque: 25 Nm
  • Lifting Speed: 7.1 m/min
  • Operating Orientation: Right (left-hand design available as an option)
  • Maximum Lifting Capacity: 800 kg

More products by Backsaver / Van Oirschot Group

Backsaver CD Combo Bin Dumper

The Backsaver CD tipping machine is designed to empty heavy, extra-large plastic bins, combo bins, pallet crates, bulk boxes or octabins and other large containers. Equipped with a battery and twin hydraulic cylinders, this heavy-duty machine can tip bins of up to 1,500 kg / 3,500 lbs and up to 1,400 mm / 47.2″ high.

Health and enhanced productivity

This machine is designed to be installed at specific locations for emptying operations. When needed, it can still be occasionally relocated. A bin of product (meat, fish, vegetables, etc.) is loaded into the tipper with a pallet jack or forklift. The load is then tipped in a single smooth motion until the product starts to come out or even further to the maximum set angle. Because manual lifting, crouching and bending are no longer necessary, the risk of back pain, strain and injury is reduced. Healthy personnel are happier, more efficient and productive, and throughput is maximized.

Improved process: Perfect for product transfers and discharges

Backsavers are simple, easy-to-use machines that enhance production and reduce the risk of workplace injury. This machine is ideal whether you work at a table or on a process line. Independent controls on both sides of the machine are reachable regardless of its actual position, thus eliminating all the extra walking around the machine to operate it, reducing downtime and making it a very popular solution at food-processing facilities. It can be used to transfer products from cardboard bulk boxes to plastic bins. It can also be integrated into a process line to fill, for example, a screw conveyor’s hopper.

Powerful rechargeable batteries

Backsavers are powered by rechargeable batteries, so they can be used everywhere on the work floor regardless of the power-supply location. The batteries are suitable for operation in refrigerated areas and can be plugged in overnight for convenient charging. With fully charged batteries you can handle approximately 60 tons of products.

Operational safety: No forced lowering; light and sound for caution

Like other Backsavers, this machine is driven by twin hydraulic cylinders that use gravity for the lowering action. So, it’s very safe because it significantly reduces the risk that its moving parts might incur bodily injury. For even greater safety, it features an audible backup signal and a flashing LED beacon light that warn others about parts in motion, ensuring extra attention during operation.

Hygiene and food safety

Backsavers are developed especially for the food industry. They are safe to operate and suitable for direct contact with food products. These machines are stainless steel for easier cleanups and wash-downs making it possible to use power washers. CD has been engineered, designed and manufactured in the Netherlands since 2015.

Standard Features:

  • Twin hydraulic cylinders (1 ea. for lifting and tipping)
  • Backup sound alarm
  • LED flashing beacon light
  • Heavy-duty locking casters
  • Powerful rechargeable batteries
  • Independent controls on each side
  • Dead man’s (hold-to-run) buttons (Up/Down)

Available Options:

  • Tapered discharge chute / narrowed spout for improved product flow
  • Plug-in (400 V) instead of battery-powered for stationary use
  • Adjustable, swinging or customized retaining bar for various bin sizes
  • Different max. tipping angles: 100 and 120 degrees

Specifications:

*Applicable to standard combo bins. For other bin sizes, please, feel free to contact us.

  • Approx. Dumping Height: 1,400 mm / 54.9" at 120 deg. 1,565 mm / 61.6" at 100 deg.
  • Tipping Angle: 0-120 deg.
  • Load Rating: 1,500 kg / 3,500 lbs
  • IP Rating: IP56 (limited dust ingress; strong water jets, any direction)
  • Power Source: 12-volt deep-cycle / semi-traction battery x 2
  • Approx. Machine Weight: 600 kg / 1,320 lbs
