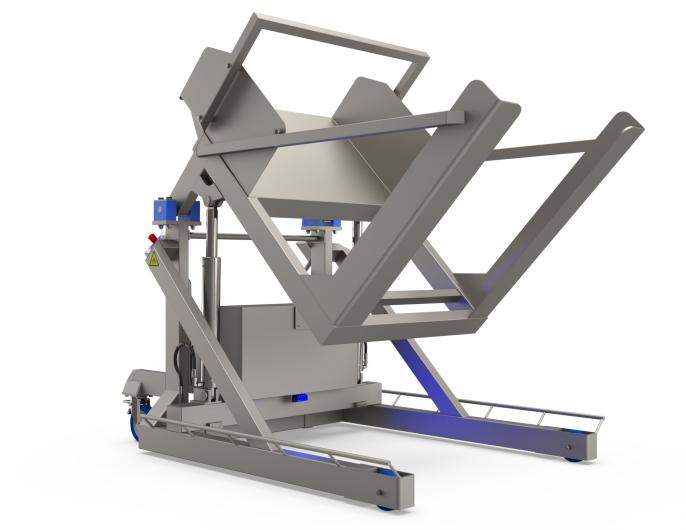

The Backsaver CD tipping machine is designed to empty heavy, extra-large plastic bins, combo bins, pallet crates, bulk boxes or octabins and other large containers. Equipped with a battery and twin hydraulic cylinders, this heavy-duty machine can tip bins of up to 1,500 kg / 3,500 lbs and up to 1,400 mm / 47.2″ high.

Health and enhanced productivity

This machine is designed to be installed at specific locations for emptying operations. When needed, it can still be occasionally relocated. A bin of product (meat, fish, vegetables, etc.) is loaded into the tipper with a pallet jack or forklift. The load is then tipped in a single smooth motion until the product starts to come out or even further to the maximum set angle. Because manual lifting, crouching and bending are no longer necessary, the risk of back pain, strain and injury is reduced. Healthy personnel are happier, more efficient and productive, and throughput is maximized.

Improved process: Perfect for product transfers and discharges

Backsavers are simple, easy-to-use machines that enhance production and reduce the risk of workplace injury. This machine is ideal whether you work at a table or on a process line. Independent controls on both sides of the machine are reachable regardless of its actual position, thus eliminating all the extra walking around the machine to operate it, reducing downtime and making it a very popular solution at food-processing facilities. It can be used to transfer products from cardboard bulk boxes to plastic bins. It can also be integrated into a process line to fill, for example, a screw conveyor’s hopper.

Powerful rechargeable batteries

Backsavers are powered by rechargeable batteries, so they can be used everywhere on the work floor regardless of the power-supply location. The batteries are suitable for operation in refrigerated areas and can be plugged in overnight for convenient charging. With fully charged batteries you can handle approximately 60 tons of products.

Operational safety: No forced lowering; light and sound for caution

Like other Backsavers, this machine is driven by twin hydraulic cylinders that use gravity for the lowering action. So, it’s very safe because it significantly reduces the risk that its moving parts might incur bodily injury. For even greater safety, it features an audible backup signal and a flashing LED beacon light that warn others about parts in motion, ensuring extra attention during operation.

Hygiene and food safety

Backsavers are developed especially for the food industry. They are safe to operate and suitable for direct contact with food products. These machines are stainless steel for easier cleanups and wash-downs making it possible to use power washers. CD has been engineered, designed and manufactured in the Netherlands since 2015.

Standard Features:

• Twin hydraulic cylinders (1 ea. for lifting and tipping)
• Backup sound alarm
• LED flashing beacon light
• Heavy-duty locking casters
• Powerful rechargeable batteries
• Independent controls on each side
• Dead man’s (hold-to-run) buttons (Up/Down)

Available Options:

• Tapered discharge chute / narrowed spout for improved product flow
• Plug-in (400 V) instead of battery-powered for stationary use
• Adjustable, swinging or customized retaining bar for various bin sizes
• Different max. tipping angles: 100 and 120 degrees

Specifications:

*Applicable to standard combo bins. For other bin sizes, please, feel free to contact us.

• Approx. Dumping Height: 1,400 mm / 54.9" at 120 deg. 1,565 mm / 61.6" at 100 deg.
• Tipping Angle: 0-120 deg.
• Load Rating: 1,500 kg / 3,500 lbs
• IP Rating: IP56 (limited dust ingress; strong water jets, any direction)
• Power Source: 12-volt deep-cycle / semi-traction battery x 2
• Approx. Machine Weight: 600 kg / 1,320 lbs
