For a wide range of applications

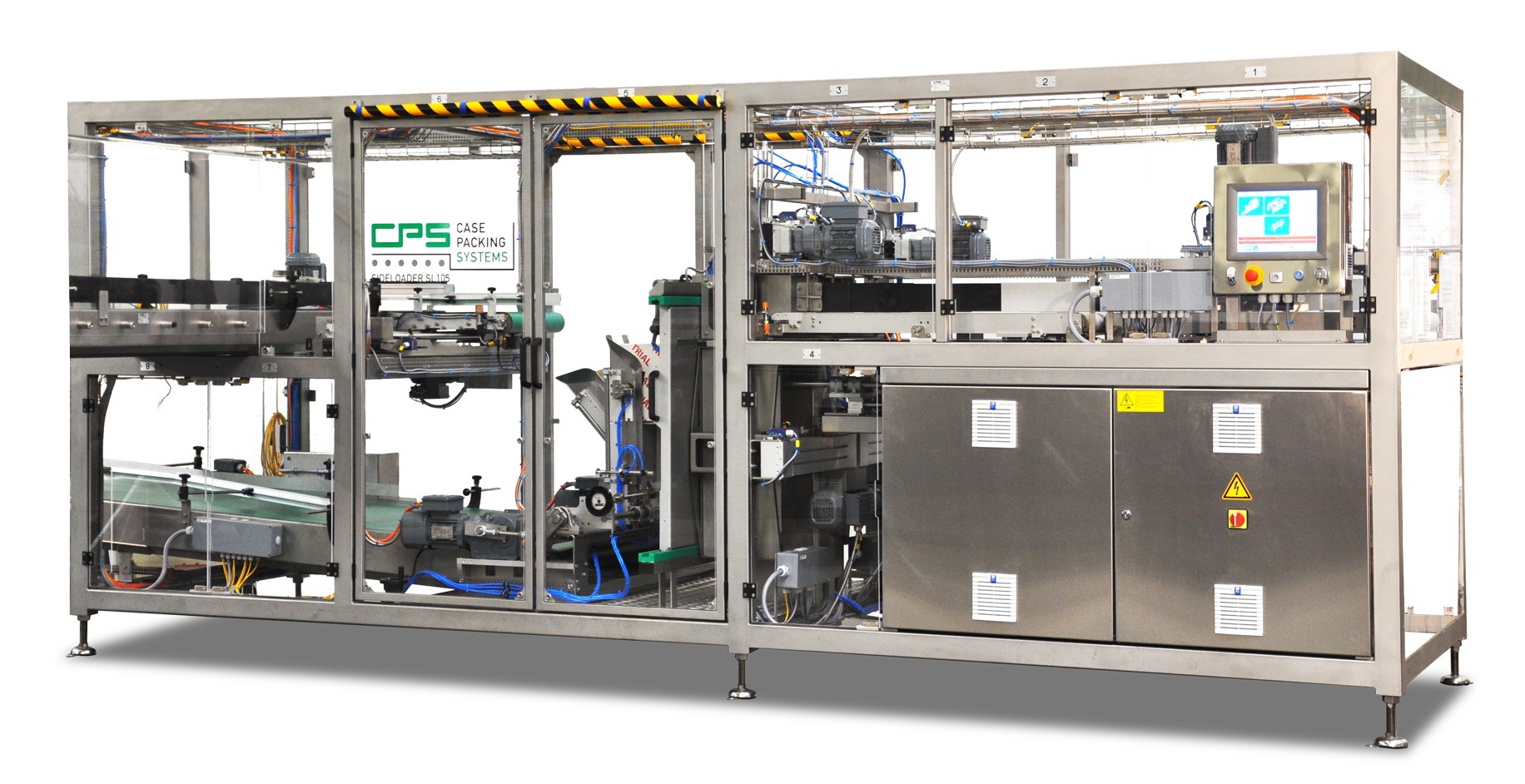

The CP 201 gravity case packer has been specifically developed for horizontally packing deep-frozen products in boxes at high speed, in combination with a highly compact footprint. Typical products include frozen French fries, vegetables, meat and fish. Our CP201 case packer is capable of greater kg/m3 packing performance than any other machine.

Features

• CPS can pack more kilograms of product/m3 performance than any other supplier
• Fully quality-monitored bag handling from the form fill seal machine to the case packer unit, and highly effective special vibration volume reduction techniques
• Fully menu-controlled and good accessibility for servicing

High-quality stainless steel and aluminium components

The CP 201 casepacker system provides for the positioning and the filling of bags into carton boxes in programmable patterns.2 vertical conveyor belts assure the correct centre line positioning of the bags for the following bag turning unit. This bag turning unit consists of 2 conveyor belts positioned parallel to each other which are running at variable speeds. After the bag turning unit the bags will be presented, turned or not, to the collect belt. On this frequency controlled collect belt a preset number of bags (can be set in the menu) can be accumulated (with or without partial overlap). This group of bags will then be introduced to the casepacker unit, which is equipped with pneumatic bomb doors and a patented bag in-feed unit. This bag in-feed unit is equipped with 2 vertical conveyor belts which are adjustable in width to reduce the volume of the passing bags during transfer to the bomb doors of the casepacker. The vertical belts can also move left or right and can in this way deposit rows of bags in different positions on the bomb doors in order to pack more rows per layer in the carton. The casepacker is completely menu controlled for instant and easy setting of all preset bag and carton sizes and packing patterns.

• Length = 3300 mm.
• Width = 1160 mm (2650 doors open)
• Height = 1950 mm (2320 hoods open)
• Max. bags per row 4.
• Max. bags per carton 99

Technical specifications

• Capacity 140 bags/minute(with a minimum of three bags per collect)
• Machine housing stainless steel / aluminium
• Controls IPC all settings menu controlled
• Operator interface
• Colour touch screen TFT with integrated PC and modem facility
• Control panel fitted on a swivel arm

For simple applications

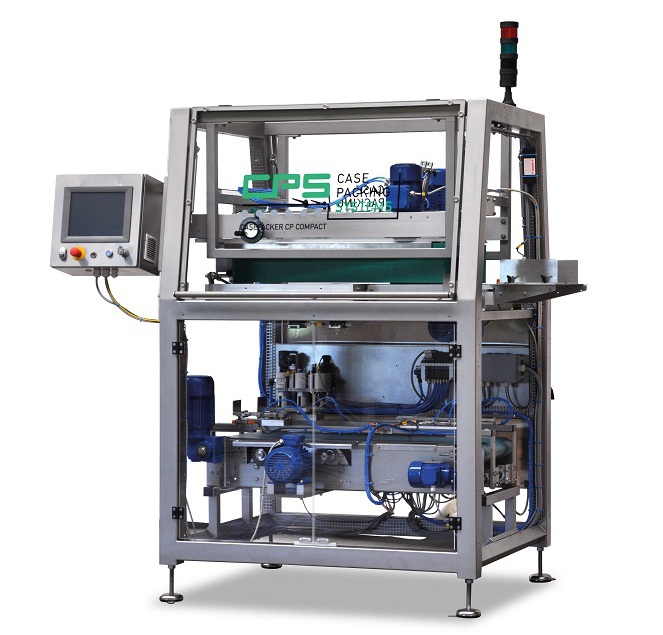

The CP Compact is a simple gravity case packer and suitable for packing large flexible bags horizontally in boxes or crates. The Compact case packer is an optimum solution for bread and animal feed products and other products with simple packing patterns.

Features:

• Simple engineering and a small footprint
• High-quality stainless steel and aluminium components
• Many options available in order to engineer a customised solution

The CP Compact casepacker system provides for the positioning and the filling of bags into carton boxes in programmable patterns. At the infeed the bags can be turned and will be presented, turned or not, to the collect belt. On this frequency controlled collect belt a preset number of bags (can be set in the menu) can be accumulated (with or without partial overlap). This group of bags will then be introduced to the casepacker unit, which is equipped with pneumatic bomb doors and a patented bag in-feed unit. The casepacker is completely menu controlled for instant and easy setting of all preset bag and carton sizes and packing patterns.


Technical specifications:

• Capacity 140 bags/minute(with a minimum of three bags per collect)
• Machine housing stainless steel / aluminium
• Controls IPC all settings menu controlled
• Operator interface Colour touch screenTFT with integrated PC and modem facility
• Control panel fitted on a swivel arm

The SL 105 side loader has been specially developed for applications requiring vertical packing of a wide variety of flexible bags, in a box or crate with a number of different packing patterns.

Features:

• High-speed packing
• Three dimensional product compaction, resulting in a highly compact final pack, that cannot be achieved by hand packing.
• Good accessibility for servicing
• Stainless steel and aluminium components
• Many options available in order to engineer a customised solution

This SL 105 Sideloader loads automatically pillow bags, block bottom, necktie bags and small boxes vertical into carton cases or display cartons. The bags will be transported laying flat into the cassette. In case of more then one row the in-feed conveyor will have a pivoting function to compose the rows. The bags are placed in the cassette which is lowering down one step. As soon as the required number of bags (which is set in the product-menu) is present the elevator cassette will be in bottom position for case loading. A motor driven pusher system will push the cassette load into the vertically placed carton behind. During carton change the bags will be accumulated on the in-feed conveyor. In case of a twin version of the SL 105 the 2nd elevator cassette will be filled with bags and the cycle will be repeated. A menu controlled case change unit ensures the supply of empty cases and the discharge of the filled cases.

For confectionery/sweets

The CP 301 case packer has been specially developed in order to pack small bags horizontally in boxes at high speed and handle a wide range of flexible bags containing sweets and snacks. When equipped with a simple additional option, the unit is also capable of laying block-base bags or doypacks horizontally in a head-to-toe pattern in the box.

Features:

• Up to 180 bags/minute in combination with a simple technology level, very small footprint and full menu control.
• The bags or the box are turned, depending on the specific application.
• A turning system has been developed for block-base bags and doypacks in order to allow head-to-toe packing.
• Good accessibility for servicing
• Stainless steel and aluminium components

The CP 301 system loads automatically bags into cases or crates. The bags are divided at the in-feed with a swivel conveyor and positioned on the retract conveyor. The retract conveyor placed the bags at the bomb doors. Overlap in length and width is possible to create a optimum products in the product carrier. The bomb doors are servo driven which means a quick and controlled movement. After opening of the bomb doors the products will be placed in the product carrier. Multiple layers can also be placed in the product carrier. The product carrier vibrates during loading (option), so that an optimum degree of filling will be reached. The product carrier can be turned for more packing patterns

Technical specifications

• Capacity 140 bags/minute(with a minimum of three bags per collect)
• Machine housing stainless steel / aluminium
• Controls IPC all settings menu controlled
• Operator interface
• Colour touch screen TFT with integrated PC and modem facility
• Control panel fitted on a swivel arm

The Pick & Place CLP case packer integrates a Pick&Place unit that picks and places MAP trays, flowpacked products, sausages and semi-flexible bags to allow horizontal packing in boxes, cardboard trays and crates.

Features:

• Product-friendly packing method, even suitable for stretch film
• High-speed packing capabilities based on simple engineering
• Small footprint and good accessibility for servicing
• Stainless steel and aluminium components
• Many options available in order to engineer a customised solution.

CLP Casepacker. A fast continuously packing machine for thermoformed trays which are used a lot in the fresh and meat industry. CPS Case Packing Systems can now also pack the different skin packs automatically in crates, cardboard trays or American folding boxes, in packing patterns as desired. With this solution, the last missing element in the whole logistic automation puzzle will be applied. The casepacker is designed after a long testing period in the market. This market knowledge has been taken into account in the design of the internal logistics of the customer, so that to customer desire the dish input/output and crate/box input/output an option is. The tailer made casepacker will improve the internal logistics of the packaging hall of the customer. The casepacker is small at the surface and easy in operation. Because of the simple structure and also the flexible availability, the casepacker is regained in a short time. The design is modular and is on the exhibition provided with a rotation system. All conceivable packing patterns are possible to fill the crate as profitable as possible. The basis in the development is the high flexibility, profitability and operation convenience. With this casepacker, CPS has again an important trump in hands as solution focussed returns improver for her customers.


Features:

• Product-friendly packing method, even suitable for stretch film
• High-speed packing capabilities based on simple engineering
• Small footprint and good accessibility for servicing
• Stainless steel and aluminium components
• Many options available in order to engineer a customised solution.

Overall dimensions Length: 3150 - 2300 mm / 124” - 90.5” Width: 1470mm / 57.7” Height: 2000mm / 78.7” Product infeed height 900 - 1200mm / 35.4 - 47.2” Case/Crate/Cardboard tray infeed- and outfeed height 450mm / 17.7” Electrical supply 3phase 400V + N + PE, 50Hz, 3.5kW, 16A Compressed air supply 660 Nl/min, 6bar (660 Nl/min, 90PSI) Shipping weight 1200kg, (3200lbs) Case - crate sizes Length: 300 - 600mm / 11,8" - 23.6” Width: 200 - 400mm / 7.8" - 15.8” Height: 100 - 300mm / 3,9" - 11.8” Capacity Up to 120 Products/min; Up to 20 cases - crates/min
