CEHUMA Automatic Thermoform Modified Atmosphere Packaging Machines are one of the most reliable machine range within it's class. It is quite frequently used in fresh meat, salami, sausages, cooked meat, sliced salami, whole chicken, chicken nuggets, chicken, schnitzel, poultry and so on... The machine is chain driven type which means the plastic film material forward movement is done by the gripper chain system. Further, CM series are suitable for processing of both the flexible and rigid plastic films up to a width of 600 mm and a thickness of 1200μm with a cycle speed of 5 - 12 per minute.

Technical Specifications

• Capacity (Cyc/min) | 5-12

• Web Width (mm) | 180-600

• Bottom Web Material | Flexible/Rigid

• Top Web Material | Pa+Pe/AL/Tyvek

• Machine length (mm) | 3500-9500

• Forming Depth (mm) | 60-150

• Energy Consumption (kW) | 8-38

• Electric Suppy (3x380V. 50 Hz)

• Air Pressure (Bar) | 6-8

• Cooling Water (C) | 10-16

CEHUMA YZ thermoformers are mainly for automatic filling and sealing applications and very often used for filling and sealing of water, juices, ketchup, mayo, honey, jam, chocolate paste, nut paste, cream cheese, coffee, milk, yogurt ... The machine is a cam driven machine which means the plastic film forward move is done by a mechanical cam system leading a very high output preformance up 35 cycles per minute.

Technical Specifications

• Capacity (Cyc/min) | 15-35

• Index (mm) | 70-200

• Web Width (mm) | 150-500

• Bottom Web Thickness (μm) | 550-1200

• Bottom Web Material | PVC/PET/PS/PP

• Top Web Material | AL+PET

• Machine Length (mm) | 5.500-11.000

• Energy Consumption (kW) | 8-25

• Electric Supply | 3 x 380V. 50 Hz.

• Air Pressure (Bar) | 6-8

• Cooling Water (C) | 10-16

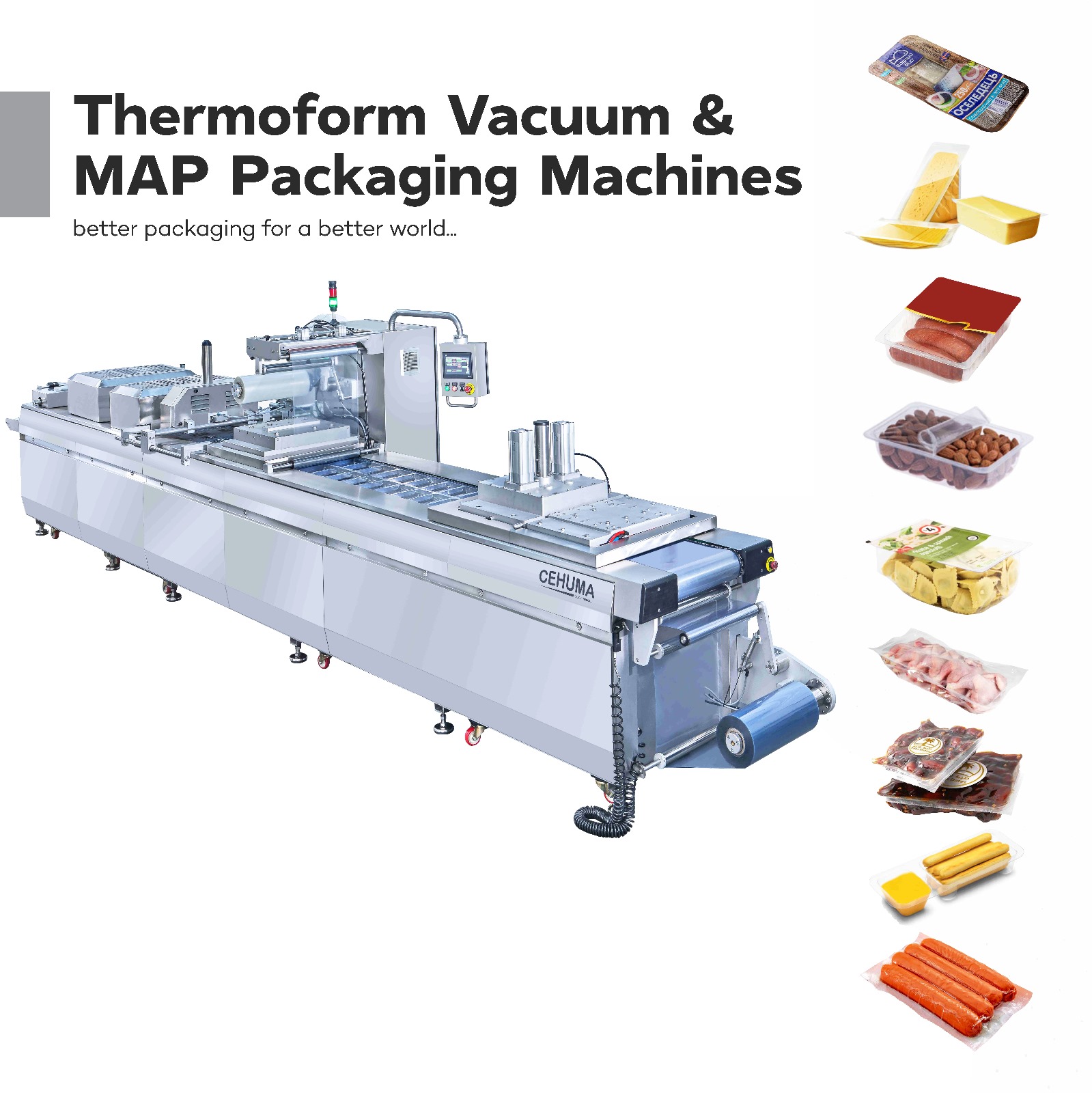

CEHUMA thermoform Vacuum and MAP (modified atmosphere packaging) machines are very often used packaging of cheese and dairy products, fresh meat and meat products (sausages, salami...), chicken and poultry products, seafood (schrimps, fish fillet, mussels...), dates, olives, fresh cut fruits and vegetables, bakery products, medical kits, consumer goods and similar products… both with flexible or rigid plastic films.

CEHUMA CM series thermoformers are suitable for automatic vacuum applications and very often used in fresh meat, salami, sausages, cooked meat, sliced salami, whole chicken, chicken nuggets, chicken, schnitzel, poultry and so on... The machine is chain driven type which means the plastic film material forward movement is done by the gripper chain system. Further, CM series are suitable for processing of both the flexible and rigid plastic films up to a width of 600 mm and a thickness of 1200μm with a cycle speed of 5 - 12 per minute.

Technical Specifications

• Capacity (Cyc/min) | 5-12

• Web Width (mm) | 180-600

• Bottom Web Material | Flexible/Rigid

• Top Web Material | Pa+Pe/AL/Tyvek

• Machine length (mm) | 3500-9500

• Forming Depth (mm) | 60-150

• Energy Consumption (kW) | 8-38

• Electric Suppy (3x380V. 50 Hz)

• Air Pressure (Bar) | 6-8

• Cooling Water (C) | 10-16

CEHUMA Automatic Thermoform Modified Atmosphere Packaging Machines are one of the most reliable machine range within it's class. It is quite frequently used in fresh meat, salami, sausages, cooked meat, sliced salami, whole chicken, chicken nuggets, chicken, schnitzel, poultry and so on... The machine is chain driven type which means the plastic film material forward movement is done by the gripper chain system. Further, CM series are suitable for processing of both the flexible and rigid plastic films up to a width of 600 mm and a thickness of 1200μm with a cycle speed of 5 - 12 per minute.

Technical Specifications

• Capacity (Cyc/min) | 5-12

• Web Width (mm) | 180-600

• Bottom Web Material | Flexible/Rigid

• Top Web Material | Pa+Pe/AL/Tyvek

• Machine length (mm) | 3500-9500

• Forming Depth (mm) | 60-150

• Energy Consumption (kW) | 8-38

• Electric Suppy (3x380V. 50 Hz)

• Air Pressure (Bar) | 6-8

• Cooling Water (C) | 10-16

CEHUMA YZ thermoformers are mainly for automatic filling and sealing applications and very often used for filling and sealing of water, juices, ketchup, mayo, honey, jam, chocolate paste, nut paste, cream cheese, coffee, milk, yogurt ... The machine is a cam driven machine which means the plastic film forward move is done by a mechanical cam system leading a very high output preformance up 35 cycles per minute.

Technical Specifications

• Capacity (Cyc/min) | 15-35

• Index (mm) | 70-200

• Web Width (mm) | 150-500

• Bottom Web Thickness (μm) | 550-1200

• Bottom Web Material | PVC/PET/PS/PP

• Top Web Material | AL+PET

• Machine Length (mm) | 5.500-11.000

• Energy Consumption (kW) | 8-25

• Electric Supply | 3 x 380V. 50 Hz.

• Air Pressure (Bar) | 6-8

• Cooling Water (C) | 10-16

CEHUMA thermoform Vacuum and MAP (modified atmosphere packaging) machines are very often used packaging of cheese and dairy products, fresh meat and meat products (sausages, salami...), chicken and poultry products, seafood (schrimps, fish fillet, mussels...), dates, olives, fresh cut fruits and vegetables, bakery products, medical kits, consumer goods and similar products… both with flexible or rigid plastic films.
