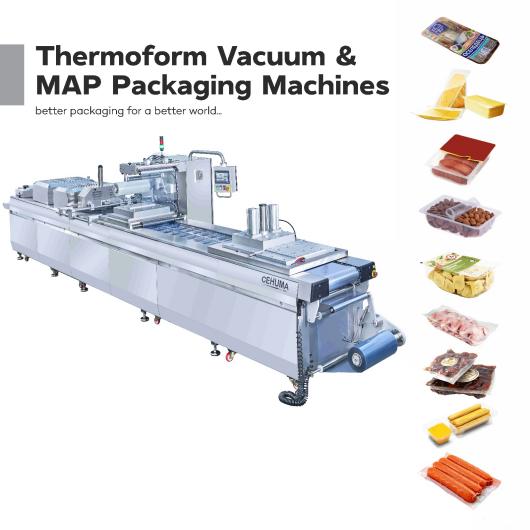

CEHUMA YZ thermoformers are mainly for automatic filling and sealing applications and very often used for filling and sealing of water, juices, ketchup, mayo, honey, jam, chocolate paste, nut paste, cream cheese, coffee, milk, yogurt ... The machine is a cam driven machine which means the plastic film forward move is done by a mechanical cam system leading a very high output preformance up 35 cycles per minute.

Technical Specifications

• Capacity (Cyc/min) | 15-35

• Index (mm) | 70-200

• Web Width (mm) | 150-500

• Bottom Web Thickness (μm) | 550-1200

• Bottom Web Material | PVC/PET/PS/PP

• Top Web Material | AL+PET

• Machine Length (mm) | 5.500-11.000

• Energy Consumption (kW) | 8-25

• Electric Supply | 3 x 380V. 50 Hz.

• Air Pressure (Bar) | 6-8

• Cooling Water (C) | 10-16
