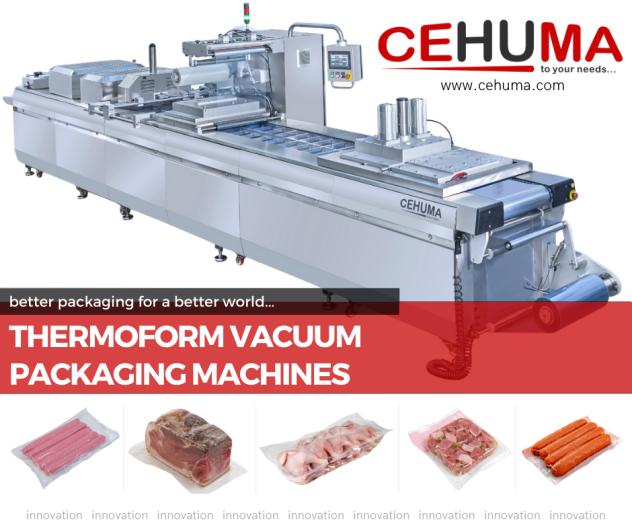

CEHUMA CM series thermoformers are suitable for automatic vacuum applications and very often used in fresh meat, salami, sausages, cooked meat, sliced salami, whole chicken, chicken nuggets, chicken, schnitzel, poultry and so on... The machine is chain driven type which means the plastic film material forward movement is done by the gripper chain system. Further, CM series are suitable for processing of both the flexible and rigid plastic films up to a width of 600 mm and a thickness of 1200μm with a cycle speed of 5 - 12 per minute.

Technical Specifications

• Capacity (Cyc/min) | 5-12

• Web Width (mm) | 180-600

• Bottom Web Material | Flexible/Rigid

• Top Web Material | Pa+Pe/AL/Tyvek

• Machine length (mm) | 3500-9500

• Forming Depth (mm) | 60-150

• Energy Consumption (kW) | 8-38

• Electric Suppy (3x380V. 50 Hz)

• Air Pressure (Bar) | 6-8

• Cooling Water (C) | 10-16
