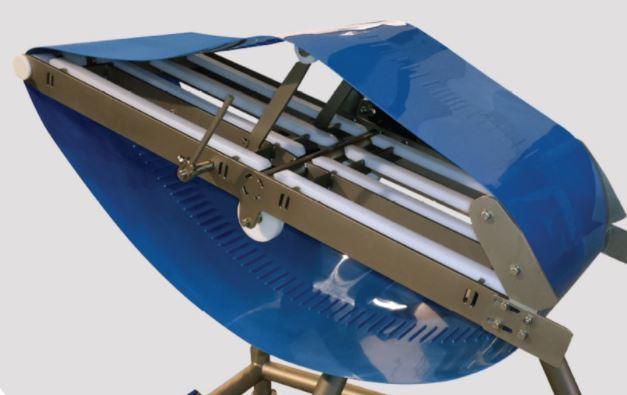

Volta Mini SuperDrive™

Volta Belting’s food-grade conveyor belting is manufactured from homogeneous Thermoplastic Elastomer (TPE) to give an excellent contact surface for raw, cooked and frozen foodstuffs. Available with textured nonstick or high-grip surfaces. The belts can be installed on-site to save valuable production time and reduce contamination of the surrounding environment to a minimum.

Advantages:

• No modules, links, hinges or crevices that harbor bacteria and deposit fragments into the food
• No seams or plies that fray and delaminate; no detachment of flights and guides common plied belts
• Easily cleaned in place in very short time
• Reduced cleaning costs (labor, water, chemicals, wastewater treatment) and downtime
• Reduced loss of food
• Consistent hygiene level over time
• Lower bacteria counts, cleaner product, less investment in conforming to standards, longer product shelf life; suited to HACCP
• Easy to weld or make repairs on site

Applications in the meat industry that benefit from Volta Belting’s homogeneous materials include primary processing of meat (cutting and deboning lines, waste conveyors and offal sorting), frozen food processing, minced meat lines and small goods production.
SuperDrive™ belts are recommended for applications that involve larger lines and heavy loads, including where accumulation or side loading is employed.

The RoundFlex™ Lace is a connector that allows you to easily open the belt by taking out the pin, clean or service the conveyor, reinstall the belt and close the lace with a new pin. Volta belts are renowned for their hygienic and homogeneous characteristics and therefore, do not require opening and closing on a regular basis – unlike modular belts.

Our new DR family belts have excellent hydrolysis resistant properties.
Specially recommended for applications where there are harsh cleaning and disinfecting protocols in place.

Hydrolysis resistance:
A. Increased resistance to a variety of oils, chemicals and humidity, extends belt life in many applications
B. Improved protection against sanitizing chemicals
C. Better resistance to fungal growth and less chance of pathogenic or allergenic residue

Top surface:
A. The semi-matt surface gives improved release properties
B. Scuff and scratch resistant
C. Recommended for visual applications where glare is not acceptable

Bottom surface:
A. In addition to the classic smooth bottom surface, the SuperDriveTM is also available with the new, hygienic,
fine embossed surface (coded FEDR)
B. Reduced friction which provides an increase in load capacity of 30% on steel slide beds and of 25% on UHMW wear strips
C. Less strain on the conveyor wear parts, including bearings and motors
D. Extends both belt and conveyor lifespan
E. Reduced adhesion to conveyor bed and wear strips
F. Smoother engagement with suitable stainless steel and PU molded drum motors
G. Improves performance for push applications
H. Reduces the suction effect caused by residual liquid, such as water after cleaning
I. Lowers amp draw during start up reducing strain on the belt and motor

Additional reductions in the cost of ownership.
Available with all Volta fabrications.
All our DR belts are FDA/EU approved.
Contribute to the implementation of the HACCP system.

The unique SuperDrive™ system is installed in thousands of industries and facilities worldwide. In fact, it is the only homogenous positive drivebelt with an installation track record of over 10 years of continuous use. SuperDrive™ is considered state of the art for hygiene, quick sanitation and savings in the cost of ownership.

Material Features

• Smooth, homogenous surface without crevices prevents bacteria and biofilm buildup
• No ply or edge fraying, compared with fabric belts; no hinges, moving parts and pins, compared with modular belts
• Simple, more hygienic conveyor construction; no heavy friction pulleys
• Reduced product waste
• Works with HACCP systems and standard hygiene/sanitation regimens (CIP)
• USDA/FDA cleared /3A Dairy/EC approved

Mechanical Benefits
Volta Belting’s SuperDrive™ system presents a homogeneous Thermoplastic Elastomer (TPE) positive drive conveyor belt with two parallel rows of extruded teeth on the underside of the belting material. The teeth engage in a toothed drive sprocket that drives the belt with little or no pretensioning to prevent off-tracking.

• Minimal pretension reduces elongation
• Reduces noise level to a minimum
• Lightweight belting cuts back on motor and energy usage
• Easy to install
• Strong base for heat-welded fabrications
• Long operating life

SuperDrive™ conveyor belting reduces sanitation time (less changeover time between shifts and more production time), reduces maintenance, reduces water and chemical expenditures and reduces electricity consumption. It lowers bacteria counts for a cleaner, healthier product with improved product shelf life.


Available in varying belt thicknesses and hardnesses: food-grade blue and beige (Shore 55D, 53D), a Metal Detectable (MD) version (Shore 53D) and a special Low Temperature (LT) version for deep freeze applications (Shore 95A, 46D).
