REICH’s innovative empty crate storage offers a space-saving storage for your empty crates and therefore a maximum of efficiency. With the usable ceiling height up to 8 metres you can achieve maximum storage capacity on minimum floor space.

• Capacity up to 2,000 crates / h
• Setup out of single track modules for individual adjustment to the capacity
• Flexible adjustment of the container cage to the storage room height
• Process of storage and removal in a mechanical flow
• Individual adjustment and external access due to programmable control.

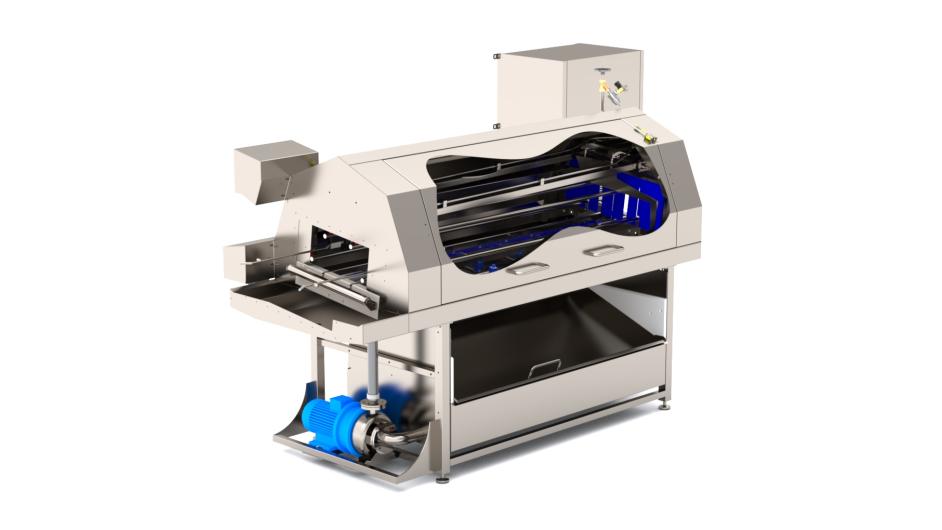

The Boxes will be cleaned and dryed perfectly from all sides based on the rotating of the boxes.
The innovative construction of the rotating assembly allows to clean different sizes of big boxes

• 1,000 x 1,200 mm
• 800 x 1,200 mm
• 1,100 x 1,100 mm

without any rebuilding.

• Space Saving
  highest productivity in confined space
• Heavy duty water blast
  For optimized water mechanical cleaning process
• Drying
  Integrated automatic dryer
• Hygienic
  Materials and shaping are confirm with newest hygienic standards
• Ecological water concept
  Waste water reutilization and supplementary decrease of water consumption

REICH’s crate washing plants were especially optimized for the meat industry. Hygienic design for an efficient cleaning process. Space-saving, noise-reduced and user-friendly.

• 250 up to 3,000 crates / h
• modular
• separate zones
• pressure cleaning
• inclined conveying

With the patented spin dryer SLT the Reich GmbH sets new standards in power consumption and drying results.

Conventional dryers processing crates with residual moisture of 6g up to 10g. The spin dryer SLT decreases the residual moisture down to 1g up to 2g per crate. Furthermore the power consumption is reduced down to 90% of conventional dryers. Another plus for the production is that only hygienic clean and dry crates are leaving the rotary dryer. Therefore the carrying of water into the production rooms is History. During the development of the spin dryer SLT , the reduction of the noise level was an important theme. With a noise level of maximum 75 db(A) the spin dryer SLT is not louder than a common household washing machine As a result of the high-tech lift mechanism, different heights and types of crates can be dried without modifications.

• Patended
  unique mechanic for optimal drying results
• Hygienic
  Only dry and hygienic clean crates leaving the dryer, based on the mechanical
  drying process.
• Drying result
  1g up to 2g residual moisture will be reached.
• Energy saving
  90% energy will be saved against conventional drying systems.
• Low noise level
  The maximum noise level is under 75 db (A).
• Multifunctional
  Runs with nearby all types of crates.

With the conveyor technology system 2.0, REICH meets all the hygienic and technological requirements of the food industry.
The sliding elements have a honeycomb-like structure. This porous constructive form allows optimal cleaning and therefore meets highest hygiene requirements.
Structure and material are chosen in order to minimize the sliding friction between the plastic link belt and the sliding element. This saves energy and costs.
The conveyor system meets all requirements. We always use the ideal plastic materials for the sliding elements (patent pending). Due to its good cleanability, the system is also ideal for open meat transport.
Every sliding element can be hooked in between the cross connections of the side cheeks optionally next or behind one another without any tools.

• Hygienic
  Optimal cleaning due to open and porous sliding elements
• Energy-saving
  Minimal sliding friction between the plastic link belt and the sliding elements
• Efficient
  Sliding elements are replaceable without any tools
• Optimized
  Flexible adaptability and easy expandable for further projects
• Versatile
  Can be used for many types of crates

REICH’s innovative empty crate storage offers a space-saving storage for your empty crates and therefore a maximum of efficiency. With the usable ceiling height up to 8 metres you can achieve maximum storage capacity on minimum floor space.

• Capacity up to 2,000 crates / h
• Setup out of single track modules for individual adjustment to the capacity
• Flexible adjustment of the container cage to the storage room height
• Process of storage and removal in a mechanical flow
• Individual adjustment and external access due to programmable control.

The Boxes will be cleaned and dryed perfectly from all sides based on the rotating of the boxes.
The innovative construction of the rotating assembly allows to clean different sizes of big boxes

• 1,000 x 1,200 mm
• 800 x 1,200 mm
• 1,100 x 1,100 mm

without any rebuilding.

• Space Saving
  highest productivity in confined space
• Heavy duty water blast
  For optimized water mechanical cleaning process
• Drying
  Integrated automatic dryer
• Hygienic
  Materials and shaping are confirm with newest hygienic standards
• Ecological water concept
  Waste water reutilization and supplementary decrease of water consumption

REICH’s crate washing plants were especially optimized for the meat industry. Hygienic design for an efficient cleaning process. Space-saving, noise-reduced and user-friendly.

• 250 up to 3,000 crates / h
• modular
• separate zones
• pressure cleaning
• inclined conveying
