Stuffing cart washer MWF

OPTIMIZATION OF WATER CONSUMPTION IN THE PROCESS OF WASHING AND RINSING TROLLEYS

The device consists of a washing and rinsing chamber and a loading and unloading device.

The washing water circulates in a filtered closed circuit, which, combined with the possibility of adjusting the amount of rinsing water, guarantees total water consumption at a level that satisfies the user.

• Acid-proof washing pump
• Water heating: electric, steam, electric-steam, gas and oil
• Spinning wash arm
• Automatic detergent dispenser
• Rotary filter (standard in MWF-2)
• A multi-stage security system for service during the process
• Loading and unloading mechanism
• Closed circuit with dirt filtration system
• Full control of rinse water consumption
• Steaming (option)
• Touch panel – fully programmable washing process broken down into individual operations
• The electronic detergent dosing system precisely controls the concentration of detergents during washing
• The use of a movable arm with washing nozzles enables achieving a capacity of up to 60 trolleys (MWF-1) and 90 trolleys (MWF-2) per hour, with very thorough washing of all surfaces of the trolley – also the bottom of the trolley and its wheels.

Cleanetic stacking and destacking systems are a response to the growing need for automation of production processes in order to optimize the use of washing devices, especially high hourly efficiency. The destacker and stacker are adapted to work with automatic washing lines of high efficiency. These systems, depending on the combination with the specific size of the washing line, allow for reducing the necessary service by up to 80%, constituting a significant element of cost savings.

Advantages:

• automation of production processes and reduction of service costs
• low electricity consumption
• stainless steel construction
• function of reversing and emptying containers of impurities

Cleanetic MPA-1200 high capacity automatic industrial container washers minimise consumption of media yet still maintain high wash quality.

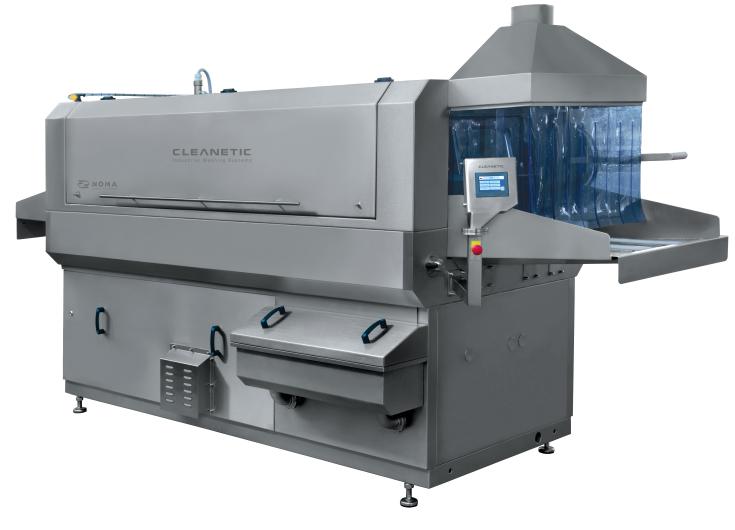

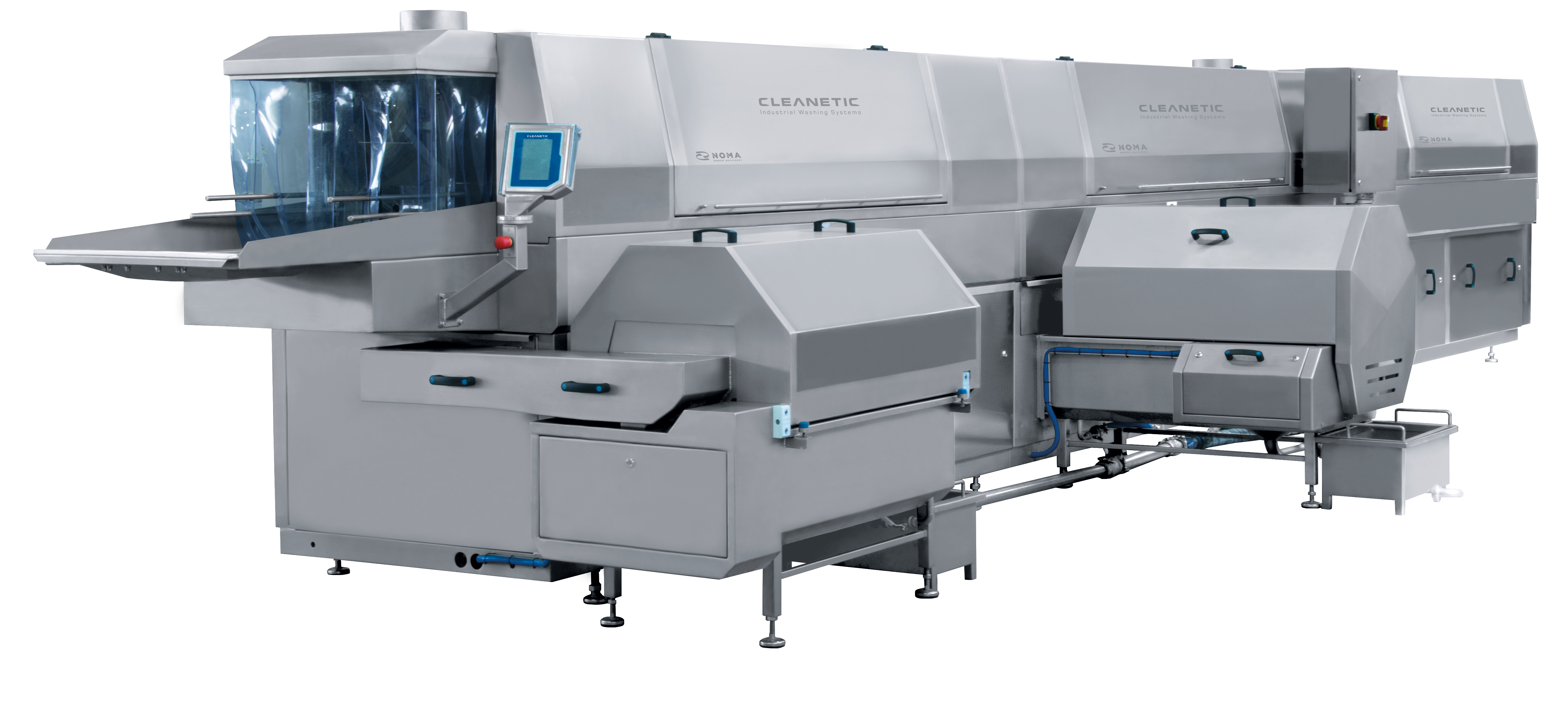

MPA-1200 tunnel washer is designed to wash containers of dimensions max. L x W x H 700x600x400 mm), of efficiency 1200 containers an hour. It provides effective washing and disinfection process with very low media consumption. Equipped with extremely efficient container blow-off system. The container washer is easily adaptable for use with an automatic warehouse of containers.

Construction advantages of MPA-1200

• work mode: pre-wash section, washing section, rinsing,steaming (optional) and air blow-off system
• plate link chain
• closed water circulation system with filtration system, self-cleaning rotating filter as an option
• output on plastic containers: 1200 per hour (dim. 400x600 mm)
• two water tanks with 450 l. capacity
• automatic chemical dosing pump with concentration display
• stainless steel nozzles with easy to disassemble washing manifolds, numbers of nozzles
• water heating systems: electric, steam, steam-electric,oil, gas, water or steam exchanger
• automatic water temperature control system
• gravitational, self-regulating pressure top rail
• air blow-off module with 8 ventilators (option)
• opening up the side guards
• guards protection against accidental opening

Touch screen control panel:

• easy to use colour touch panel
• switching the pump on and off with operation signaling
• turning the conveyor on and off together with smooth speed regulation and operation signaling
• washing temperature control system and temperature hysteresis with a clear display of set and current parameters
• automatic water level control and correction system
• a system that allows saving water in the device in the event of a temporary lack of container in the tunnel
• switching on the dispenser together with the indication of the detergent shortage
• safety switches
• container counter
• SCADA monitoring system (option)
• water consumption measurement (option)

Cleanetic Rotary label remover – LR is designed for removing paper labels from all sides of plastic containers type E2 (dimensions 600x400x200 mm), with a capacity of 450 to 1000 containers per hour depending on the configuration of the device.

• possibility to work as an independent device
• adapted to work with container washers and in lines with an automatic transport system
• label ripping off containers is adjusted according to the operating container washer
• filtration using a basket with a flow filter
• system of rotating high-pressure nozzles and specialized high-efficiency pumps
• transporter with a container turntable – the container makes a rotation / rotations during which the water jet rips labels
• turntable drive via servo motor
• high efficiency of label ripping at the level of 90% (depending on the type of glue, location of the label, degree of drying)
• clear and easy-to-use operating panel
