Cleanetic Rotary label remover – LR is designed for removing paper labels from all sides of plastic containers type E2 (dimensions 600x400x200 mm), with a capacity of 450 to 1000 containers per hour depending on the configuration of the device.

• possibility to work as an independent device
• adapted to work with container washers and in lines with an automatic transport system
• label ripping off containers is adjusted according to the operating container washer
• filtration using a basket with a flow filter
• system of rotating high-pressure nozzles and specialized high-efficiency pumps
• transporter with a container turntable – the container makes a rotation / rotations during which the water jet rips labels
• turntable drive via servo motor
• high efficiency of label ripping at the level of 90% (depending on the type of glue, location of the label, degree of drying)
• clear and easy-to-use operating panel

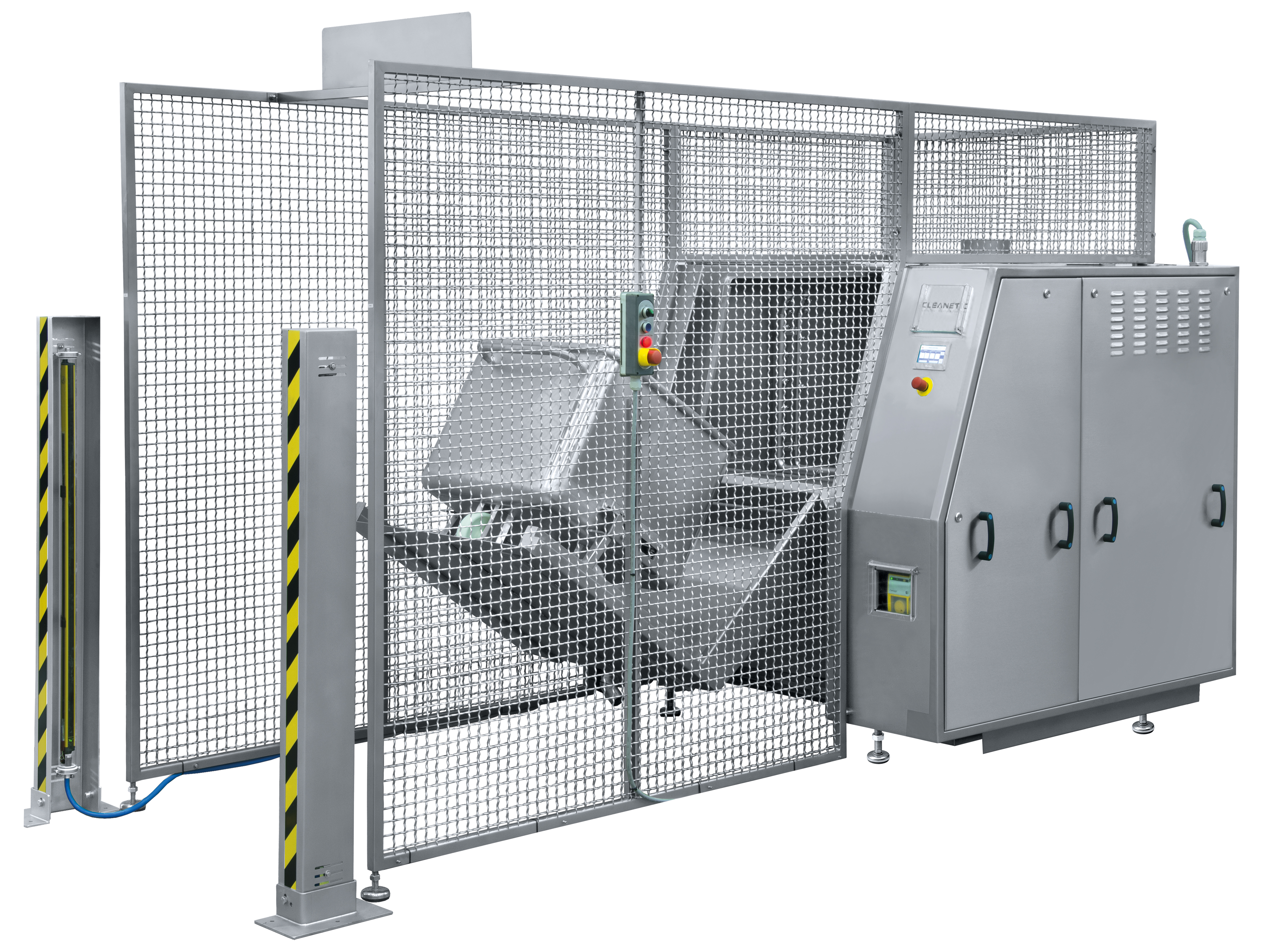

Stuffing cart washer MWF

OPTIMIZATION OF WATER CONSUMPTION IN THE PROCESS OF WASHING AND RINSING TROLLEYS

The device consists of a washing and rinsing chamber and a loading and unloading device.

The washing water circulates in a filtered closed circuit, which, combined with the possibility of adjusting the amount of rinsing water, guarantees total water consumption at a level that satisfies the user.

• Acid-proof washing pump
• Water heating: electric, steam, electric-steam, gas and oil
• Spinning wash arm
• Automatic detergent dispenser
• Rotary filter (standard in MWF-2)
• A multi-stage security system for service during the process
• Loading and unloading mechanism
• Closed circuit with dirt filtration system
• Full control of rinse water consumption
• Steaming (option)
• Touch panel – fully programmable washing process broken down into individual operations
• The electronic detergent dosing system precisely controls the concentration of detergents during washing
• The use of a movable arm with washing nozzles enables achieving a capacity of up to 60 trolleys (MWF-1) and 90 trolleys (MWF-2) per hour, with very thorough washing of all surfaces of the trolley – also the bottom of the trolley and its wheels.

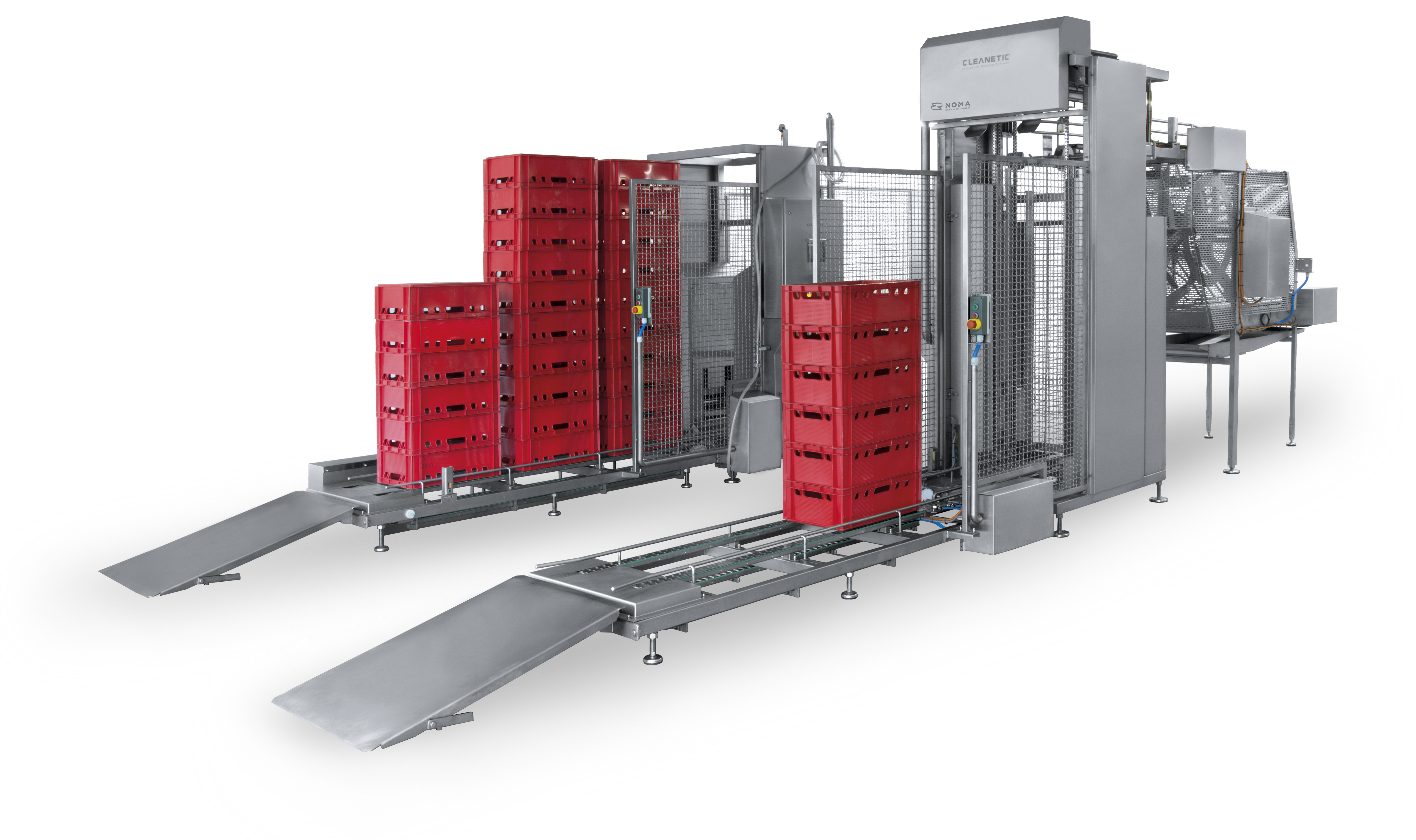

Cleanetic stacking and destacking systems are a response to the growing need for automation of production processes in order to optimize the use of washing devices, especially high hourly efficiency. The destacker and stacker are adapted to work with automatic washing lines of high efficiency. These systems, depending on the combination with the specific size of the washing line, allow for reducing the necessary service by up to 80%, constituting a significant element of cost savings.

Advantages:

• automation of production processes and reduction of service costs
• low electricity consumption
• stainless steel construction
• function of reversing and emptying containers of impurities

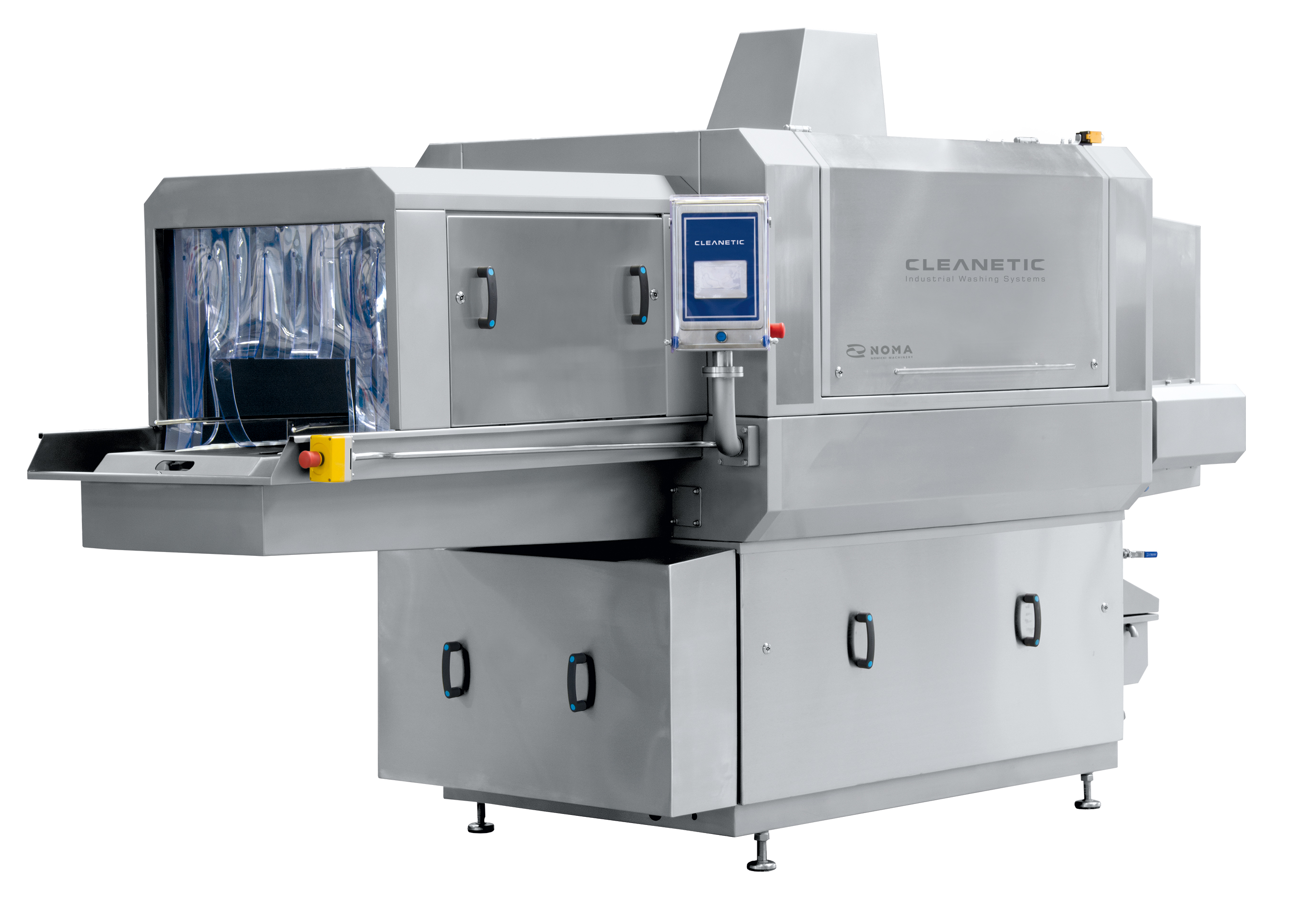

Design advantages:

• Central regulation of the width of the guides of the washed packages
• Washing liquid heating systems: electric, steam, electric-steam, gas and oil, hot water
• Mechanical conveyor for transporting containers with adjustable feed speed (chain conveyor)
• Touch operator panel
• Closed washing water circuit
• Stainless steel centrifugal pump
• Capacity: up to 600 containers per hour (in MPU-600)
• Regulation and distribution of rinsing water in terms of: rinsing intensity, water refreshment in the tank and/or overflow
• A system that enables saving water in the device in the event of a temporary lack of a container in the tunnel
• Detergent concentration and dosing system
• Possibility of extending the device with additional modules, i.e. pre-washing, blow-off
• Protecting covers against accidental opening

Cleanetic Rotary label remover – LR is designed for removing paper labels from all sides of plastic containers type E2 (dimensions 600x400x200 mm), with a capacity of 450 to 1000 containers per hour depending on the configuration of the device.

• possibility to work as an independent device
• adapted to work with container washers and in lines with an automatic transport system
• label ripping off containers is adjusted according to the operating container washer
• filtration using a basket with a flow filter
• system of rotating high-pressure nozzles and specialized high-efficiency pumps
• transporter with a container turntable – the container makes a rotation / rotations during which the water jet rips labels
• turntable drive via servo motor
• high efficiency of label ripping at the level of 90% (depending on the type of glue, location of the label, degree of drying)
• clear and easy-to-use operating panel

Stuffing cart washer MWF

OPTIMIZATION OF WATER CONSUMPTION IN THE PROCESS OF WASHING AND RINSING TROLLEYS

The device consists of a washing and rinsing chamber and a loading and unloading device.

The washing water circulates in a filtered closed circuit, which, combined with the possibility of adjusting the amount of rinsing water, guarantees total water consumption at a level that satisfies the user.

• Acid-proof washing pump
• Water heating: electric, steam, electric-steam, gas and oil
• Spinning wash arm
• Automatic detergent dispenser
• Rotary filter (standard in MWF-2)
• A multi-stage security system for service during the process
• Loading and unloading mechanism
• Closed circuit with dirt filtration system
• Full control of rinse water consumption
• Steaming (option)
• Touch panel – fully programmable washing process broken down into individual operations
• The electronic detergent dosing system precisely controls the concentration of detergents during washing
• The use of a movable arm with washing nozzles enables achieving a capacity of up to 60 trolleys (MWF-1) and 90 trolleys (MWF-2) per hour, with very thorough washing of all surfaces of the trolley – also the bottom of the trolley and its wheels.

Cleanetic stacking and destacking systems are a response to the growing need for automation of production processes in order to optimize the use of washing devices, especially high hourly efficiency. The destacker and stacker are adapted to work with automatic washing lines of high efficiency. These systems, depending on the combination with the specific size of the washing line, allow for reducing the necessary service by up to 80%, constituting a significant element of cost savings.

Advantages:

• automation of production processes and reduction of service costs
• low electricity consumption
• stainless steel construction
• function of reversing and emptying containers of impurities
