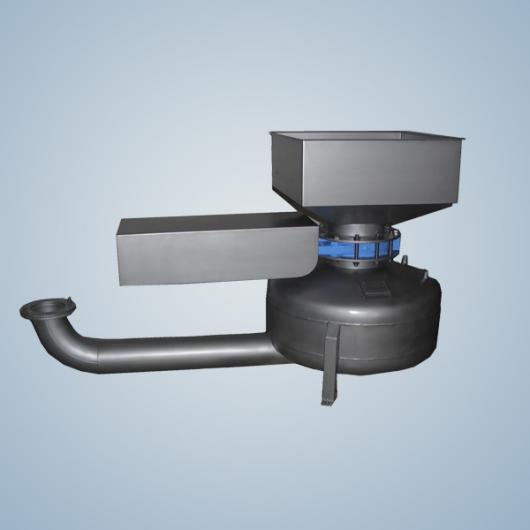

The Gut Shredder machine are specially to clean intestines intended for grease.
Reduce the sewage weight. It's used for beef, sheep, pork and others.

- Sewages reduction until 70%.
- Made of stainless-steel.
- Resistant blades mounted on the internal plate.
- Pneumatic unloading with automatic cycle.
- Cycle timing available to be set.
- Electric panel included.
- Fluid needed; Steam and cold water.

Model:               P155                       P555                          P1055
Production:       900 Kg/h                1800 Kg/h                 3000 Kg/h
Power:               3,0 Kw                    7,5 Kw                       15,0 Kw
Tension:            240/400 V               400/690 V                 400/690 V
Dimensions:      800x1200x1250      1800x1500x1200      2000x1600x1700 mm
Weight:             300 Kg                    600 Kg                      900 Kg

Web link:

https://www.torrassl.com/mac/gut-shredder/

Video link:

https://www.torrassl.com/beef-gut-shredder/

The Burner conveyor machine are specially to burn the hair of differents parts of animal like ears, face, legs ... It's used for beef, sheep, pork and others.

- Made of stainless-steel.
- Designed for process meat with hair.
- Chain of drag without welds.
- Speed variation.
- Chain cooled by water.
- Operating on natural gas or propane.
- Burning in stainless steel with safety valve.
- Electric panel included.

Model:                                TX2000

Production:                          500 Kg/h
Power:                                  0,25 Kw
Tension:                                240/400 V
Dimensions:                         480x2050x1700mm
Cold water consumption:    0,55m³/h
Gas pressure:                       2,5 bar
Gas consumption:                9 m³/h
Weight:                                100 Kg

Web link:

https://www.torrassl.com/mac/face-and-ears-burner-conveyor/

Video link:

https://www.torrassl.com/cattle-burner-conveyor/

The Legs dehairing machine are specially to remove feet hair throught scalding. It's used for beef, sheep, pork and others.

- Made of stainless-steel.
- Pneumatic unloading with automatic cycle.
- Cycle timing available to be set.
- Electric panel included.
- Can be combined with the loading lift.

- Fluid needed: Water at 65ºC


Model:                    P100 R                       P500

Prod. beef:            ---                            50 feet/20min
Prod. pork:           200 feet/15min         400 feet/15min
Prod. sheep:         300 feet/30min         600 feet/30min
Power:                  3,0 Kw                       7,5 Kw
Tension:                240/400 V                 400/690 V
Water consum:    1,6 m³/h                    1,8 m³/h
Dimensions:         800x800x1000          1600x1200x1200
Weight:                275 Kg                       600 Kg


Model:                    P1000                       P1500

Prod. beef:            80 feet/20min          160 feet/20min
Prod. pork:           800 feet/15min         1500 feet/15min
Prod. sheep:         1500 feet/30min       2000 feet/30min
Power:                  15,0 Kw                      20,0 Kw
Tension:                400/690 V                 400/690 V
Water consum:     2,0 m³/h                    2,4 m³/h
Dimensions:         1900x1400x1200       2200x1600x1400
Weight:                900 Kg                       1300 Kg


Web link:

https://www.torrassl.com/mac/dehairing-machine-for-feet/


Video link:

https://www.torrassl.com/cattle-legs-dehairing-hoof-remover/

https://www.torrassl.com/sheep-legs-dehairing/

https://www.torrassl.com/pork-trotters-dehairing/

The BMI or BCI Loading arm machine are specially to facilitate the meat loading and unloading. It's used for beef, sheep, pork and others.

- Made of stainless-steel.
- Exclusive fixation by its base of 400x400mm.
- Possibility of different types from subjection.
- Electric panel included.

Model:            BMI                 BCI

Capacity:        300 Kg            180 Kg
Power:            1,5 Kw             0,8 Kw
Tension:          240/400 V      24 V DC
Length max.:   2900 mm       2200 mm
Height max.:   2700 mm        2150 mm
Height min.:   1100 mm        500 mm
Weight:          300 Kg            80 Kg

Web link:

https://www.torrassl.com/mac/loading-arm/

https://www.torrassl.com/mac/truck-loading-arm/

Video link:

https://www.torrassl.com/bmi-loading-arm/

https://www.torrassl.com/loading-arm-pork-bmi/
