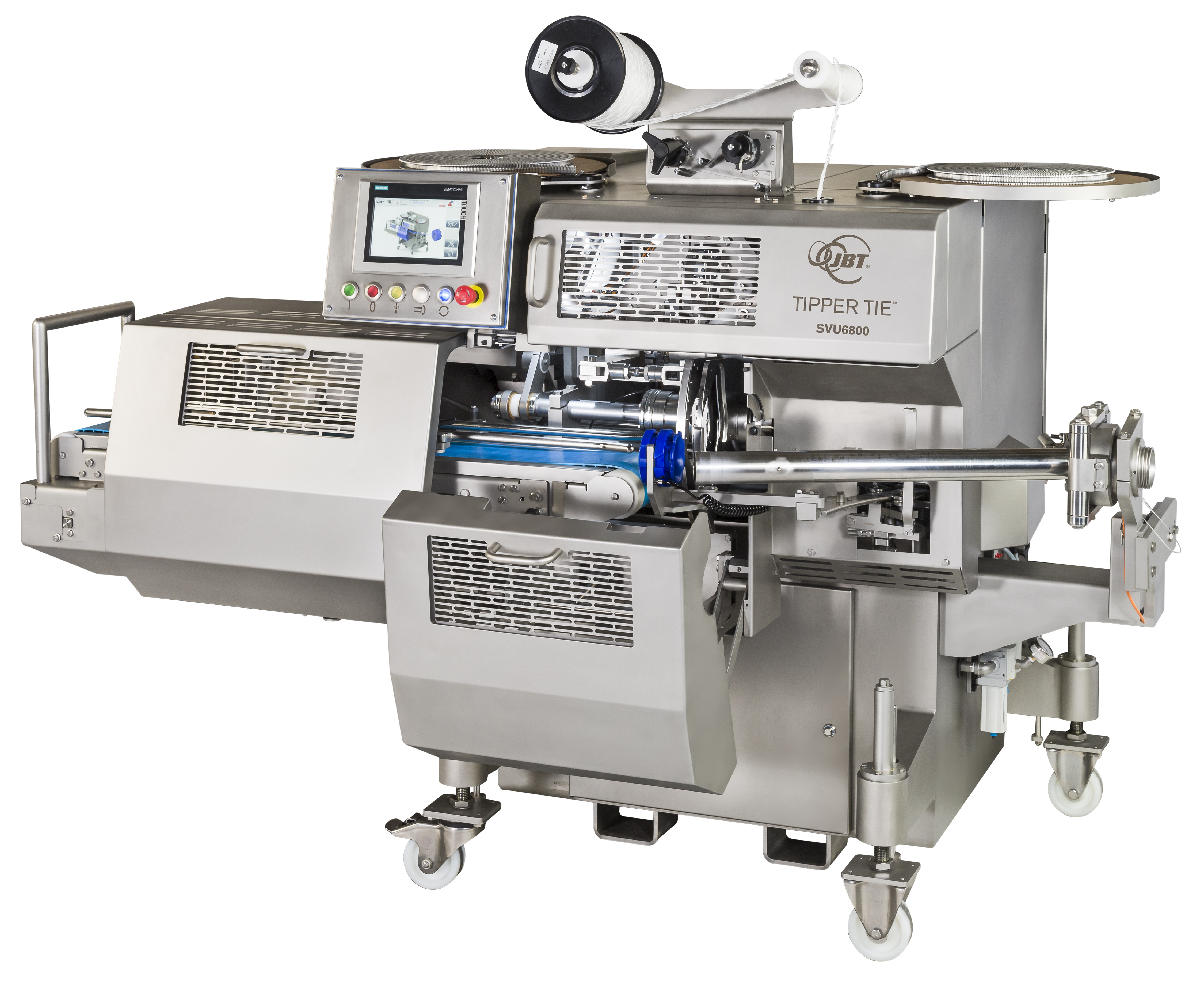

SVU6800
Description
The new SVU6800 is the culmination of years of success with the RS line of high-performance automated double clippers. The SVU6800 is designed for versatility and dependability and is the ideal clipper machine for difficult to run whole muscle and large products, heavy hung smoked or dried sausages, and salami.
All known casings and nettings are accommodated including difficult to run spiced casings. The SVU6800 is also compatible with every pumping system on the market. From meat and poultry to dairy products and even commercial explosives, the SVU6800 can produce any product within the specified range.
By benchmarking the SVU6800 for versatility and power, and leveraging the efficient mechanical design of the SV4800 and DCSV5000, TIPPER TIE has raised the bar for large clipping machines.
The SVU6800 can accommodate products in a range from 50-200mm in diameter and can be equipped with an optional slack-fill for up to 300mm of additional air-free overspreading. The SVU6800 is fast with a start-stop speed of up to 65 pieces/minute.
The clip closing system of the SVU6800 has a simulated cushion function for sensitive casings and an overload protection to prevent machine damage in the event of improper operation. The SVU6800 utilizes either the exceptionally strong ZR400 series clips (providing security for mid-sized to large products and the thickest casings) OR it can be equipped to use the E400 series clip (the ideal clip for mid-sized and large heavy hung products).
The available looper is capable of achieving 45 loops per minute and can be set up as either a first tie side or second tie side to accommodate any floor layout. A typical clipper clips only one string of loop (loop first) but the SVU6800 can hang heavier products by utilizing the BF series loops available in 3 and 4 ply configurations and the knot first loop application under the clip.
The optional PRK 2 horn turret is another productivity-enhancing option. The parallel turret will significantly reduce the time it takes to change casing increasing daily throughput.
JBT TIPPER TIE provides the complete system for clip packaging: machines, clips, loops, and labels. Combined with worldwide support and service, customers profit from many hours of safe, uninterrupted production.
For more information, go to https://tippertie.com/
