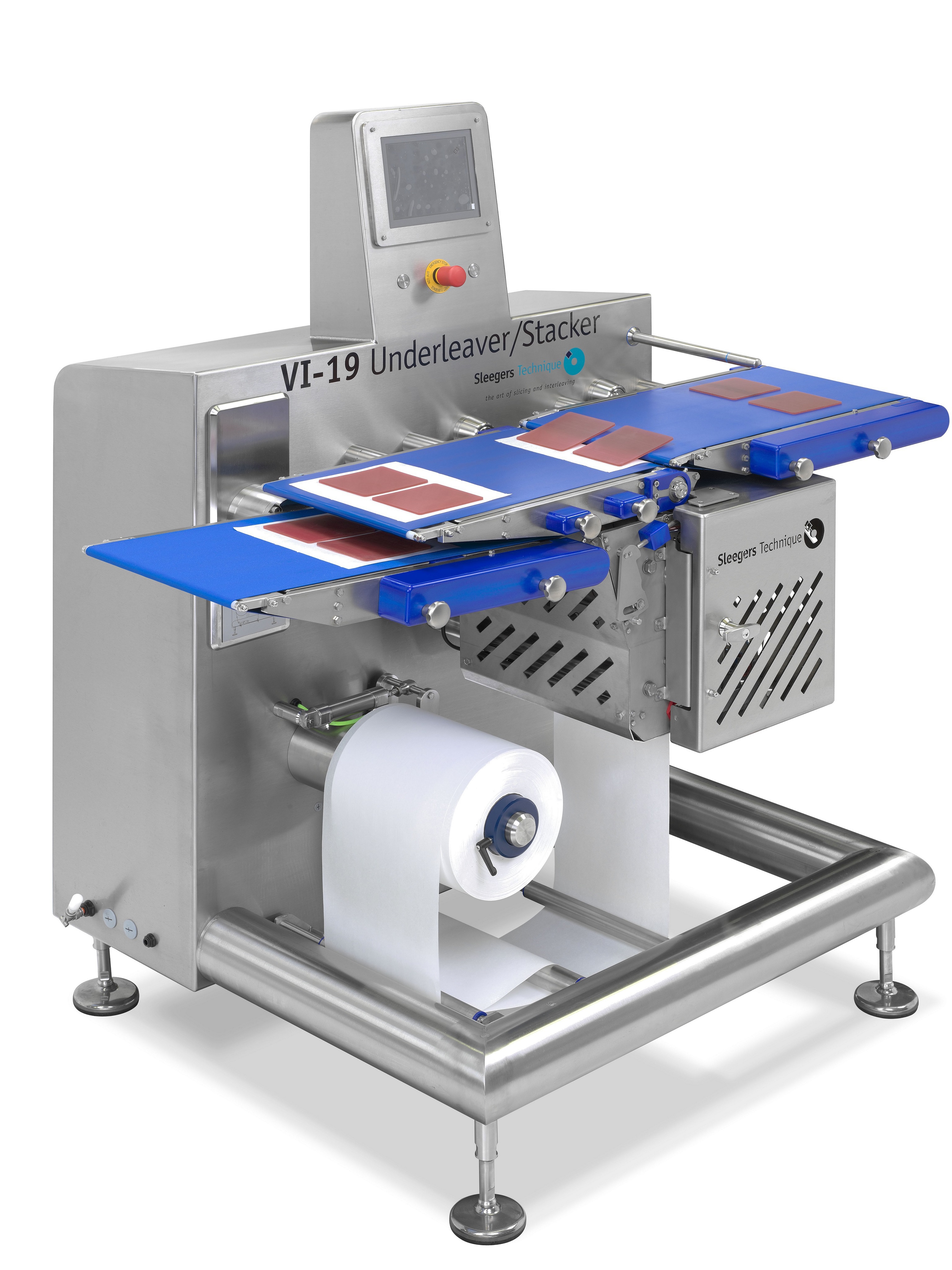

The VI-19 underleaver / stacker is a high speed underleave system that supports a wide range of products and also a wide range of film and paper types for different applications. The servo controls of this machine guarantee fast and accurate results. Settings can easily be changed using the large touch screen operation panel, the user friendly interface supports multiple languages for optimal operating convenience. Due to its modular design the machine can be disassembled very fast and easy for maintenance and cleaning. The compact footprint of the VI-19 / 300 underleaver makes it very easy to integrate in new and existing production lines.

Specs

• Large touch screen operation panel
• Multi-language, user friendly interface
• Hygienic, modular, solid
  stainless steel construction
• Servo driven
  Compact footprint

Speed
Up to 300 items / min
(Product type and size depending)

Stacking speed
Up to 50 items / min
(Product type and size depending)

Paper dimensions
Width: 80 – 300mm
Length: 65 -1000mm

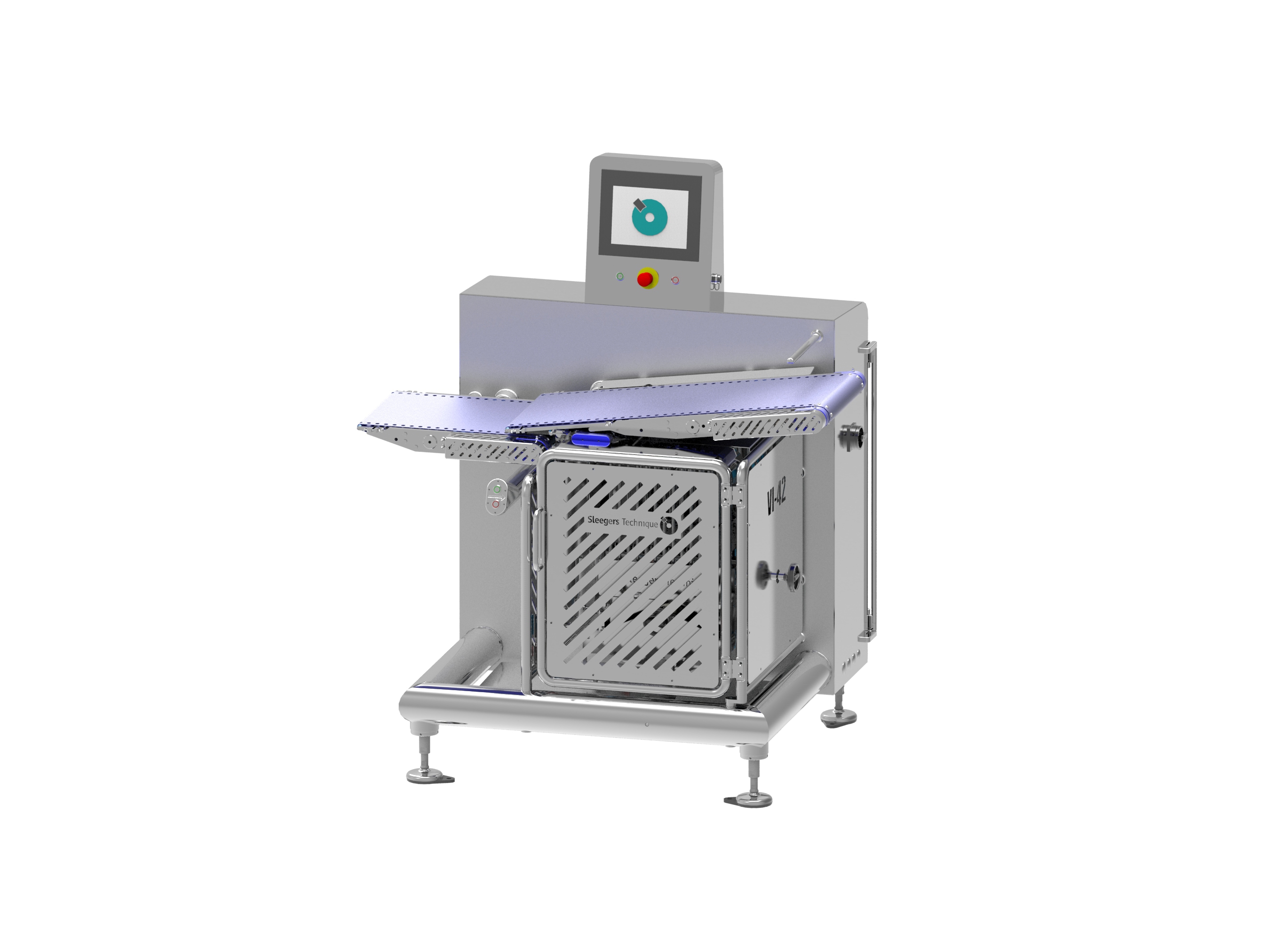

High speed, accuracy and reliability, these terms can be used to describe the VI-42 Card Board Feeder. This machine is used to feed cards and l-boards in different shapes, materials and thicknesses and place them under your products. The complete servo driven system is fast, accurate, reliable and guarantees accurate and constant results. The user friendly interface makes it easy to switch between recipes, change parameters and see your production history. This machine is developed with an eye on hygiene, operation and maintenance, it can be cleaned in just 3 minutes and with standard IP65 classification suitable for cold and wet environments. This machine is able to communicate with any other machine and can easily be integrate in new or existing production lines.

Specs

• Single card reservoir
• Touchscreen with multi-language selection
• User friendly interface
• Hygienic design
• Servo driven
• Compact footprint

Speed
Max. 90 items/minute
(Product type and size depending)

Cardboard dimensions
Width: 300mm
Length: 320mm

Options

• Custom conveyor configuration
• Belt scrapers
• Drip trays
• Empty reservoir warning
• Multiple reservoirs

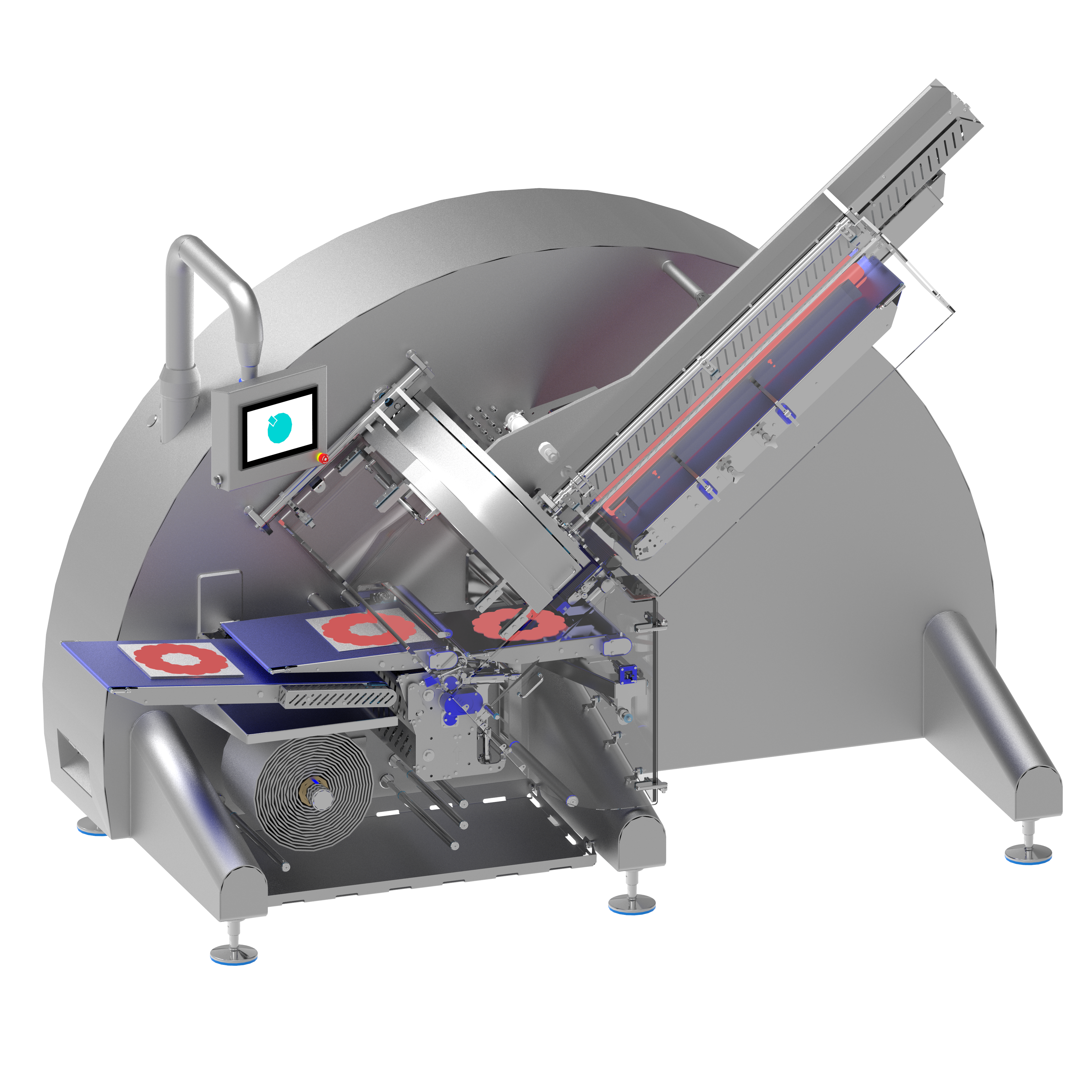

The revolutionary slicer is here!
Powerful, hygienic, simple and very efficient.
This is the best summary of our new slicing machine.

Standard functions such as an X-Y variety table, automatic loading and a built-in underleaver, but can also be expanded further due to our modular construction method.

Come and admire this showpiece at our stand, or even better, schedule an appointment at our Experience Center!

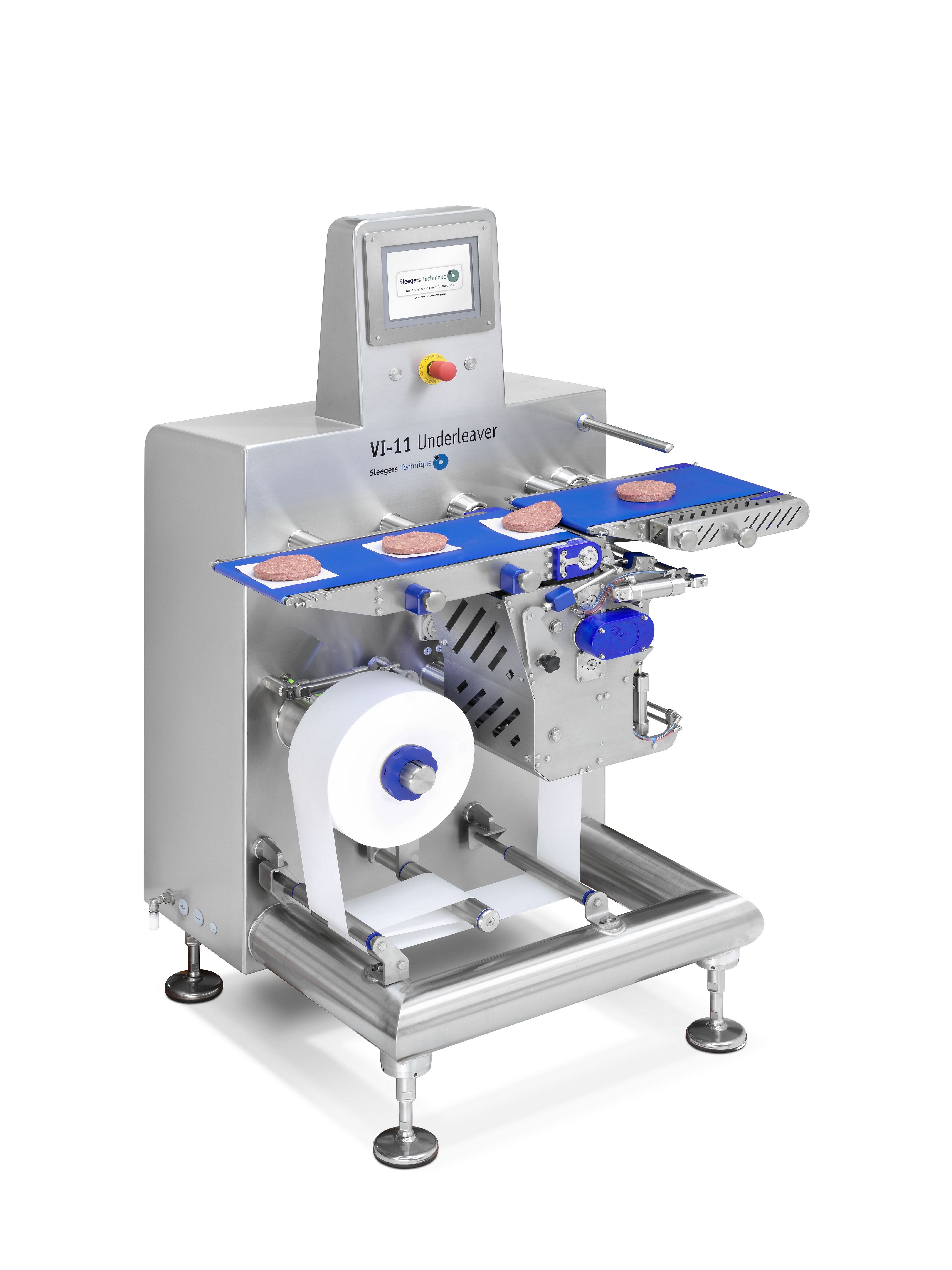

The VI-11_200 is the smallest underleaver in the VI-11 series with a belt width of 200mm. This machine can be used for many different types of paper, foil and meat pad. The complete servo driven system is fast, accurate, reliable and guarantees accurate and constant results. The user friendly interface makes it easy to switch between recipes, change parameters and see your production history. This machine is developed with an eye on hygiene, operation and maintenance, it can be cleaned in just 3 minutes and with standard IP65 classification suitable for cold and wet environments. This machine is able to communicate with any other machine and can easily be integrate in new orexisting production lines.

Specs

• Touchscreen with multi-language selection
• User friendly interface
• Solid stainless steel construction
• Hygienic design
• Servo driven
• Compact footprint

Speed
Max. 300 items/minute
(Product type and size depending)

Paper dimensions
Width: 50 – 180mm
Length: 70 – 1000mm
Max. diameter: 400mm

Options

• Custom conveyor configuration
• Adjustable workheigth
• Product flow L > R or R > L

The VI-19 underleaver / stacker is a high speed underleave system that supports a wide range of products and also a wide range of film and paper types for different applications. The servo controls of this machine guarantee fast and accurate results. Settings can easily be changed using the large touch screen operation panel, the user friendly interface supports multiple languages for optimal operating convenience. Due to its modular design the machine can be disassembled very fast and easy for maintenance and cleaning. The compact footprint of the VI-19 / 300 underleaver makes it very easy to integrate in new and existing production lines.

Specs

• Large touch screen operation panel
• Multi-language, user friendly interface
• Hygienic, modular, solid
  stainless steel construction
• Servo driven
  Compact footprint

Speed
Up to 300 items / min
(Product type and size depending)

Stacking speed
Up to 50 items / min
(Product type and size depending)

Paper dimensions
Width: 80 – 300mm
Length: 65 -1000mm

High speed, accuracy and reliability, these terms can be used to describe the VI-42 Card Board Feeder. This machine is used to feed cards and l-boards in different shapes, materials and thicknesses and place them under your products. The complete servo driven system is fast, accurate, reliable and guarantees accurate and constant results. The user friendly interface makes it easy to switch between recipes, change parameters and see your production history. This machine is developed with an eye on hygiene, operation and maintenance, it can be cleaned in just 3 minutes and with standard IP65 classification suitable for cold and wet environments. This machine is able to communicate with any other machine and can easily be integrate in new or existing production lines.

Specs

• Single card reservoir
• Touchscreen with multi-language selection
• User friendly interface
• Hygienic design
• Servo driven
• Compact footprint

Speed
Max. 90 items/minute
(Product type and size depending)

Cardboard dimensions
Width: 300mm
Length: 320mm

Options

• Custom conveyor configuration
• Belt scrapers
• Drip trays
• Empty reservoir warning
• Multiple reservoirs

The revolutionary slicer is here!
Powerful, hygienic, simple and very efficient.
This is the best summary of our new slicing machine.

Standard functions such as an X-Y variety table, automatic loading and a built-in underleaver, but can also be expanded further due to our modular construction method.

Come and admire this showpiece at our stand, or even better, schedule an appointment at our Experience Center!
