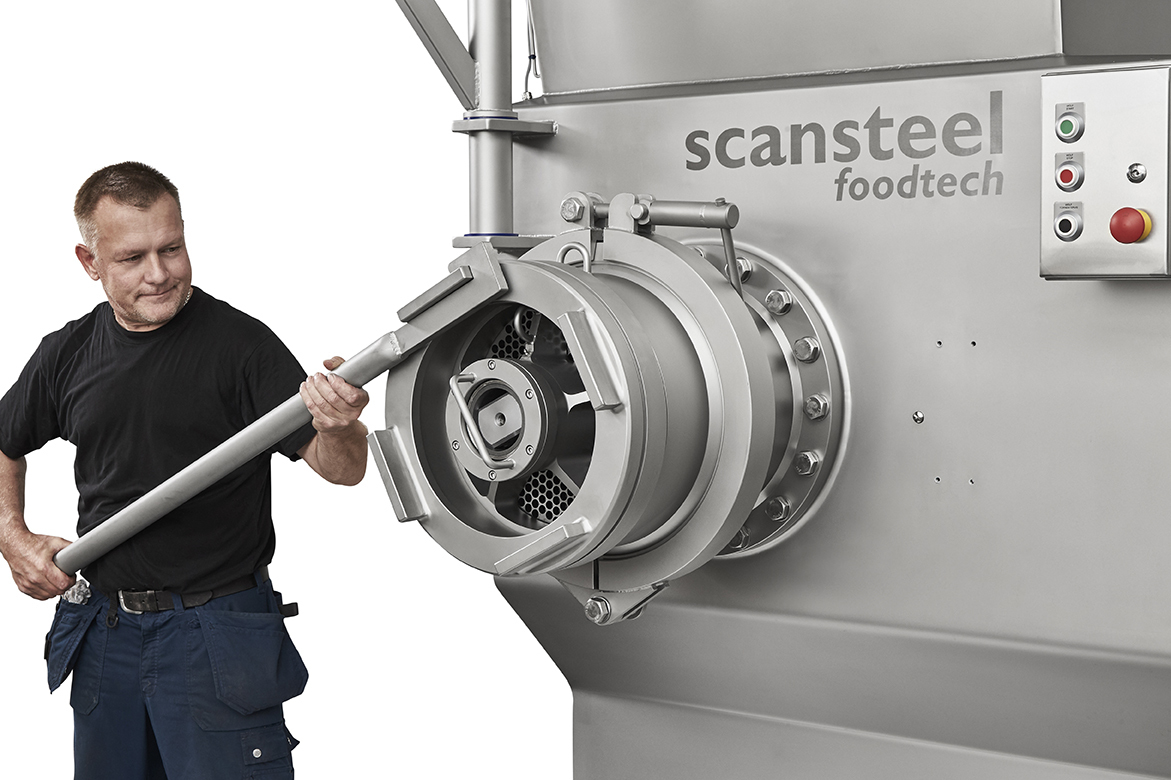

GRINDER - DOUBLE WORM COMBIGRIND CG 160 / CG 225 / CG 300 / CG 300 HEAVY DUTY / CG 400 – THE BEAST

These truly unique and universal grinders provide first-class grinding results, fully comparable with and even surpassing those of conventionally specialised grinders for fresh, tempered, or deep-frozen blocks without changing anything but the incoming raw material to be ground, coarsely or finely, as required.

High performance grinding within a wide capacity range is achieved through a low-tolerance, rigid design with smoothly shaped worms, hand-forged, welded, and ground superfine by skilled Danish craftsmen combined with the smooth surfaces of a high precision CNC milling lining.

Minimum product stress provide ground end products with reduced fat separation during cooking and improved drying and curing ability. Variable speed drives for both feeding and grinding worm provides a balanced and constant flow to the cutting set, single or double.

Fresh soft meats and fats as well as tempered or hard frozen blocks are effectively processed together or separately without changing any mechanical components due to the ingenious design of hopper, transfer area between the worms combined with effective fixation of the frozen blocks. Narrow tolerances eliminate backwash, fines and smearing.

GRINDER - DOUBLE WORM COMBIGRIND CG 160 / CG 225 / CG 300 / CG 300 HEAVY DUTY / CG 400 – THE BEAST

Benefits:

• No smearing (NO fat out)
• Excellent meat fat particle definition.
• Perfect fine and coarse grinding of both fresh meat and frozen meat blocks.
• Dual worm grinder with adjustable worm speed on BOTH feeding worm and grinding worm.
• Dual sanitation/cleaning zone on both feeding and grinding worm.
• CCR, Continuous Chip Removal System (Bone Chip Removal System).
• Grinding motors for frozen blocks from 45-90 kW motor

Over the years, the scansteel foodtech Group has conquered the position as THE supplier with the world’s widest grinder programme. scansteel foodtech delivers, among other, the following grinder programme:

• Cabinet Grinders ranging from Ø160 mm – Ø550 mm (Ø8” – Ø22”) – 22 kW – 200 kW (type name: MG).
• Open Cabinet Grinders ranging from Ø200 mm – Ø550 mm (Ø8” – Ø22”) – 22 kW – 200 kW (type name: MG Low).
• CombiGrind Grinders from Ø160 mm – Ø400 mm – 11 kW – 22 kW on breaking worm and 30 kW – 200 kW on grinding worm (type name: CG).

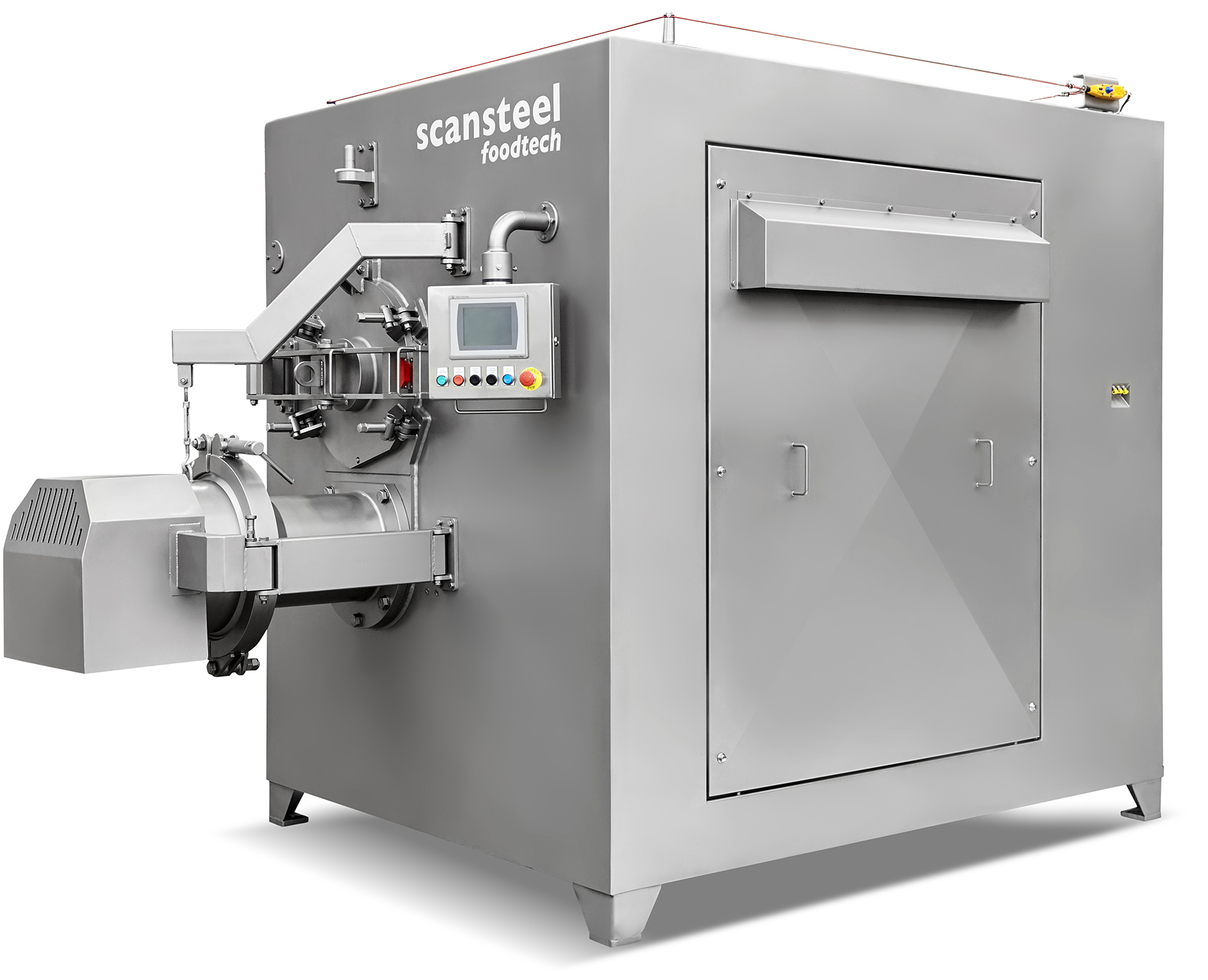

scansteel foodtech MG 400 with its Ø400 mm (16″) knife set grinds frozen blocks, frozen or fresh pork (and sow) skin as well as all kinds of fresh meat raw material.

Features:

• 90 – 132 kW motor
• 1 unit dismantling crane
• Dismountable side panels on 3 sides of the cabinet
• Complete stainless steel construction
• Up to 12,000 kg/hour
• Optional scansteel foodtech automatic knife tensioning system
• General sizes of meat blocks as well as odd sizes from bags or trays
• Low noise level
• Low energy consumption
• Large hopper in-feed area preventing bridge building
• Fully separated and sealed hygienic zone divisions preventing possibility of cross contamination.

scansteel foodtech supplies a full range of Mixers and Mixer/Grinders for the global food processing industry as well as the global pet food industry. The scansteel foodtech Mixer and Mixer/Grinder programme will meet ALL your requirements to mixing and grinding. Our range goes from Single Shaft and Twin Shaft Mixers to Twin Shaft Mixers either with Vacuum or with Grinder unit with a wide range of optional extras such as, but not limited to: Heating and/or cooling functionality. scansteel foodtech Mixers – whether Standard TSM type or Intermehsing TSMI type – are extremely versatile and meet almost any product application, you might require, such as:

• Sausage pre-blends/pre-mixes
• Hamburger and patty pre-blends
• Poultry nuggets – lean and extended recipes
• Pizza topping and dry sausage blends
• Meat standardization
• Ham tumbling and vacuumizing
• Heating / cooking / cooling
• Pet food pre-blends for wet as well as dry pet food applications

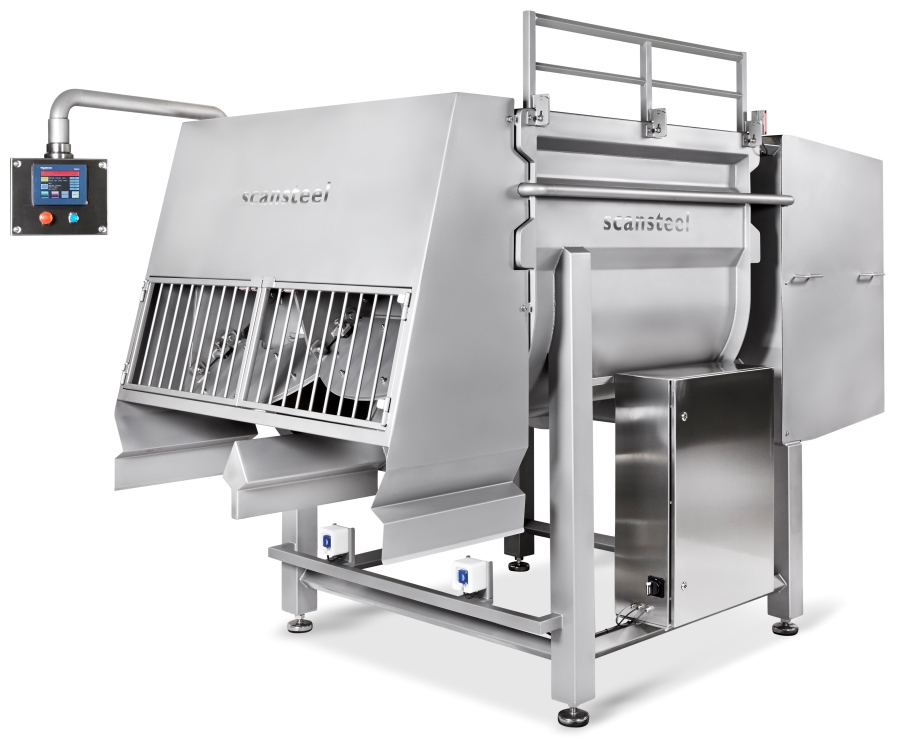

scansteel foodtech Twin Shaft Mixer/Grinder TSMG 1250/200

STANDARD MIXERS

• Twin Shaft Mixers: TSM – From 250 Litres – 6250 Litres
• Twin Shaft Mixers Vacuum: TSMV – From 250 Litres – 6250 Litres
• Twin Shaft Mixer/Grinders: TSMG – Sizes 700/200 to 3250/300
• Single Shaft Mixers: SSM – From 250 Litres – 12.000 Litres
• Single Shaft Mixers Vacuum: SSMV – From 250 Litres – 12.000 Litres

INTERMESHING MIXERS

• Twin Shaft Mixers, Intermeshing: TSMI – From 200 Litres – 12.000 Litres
• Twin Shaft Mixers, Intermeshing Vacuum: TSMIV – From 200 Litres – 12.000
• Twin Shaft Mixer/Grinders, Intermeshing: TSMIG – Sizes 700/200 - 3250/300

scansteel foodtech supplies a full range of Mixers for the global food processing industry as well as the global pet food industry. The scansteel foodtech Mixer Programme will meet ALL your requirements to mixing. Our range goes from Single Shaft and Twin Shaft Mixers to Twin Shaft Mixers either with Vacuum or with Grinder unit with a wide range of optional extras such as, but not limited to: Heating and/or cooling functionality. scansteel foodtech Mixers – whether Standard TSM type or Intermehsing TSMI type – are extremely versatile and meet almost any product application, you might require,
such as:

• Sausage pre-blends/pre-mixes
• Hamburger and patty pre-blends
• Poultry nuggets – lean and extended recipes
• Pizza topping and dry sausage blends
• Meat standardization
• Ham tumbling and vacuumizing
• Heating / cooking / cooling
• Pet food pre-blends for wet as well as dry pet food applications

STANDARD MIXERS

Twin Shaft Mixers: TSM – From 250 Litres – 6250 Litres
Twin Shaft Mixers Vacuum: TSMV – From 250 Litres – 6250 Litres
Single Shaft Mixers: SSM – From 250 Litres – 12.000 Litres
Single Shaft Mixers Vacuum: SSMV – From 250 Litres – 12.000 Litres

INTERMESHING MIXERS

Twin Shaft Mixers, Intermeshing: TSMI – From 200 Litres – 12.000 Litres Twin Shaft Mixers, Intermeshing Vacuum: TSMIV – From 200 Litres – 12.000 Litres

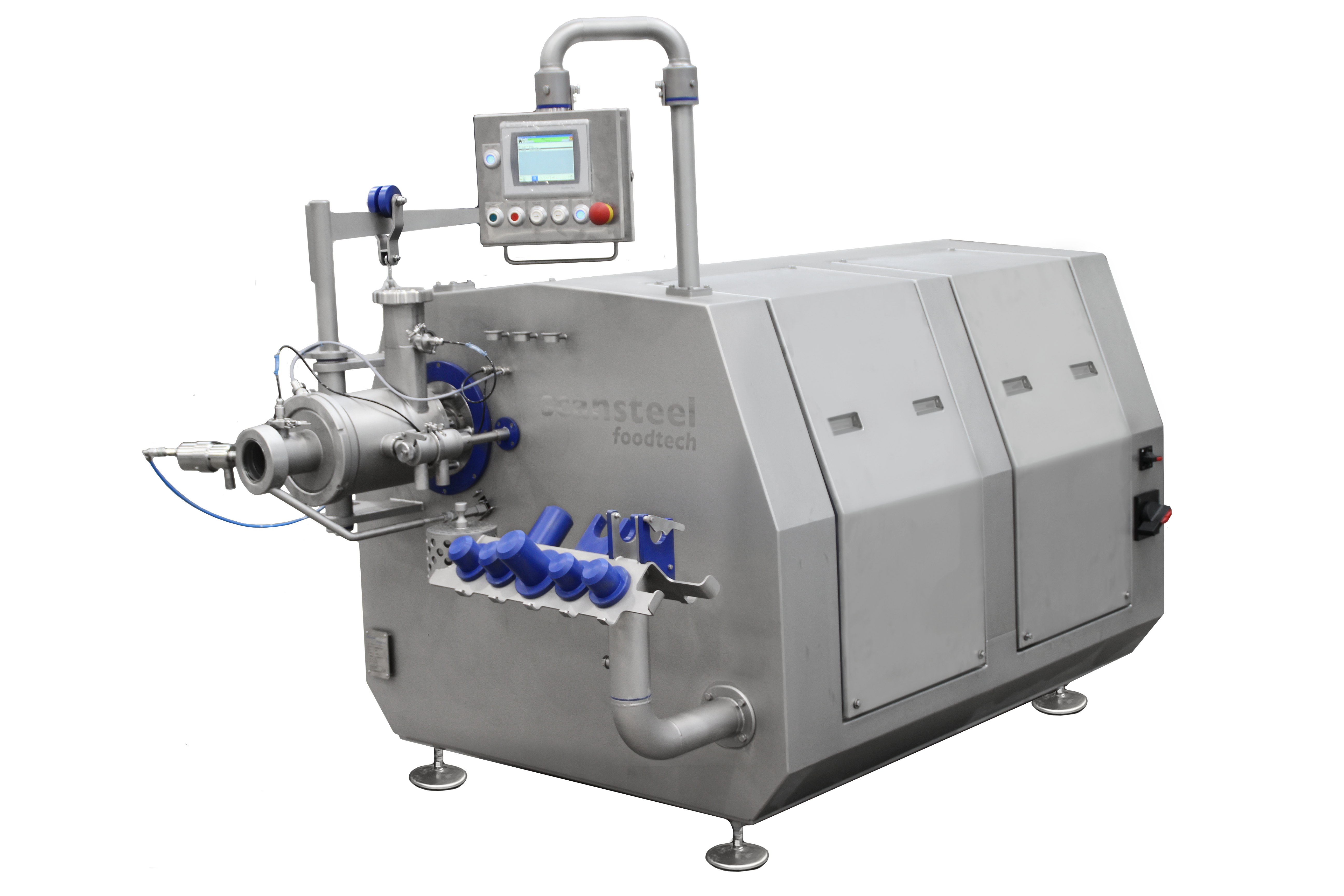

Globally, the scansteel foodtech QuadroCut 225 / PentaCut 225 emulsifier is the Heavy Duty “Work Horse” among emulsifiers. Danish quality equipment conceived, engineered, and manufactured in Denmark.

The QuadroCut 225 / PentaCut 225 emulsifier is a highly reliable, high- and consistent performing emulsifier designed for uniform product quality. The functionality of the machine ensures low running costs just as safe and easy operation.

The scansteel foodtech QuadroCut 225 /PentaCut 225 is designed for Heavy Duty applications. The robust frame is designed to easily withstand the forces from electrical motors from 90 kW – 200 kW. All frame and cabinet work is manufactured in stainless steel AISI 304.

Technical Specifications

• Motor size: Standard range: 90 kW – 200 kW
• Emulsion production capacity: 2000 – 25,000 kg/hour.
• Electrical controls: Allen Bradley operator panel and PLC.Siemens operator panel and PLC
• Emulsifier knife set Speed: Frequency controlled speed of 1800 – 3000 rpm. Typically, the most important speed control is given by the infeed pump speed which can be pre-programmed in the control panel of the QuadroCut 225 / PentaCut 225 emulsifier
• Main bearing: Oil filled bearing. Oil cooled.
