• Adjustable transport speed according to the pollution level
• Hygienic design according to EU hygiene norms
• Adjustable nozzles for proper washing result
• Rinsing with 85 °C ensures disinfection of the crates
• Removable side covers for easy cleaning and maintaining

Available machine capacities:
• 70-100 pcs/h on side 400mm, 120 - 150 pcs/h on side 600mm
• 150-250 pcs/h on side 400mm; 160 -320 pcs/h on side 600mm
• 400-600 pcs/h on side 400mm; 600 - 800 pcs/h on side 600mm
• Capacities above 800 pcs/h are available on request.

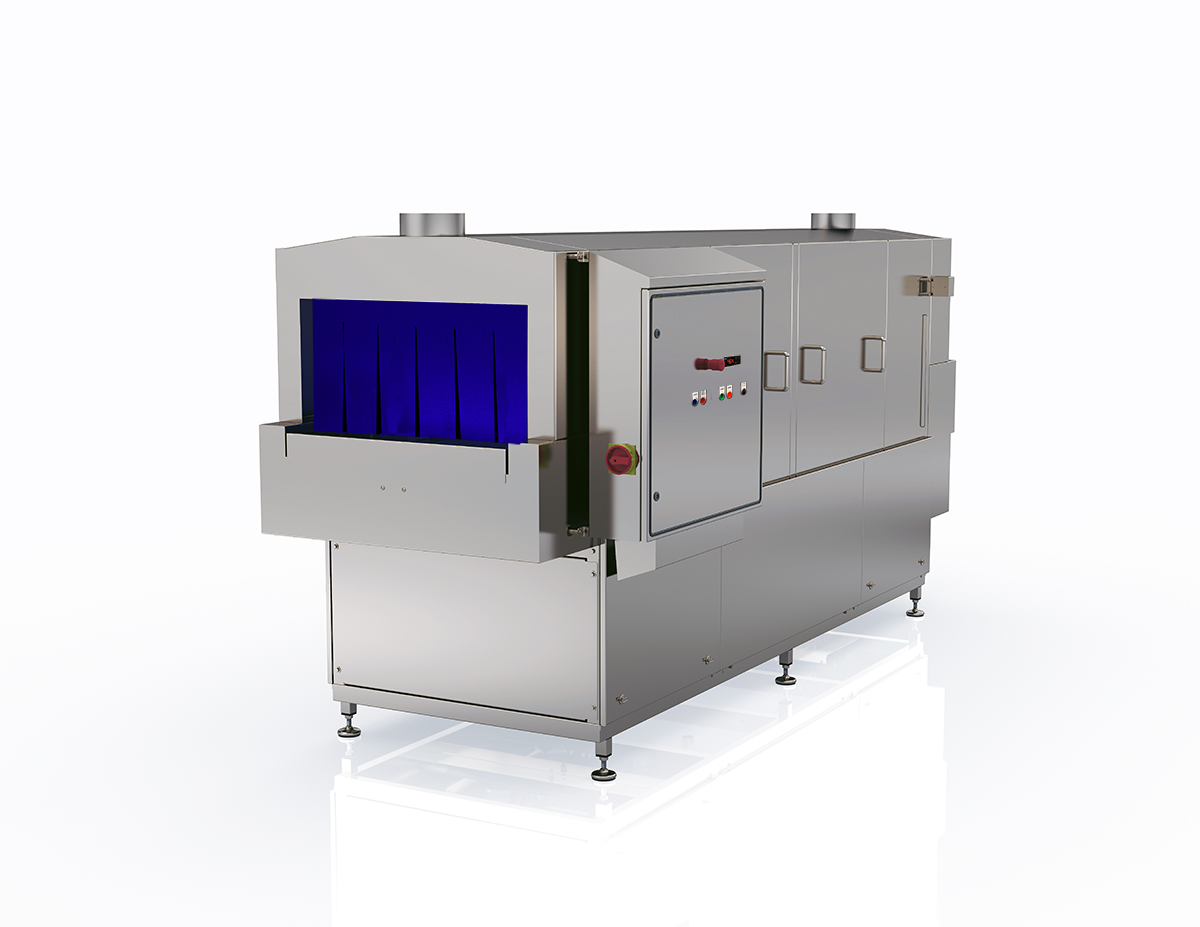

The machine is designed for washing and rinsing EURO crates - E1, E2, and E3. It is equipped with fixed nozzles for rinsing and adjustable nozzles for the washing process. Heating of water in the tank: direct steam injection. Electric heating is also an option. Pneumovalve for steam control. The 85°C hot water for rinsing is supplied via the steam/water mixing valve. The water of the washing process is continuously filtered and replenished from the rinsing process, which provides reduced water and energy consumption. The temperature of the wash water can be adjusted from 30 °C to 60 °C via a thermostat. The water tank is thermally insulated to prevent heat loss. The tunnel is equipped with removable side covers that facilitate easy cleaning and maintenance. Safety features include magnetic sensors on the side covers, overload clutch coupling, and electronic regulation of the water level.

Options:
• One-man operational system
• Dosing pump for detergent
• Adjustable side guide according to 300-600mm in width
• Blow-off module 2 x 3kW  fans
• Fan 1.1 kW for exhausting of the vapour
• External water heater 15 kW, 50-85 ° C  (rinsing process)
• External water heater 30 kW, 20-85 ° C  (rinsing process)
• Washing with 4 kW pump, instead of 3 kW
• Washing with 3 kW pump, instead of 1.5 kW
• Siemens PLC S7-1200 and display KP300

Standard dimensions of Euro crates:
Euro 1 (E1) standard - 600 x 400 x 125 mm
Euro 2 (E2) standard  - 600 x 400 x 200 mm
Euro 2 (E3) standard  - 600 x 400 x 300 mm

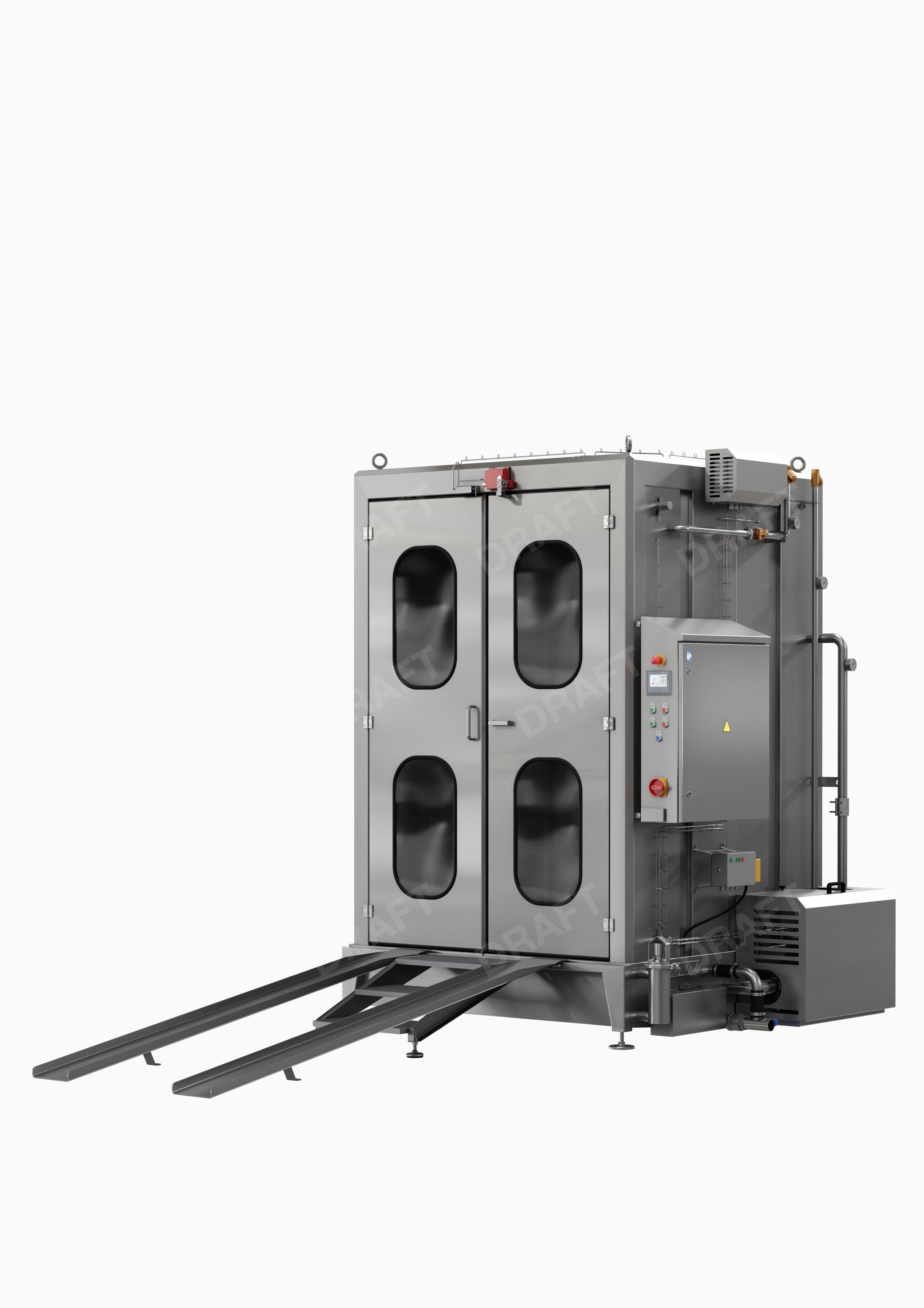

Machine function:
For washing 1 rack at time.
Dimensions of rack to be washed:
D x W x H: 1015 x 1000 x1950mm
Dosing pump for detergent. Siemens PLC and Display.

Technical data:
Capacity: max. 20 pcs/h (depending how dirty they are)
Water temperature: 55° C
Water inlet: R 1"
Water outlet: R 2"
Main water tank capacity: approx.900 ltr
Pump motor power: 11 kW
Pump capacity: 62 m³/h
Pump pressure: 4,0 bars
Power supply: 400 V/50Hz
Degree of protection: IP 65
Heating: electrical via 2x15kW heaters
Loading of the racks : via hand or electric pallet truck
85° hot water for the rinsing process to be provided by the customer!

Execution and operation:
The washing machine is made completely of stainless steel, material 1.4301.
All outside surfaces are polished. Machine is not pass through and with door from only one side.
Door is equipped with safety sensors. Machine is equipped with exhaust outlet with diameter 200mm. Exhaust pipes to be provided by the customer.
The washing is carried out with 55C hot recycled water from the main tank, mixed with detergent.
The washer is equipped with movable arm-nozzles in the washing chamber so that the racks are washed on all sides, and from the above as well. The nozzles arms are movable up and down. Nozzles are from stainless steel, not adjustable. The machine main tank is situated beneath the washing chamber. The water in the main washing tank is heated by 2x15kW el heaters. After the washing is complete, the racks are rinsed with hot 85 degrees water, which is provided by the customer. The water from the washing and rinsing is filtered then returns to the main tank for further use. Thus the water consumption is decreased considerably.
The washing machine is in conformity with the hygienic requirements of EU and USDA and the CE-marking. The wiring, water pipelines and the waste water pipeline are not part of the delivery and are to be provided by the client.

Attention:
In order to guarantee a proper machine function, we strongly recommend that the customer is aware of the cold water quality in the factory. The water hardness should not exceed 6° according to the German scale or 1, 25 mmol/l according to the international scale.
If the value exceeds this limit, we strongly recommend installing a water softener installation.

Otherwise a calcification can cause a total destruction of the heating elements as well as the nozzles and other parts of the machine.

Washing and rinsing of EURO-pallets with size 1200x800x160 mm. Manually adding the detergent into the main washing tank. An automatic dosing pump is an option. Electrical heating. Steam heating is an option. Machine corpus made entirely out of stainless steel, material No. 1.4301. The machine complies with the high CE-Re­quire­ments and EU- and USDA regulations.

Technical Data:

• Power supply: 400 V 50 Hz
• Control Voltage: 24 V AC
• Power consumption: 44 kW
• Water line pressure: min 3 bar – max 5 bar
• Electrical heating: 3 x 12 kW
• Water inlet: R 1” /cold water/
• Water inlet: R 1/2” /warm water/
• Water outlet: R 2”
• Capacity: up to 150 pcs / h
• Machine weight:  approx. 600 kg
• Machine dimensions: 3930 x 1000 x 1656 mm
• Pallet dimensions: 4100 x 1200 x 2000 mm

• Tipping capacity of 1000 kg
• Tipping height 1500 mm with an angle of tilt 35°
• High-quality hydraulic package
• Robust construction made entirely of stainless steel
• Hygienic design according to EU hygiene norms

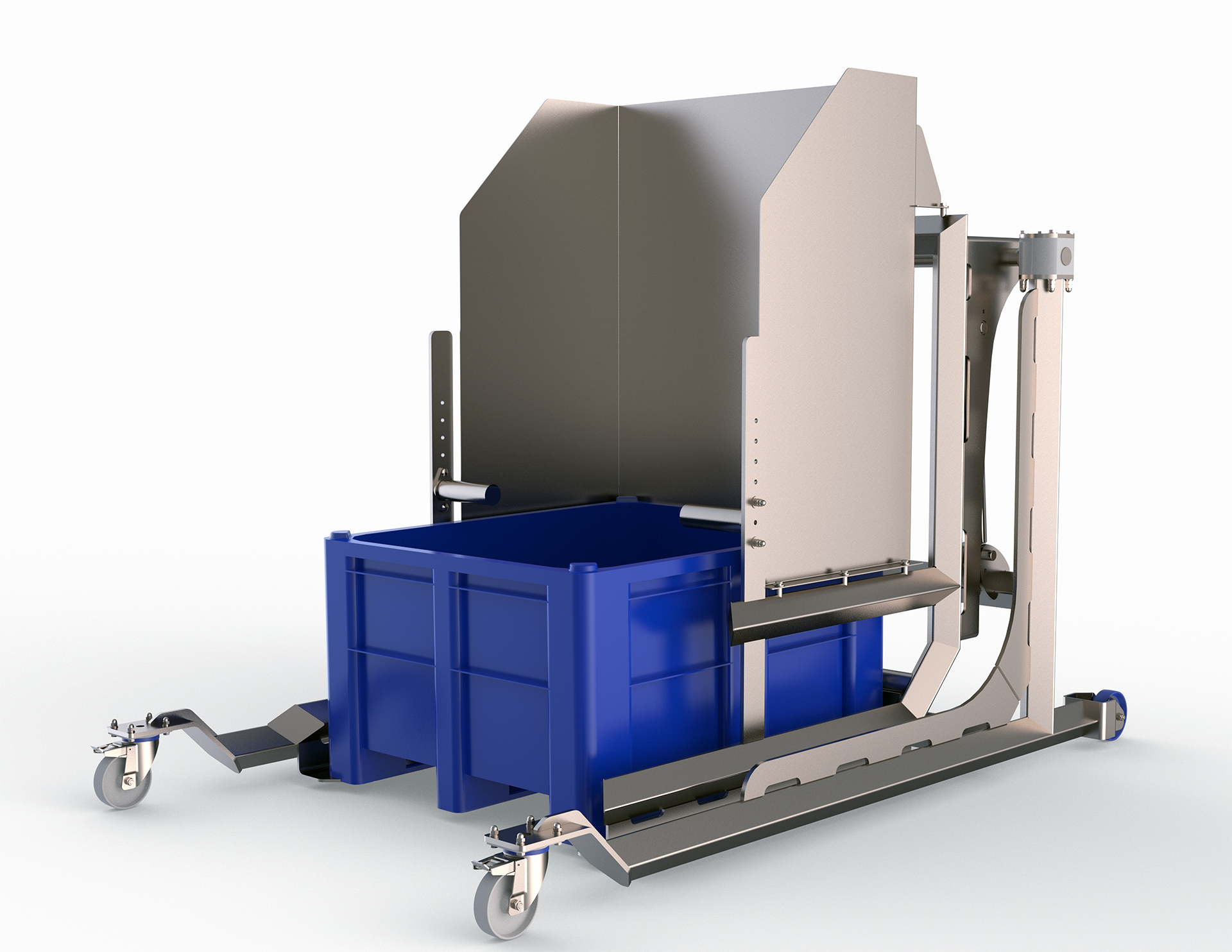

The machine is designed for safe and easy unloading of various products used in meat and other food industries. Tipping height: 1500mm. The holders are adjustable in 5 steps of 50 mm each, depending on the height of the container. Tipping angle: 35°. Maximum load 1000 kg in a container with maximum dimensions 1200 x 1000 x 850 mm. Mobile version. The wheels can be locked stationary. Hygienic design according to EU hygiene standards. The container can be tipped out via the 850 mm side. Left hand operating panel. The swing loader is equipped with a high-quality hydraulic pack and motor. Stainless steel cylinder. Extra strong execution, completely made of stainless steel, material no. 1.4301.
Options: Safety fence, fork for 200/300l buggy.

Technical  Data:
Lifting capacity:1000 kg
Discharge height: 1500 ± 20 mm
Discharge angle: 32±3⁰
Container [L x B x H]:1200 x 1000 x 850  mm
Lifting time: 20 sec.
Power supply: 400 V 50 Hz
Control voltage: 24 V DC
Power consumption: 1,6 kW
Motor IP rating: 65 IP
Ambient temperature: 4 °C ÷ 30 °C
Machine dimensions: 1618 x 1908 x 1906  mm
Machine weight: approx. 600 kg
