We are manufacturer of HG6 Shirring machines :

Parameters :

• Vacuum shirring
• Calibres : 15-35 mm
• Shirred material : Continuous screw shirring at : 90-165 m/min
• Length of shirred stick : 20-35 m (15-60 m for Long option)
• Daily capacity up to : 100.000 m / 12 hrs
• Water and oil mist applied to the surface of the shirred material
• Possibility of fitting with automatic shirred stick insertion system, type VT
• Control system : Siemens
• Motors and frequency converters : Siemens
• Pneumatic components : SMC
• Vacuum system : Gardner Denver
• Compact dimensions
• Simple operation

New mirror version of the shirring machine

• allows operators to work two shirring machines at the same time increased labour productivity significant cost savings

We are manufacturer of HG3-SK Shirring machines :

Parameters :

• Vacuum shirring
• Calibres : 32-120 mm
• Shirred material : Polyamide, Collagen
• Continuous shirring at 50-120 m/min
• Length of shirred stick : 20-50 m
• Stick length max. : 600 mm
• Daily capacity up to : 75.000 m / 12 hrs
• Automatic net packing and net clipping
• Conical mandrels
• Water and oil mist applied to the surface of the shirred material
• Automatic clipper : Poly-Clip
• Control system : Siemens
• Motors and frequency converters : Motor Gear / Siemens
• Pneumatic components : SMC
• Vacuum system : Gardner Denver
• Compact dimensions
• Simple operation

We are manufacturer of HPS300-TSA Web inspenction machines :

Parameters :

• Calibres : 32-180 mm
• Speed max. : 250 m/min
• Reverse machine operation
• Print inspection
• Separate rewinder for poor quality casing print
• Table for cutting and gluing material
• Web guiding system : FIFE
• Control system : Siemens
• Motors and frequency converters : Lenze / Siemens
• Pneumatic components : Festo
• Compact dimensions

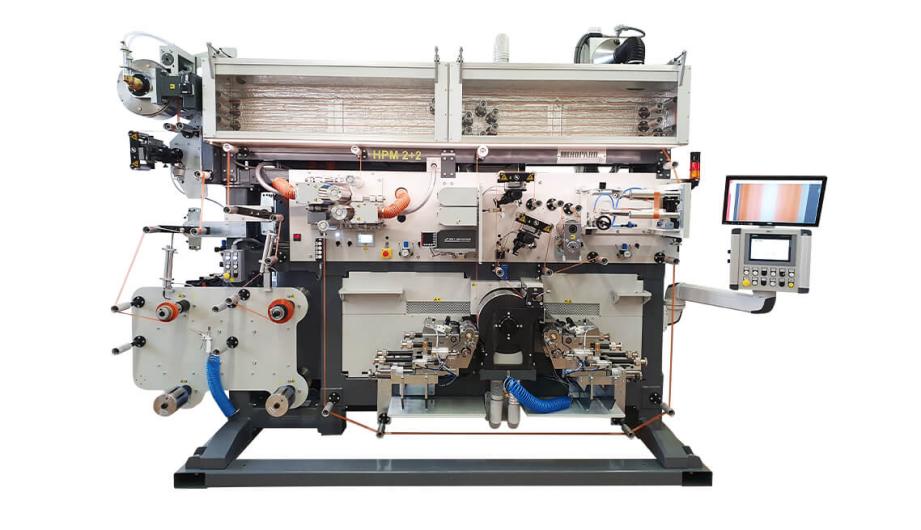

We are manufacturer of HPM Flexo printing machines :

Parameters :

• Print option : 1+0, 1+1, 1+0-3 lines, 2+0, 2+2, 2+0-3 lines, 4+0, 4+1, 4+2, 4+2/4, 4+4, 4+0-3 lines, 6+0, 6+1, 6+2, 6+2/6, 6+6, 6+0-3 lines, 8+0, 8+8
• Width of the central cylinder : 250 mm – standard, other options: 150 mm, 320 mm, 350 mm, etc.
• Design speed : 250-300 m/min
• Printing inks : Alcohol inks, ( UV )
• Application of inks : Doctor chambers, rubber roller
• Control system : Siemens
• Motors and frequency converters : Lenze/Siemens
• Corona system : Vetaphone
• Video system : FIFE or BST
• Web guiding system : FIFE
• Heating element : Kuno Engels
• Pneumatic components : Festo
• Machine design : Monoblock
