with foldable penetration probe and infrared sensor

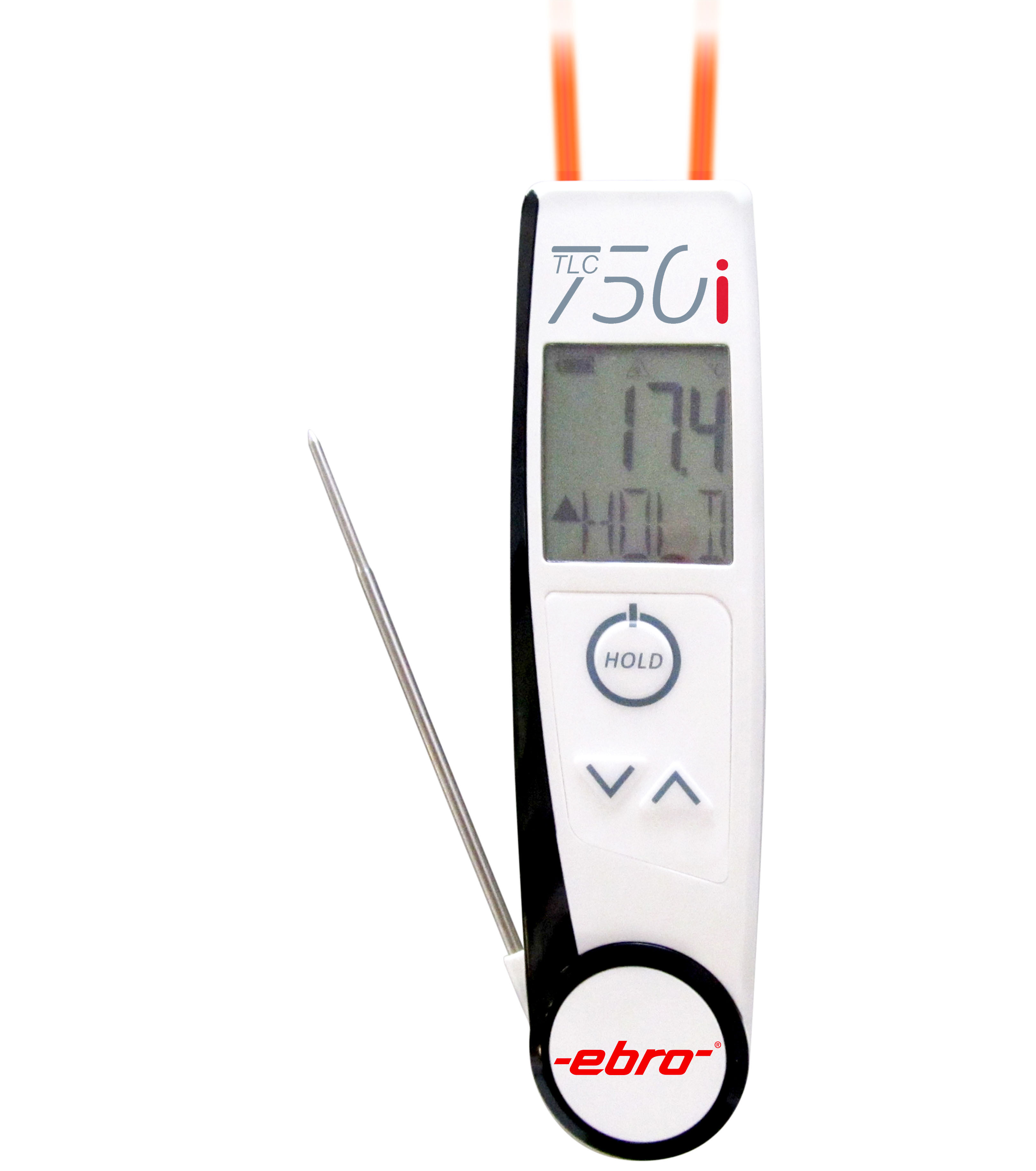

TLC 750i with foldable penetration probe and infrared sensor

Product Description

• Display with backlight for reading in dark environments
• Display can be upside down for reading from both sides
• Double laser pointer
• Compact, fits into any pocket
• Surface measurement with infrared
• °C / °F switchable
• Exchangeable battery

Measuring range -50 °C...+250 °C Accuracy Infrarot: ±4 °C bei -50 °C...-30,1 °C ±2,5 °C to -30 °C...-18,1 °C ±1,5 °C toi -18 °C...-0,1 °C ±1,0 °C bei 0 °C...+65 °C ±2,0 °C or 2% to +65 °C...+250 °C: Contact feeler ±0,5 °C to -30 °C...+99 °C ±1 °C (1%) the larger value applies Resolution 0,1 °C Operating Temperature -25 °C...+50 °C Storage temperature -30 °C...+70 °C Measured variables Temperature IP Rating IP 65 Battery 2 x AAA (Micro) Battery lifetime 10 h when used continuously Dimensions 169,5 x 44 x 23 mm without probe Weight aprox. 140 g Certificate Factory calibration certificate

with internal temperature sensor

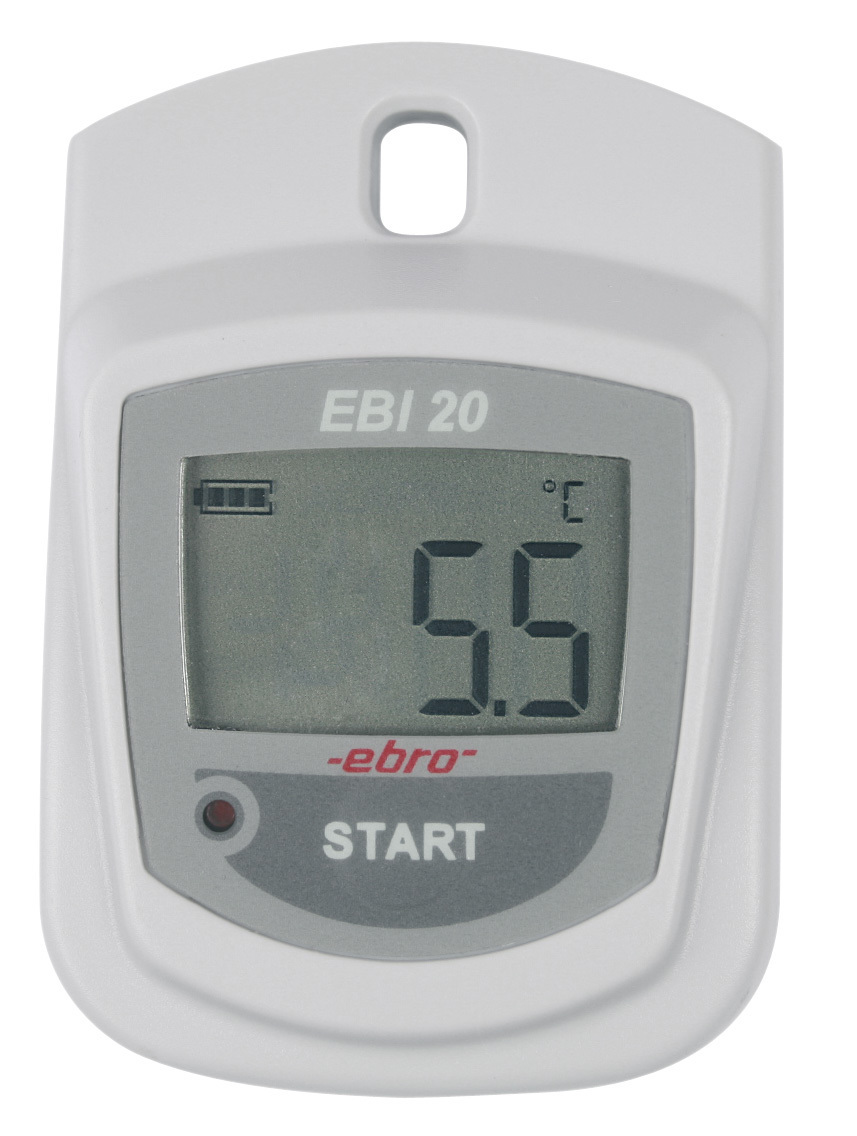

EBI 20-T1 Temperature logger with internal sensor

Product Description

With a memory capacity of 40,000 measurements the easy to use EBI 20 data loggers are suitable for the continuous documentation and monitoring of temperature. All EBI 20 data loggers are delivered with a factory calibration certificate and a user replaceable battery. The data loggers are particularly attractive because of their excellent price-performance ratio.

Applications:

• Transport monitoring,
• Storage monitoring and
• Process monitoring
• Excellent price/performance ratio
• Automatic recording of temperature data
• No network connection required
• Programming and evaluation with PC
• Waterproof
• LED alarm
• Min/max values on display

Measuring range -30 °C...+70 °C Accuracy ±0.5 °C (-20 °C...+40 °C) ±0.8 °C for the remaining measuring range Resolution 0.1 °C Operating Temperature -30 °C...+60 °C Memory 40.000 measurement Sensor NTC Sample Rate 1min....24h Measured variables temperature IP Rating IP 67 Battery Lithium 3.6 Volt battery exchangeable Dimensions 69 x 48 x 22 mm Weight approx. 45 g Certificate Factory calibration certificate

for temperature monitoring in cans

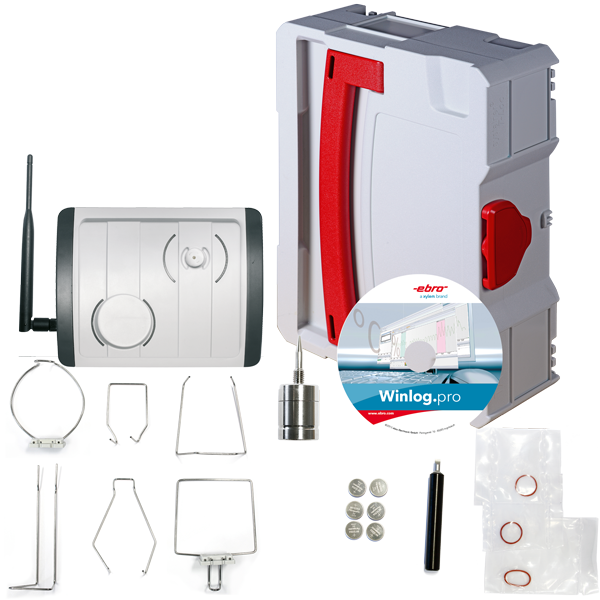

SL 4002 EBI 11 - Set for Food

Product Description

The set contains:

• 1 x Mini-Data Logger EBI 11-T230, Needle length 20 mm
• 1 x Interface IF 100
• 1 x Software Winlog.pro
• 1 x Can adapter set AL 114
• 1 x Carrying case SYSTAINER

Measuring range -30 °C...+150 °C Accuracy ±0.1 °C Resolution 0.01 °C Operating Temperature -30 °C...+150 °C Storage temperature 0 °C...+60 °C Memory 15.000 measurement values Sensor Pt 1000 Sample Rate 1s...24h Measured variables temperature IP Rating IP 68 Battery Battery 2 x 3 V Dimensions ø 16.5 x 24 mm (without probe) Weight approx. 45 g Certificate Factory calibration certificate

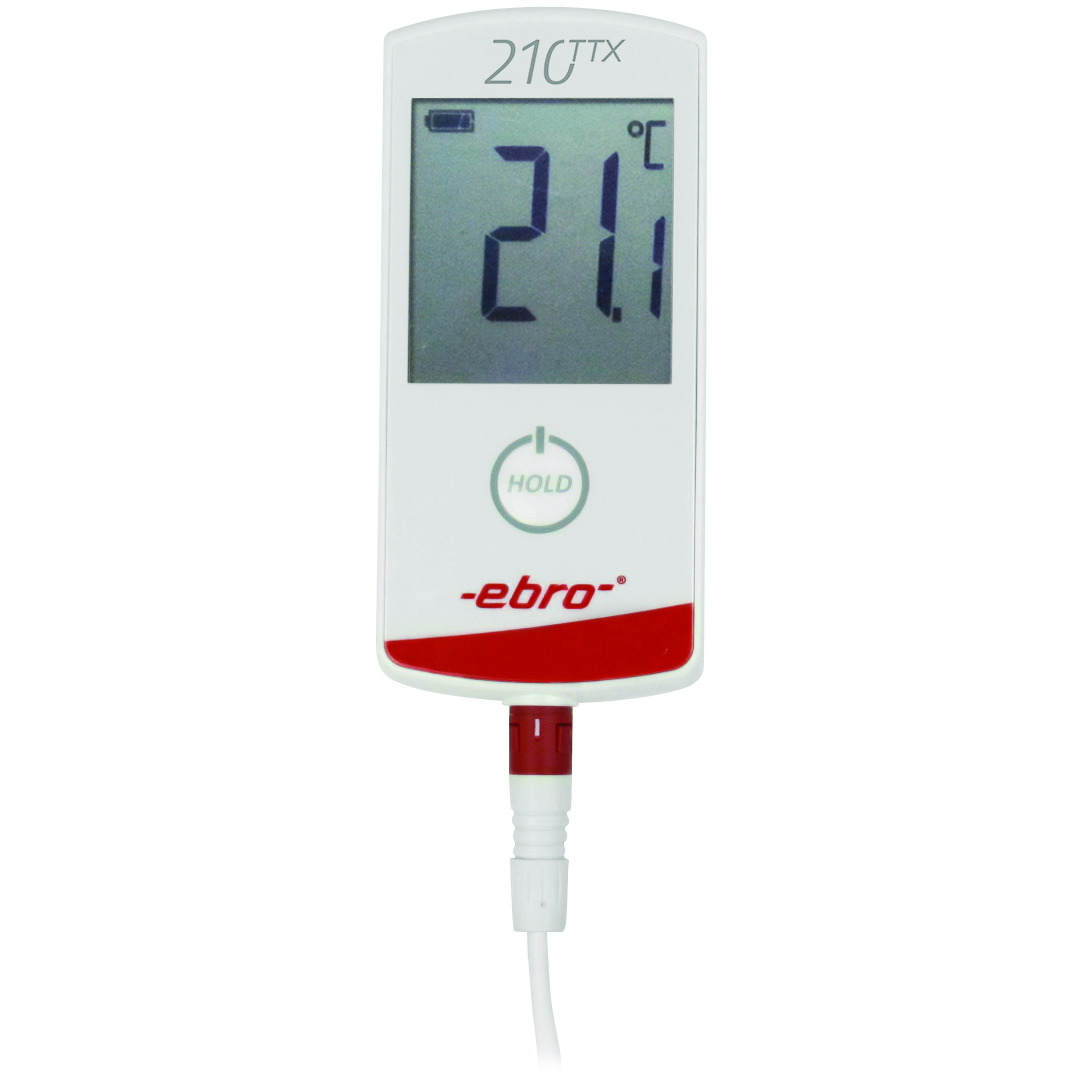

for changeable probes

Without probe please order separately.
The TTX 210 enhances the benefits of the TTX 200 by the flexibility of several changeable probes. As required, a rigid probe for measurement in fluids or semisolid material, or a probe with grip can be used. The latter is available with two different cable lengths. Apart from serving different applications, this allows for easy replacement of a defective probe.
Very large display with big numbers for easy reading

• Compliant to DIN EN 13485 and HACCP
• Very big display for easy reading
• Changeable probes, can be purchased separately
• Easy to use
• Changeable batteries
• Watertight housing (IP 65)

Collecting data with TLC 750 BT and EDC

The thermometer TLC 750 BT is ideal for regular round walks to check the temperature e.g. of cooling rooms or during incoming goods inspections.

The temperature and time data will be stored in the device and then transferred to the ebro® EDC software on a PC.

There it can be supplemented with additional data, e.g. personnel and locations, if required.

Reports and other evaluations can be made at any time.

This application of the ebro® HACCP system is ideal if it´s all about controlling the temperature and storing the data.

HACCP with TLC 750 BT and MyCCP

You can define the various HACCP tasks in MyCCP, whereupon the MyCCP app informs the responsible personnel.

If it´s cleaning the floor, washing the cutlery or the workwear – all can be entered, fulfilled and later checked. One of those tasks can be temperature control, and for that the TLC 750 BT is ideal.

The thermometer sends the measurement data to the app, which forwards it to the cloud.

This application of the ebro® HACCP system is ideal if it´s about the computer aided implementation of an HACCP concept, which includes temperature control,among other things.

Technical data

Measurement range -50 °C ... +250 °C (-58°F ... 482°F)

Accuracy infrared ±4 °C at -50 °C ... -30,1 °C (±7.2°F at -58°F...-22°F)

±2,5 °C at -30 °C ... -18,1 °C (±4.5°F at -22°F...-0.4°F)

±1,5 °C at -18 °C ... -0,1 °C (±2.7°F at -0.4°F...149°F)

±1,0 °C at 0 °C ... +65 °C (±1.8°F at 32°F...149°F)

±2,0 °C or 2 % at +65 °C ... +250 °C

(±3.6°F at 149°F...482°F)

Accuracy penetration probe ±0,5 °C at -30 °C ... +99.9 °C (±0.9°F at 22°F...212°F)

±1 °C (±2°F) or 1 % for the remaining

measurement range (whichever is larger)

Resolution 0,1 °C / 0.2°F

Distance: Spot ratio 8:1

Sensor Thermocouple type T

Operating temperature -20 °C ... +50 °C (-13°F ... 122°F)

Storage temperature -30 °C ... +70 °C (-40°F ... 158°F)

Battery Recharchable lithium polymer battery 3,7 V

Battery lifetime Approximately 8 h of continuous usw

Battery charging Wireless or via USB C port, 500mA

Dimensions (L x W x H) 169.5 x 44x23mm (without probe), needle

length = 100mm

Housing material ABS

Weight Approximately 140 g

Protection class IP 65

Automatic deactivation Automatically after 15 seconds, deactivatable

Certificate Factory Calibration Certificate

Memory capacity 200 Measurement values

Interfaces NFC (only TLC 750 NFC), BLE, USB-C
