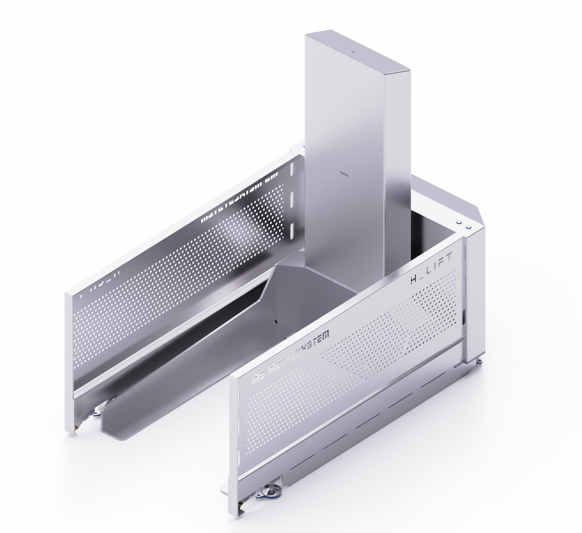

The H Lift is the ideal solution for elevating pallets at depalletizing and palletizing stations, specifically designed to meet the highest standards of hygiene and safety. This equipment is made entirely of stainless steel and FDA-approved materials, making it perfect for operation in delicate and critical environments, such as clean rooms.
Stainless Steel Construction: Ensures durability and corrosion resistance, ideal for demanding environments. The H Lift not only improves efficiency in palletizing and depalletizing processes but also ensures a safe working environment that complies with the strictest regulations. Discover how the H Lift can transform your operations in the food industry!

Technical
Specs.

Pallet dimensions
800 × 1.200mm 1.000 × 1.200 mm
————————————————————————————————
Maximum pallet weight
1.000 kg 2.000 kg
————————————————————————————————
Lifting stroke
800mm 1.500mm
————————————————————————————————
Operation
Electrohydraulic
————————————————————————————————
Electrical protection
IP69K
————————————————————————————————
Built material
AISI 304L & FDA approved materials
————————————————————————————————
Power supply
3 kW 400V III + N + T
————————————————————————————————
Design
Hygienic and roubst design
————————————————————————————————

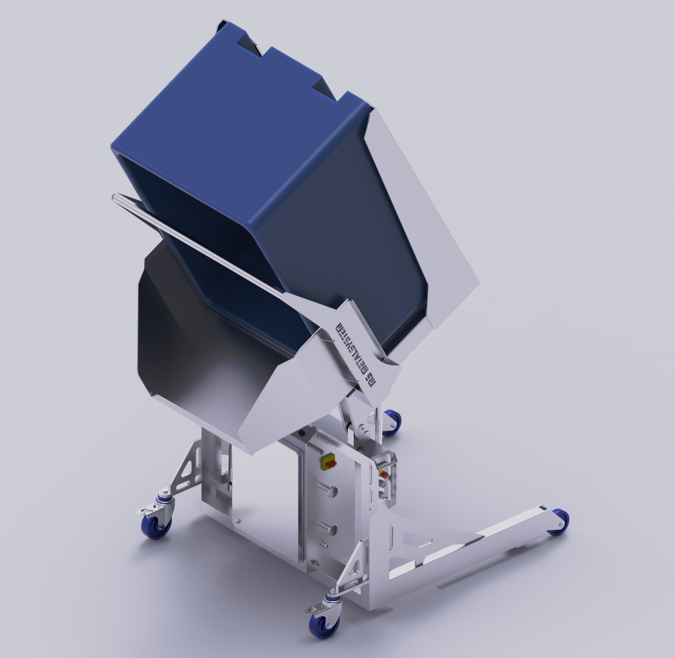

At MS Metalsystem, we offer a full range of robust and hygienically designed tipping systems tailored to the highest demands of the food industry. Manufactured under the strictest quality controls, our tippers guarantee safety, efficiency, and durability in every operation.

Hygienic Design
All components are designed with FDA-compliant materials and follow hygienic design principles, ensuring easy cleaning, no product retention areas, and maximum food safety.

Adaptable Configurations
Available in fixed or mobile versions, with or without wheels, to suit your facility layout and workflow. Compatible with a wide range of bins, tubs, and containers.

Height Versatility
Capable of tipping at heights of up to 4 meters, making them ideal for loading mixers, conveyors, or elevated processing lines.

Manual to Fully
Automatic Operation
From operator-present models to fully automated systems, we offer flexible control levels to match your operational and safety requirements.

Electrical Protection
All electrical systems are protected to IP69K rating, suitable for high-pressure and high-temperature washdowns in food-grade environments.

Durability Meets Cleanability
Manufactured in stainless steel and FDA Compliant materials for excellent corrosion resistance and long service life, even in the most demanding hygiene zones.

Technical
Specs.

Container type
Eurobin
——————————————
Max. container load
300 kg
——————————————
Discharge height
900 - 4.000 mm
——————————————
Operation
Hold-to-run or automatic with photoelectric barrier
——————————————
Configuration
Mobile with wheels or fixed with levelling feet
——————————————
Electrical protection
IP69K
——————————————
Built material
AISI 304L & FDA approved materials
——————————————
Power supply
220 ~ 400V
——————————————
Design
Hygienic and roubst design
——————————————

Technical
Specs.

Container type
Eurobox
——————————————
Max. container load
1000 kg
——————————————
Discharge height
900 - 4.000 mm
——————————————
Operation
Hold-to-run or automatic with photoelectric barrier
——————————————
Configuration
Mobile with wheels or fixed with levelling feet
——————————————
Electrical protection
IP69K
——————————————
Built material
AISI 304L & FDA approved materials
——————————————
Power supply
220 ~ 400V
——————————————
Design
Hygienic and roubst design
——————————————

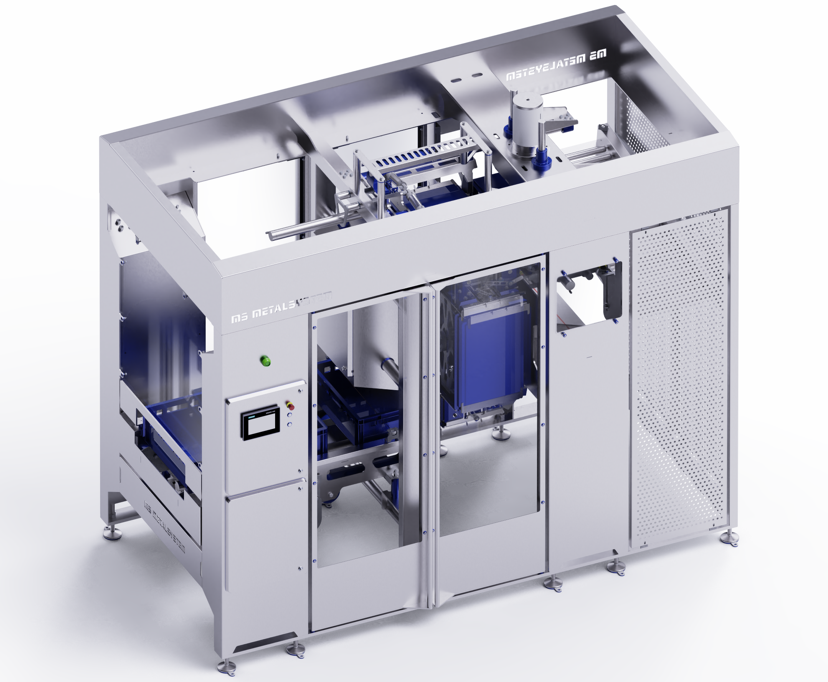

The automatic demoulding system by MS
Metalsystem is a high-performance solution
for the automatic removal and dosing of
frozen meat blocks, developed for high-capacity
meat processing plants that require
hygiene, precision, and process reliability.
Designed with a rotating box accumulator,
an intelligent detection system, and automatic
block rejection, it ensures seamless integration
into continuous production lines.

Technical
Specs.

——————————————
Tray type
E2 or similar HDPE tray
——————————————
Maximum tray weight
25 kg
——————————————
Operation
Electro pneumatic
——————————————
Electrical protection
IP69K
——————————————
Built material
AISI 304L & FDA approved
materials
——————————————
Power supply
5kW 400V III + N + T
——————————————
Pneumatic supply
6-8 bar
——————————————
Design
Hygienic and roubst design
——————————————

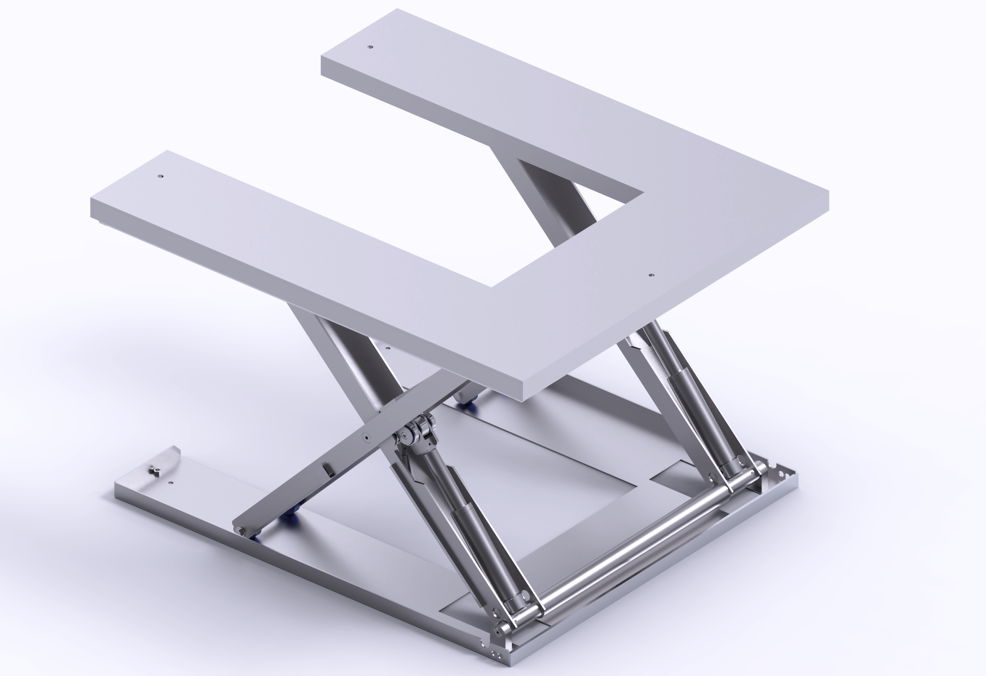

At MS Metalsystem, we design and manufacture customized lifting platforms that improve ergonomics, safety, and efficiency in industrial environments. Our platforms are designed to tackle level differences and variable heights, offering tailored solutions for both operators and goods handling.
Whether in production lines, warehouses, or automated zones, our platforms are the ideal solution for ensuring seamless workflow, while maintaining worker comfort and product protection.

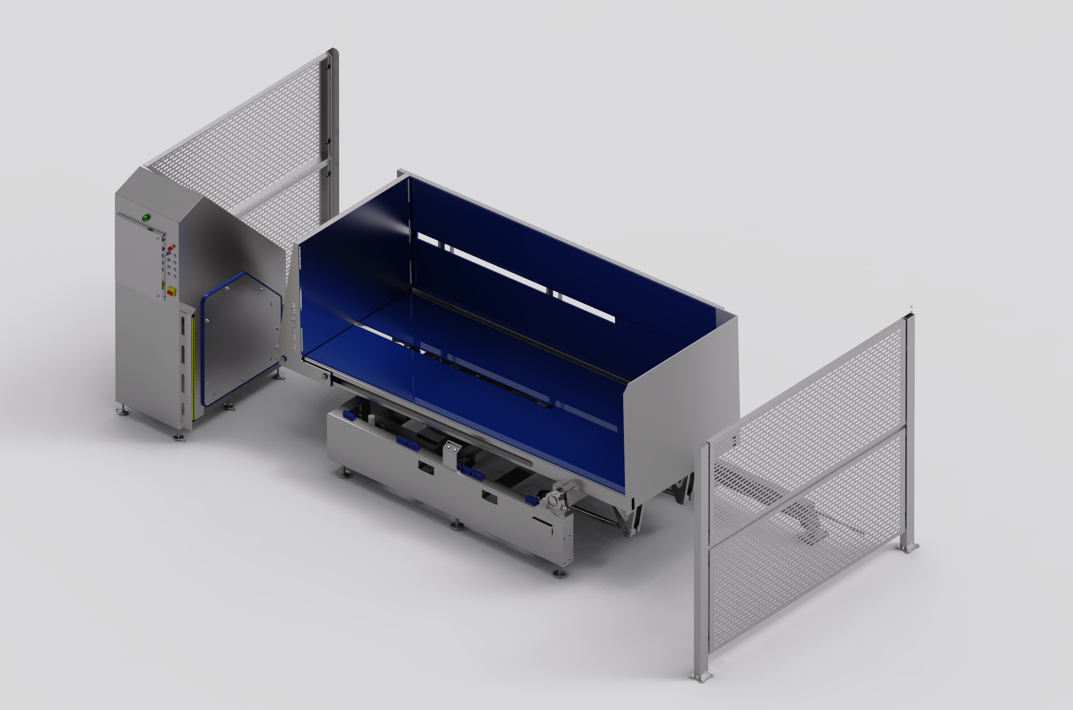

The MS Metalsystem pallet inverter is an advanced, high-speed solution developed for the frozen food industry, specifically designed to transfer products from two freezing tunnel pallets to one final export pallet.
Engineered for speed, precision, and space optimization, it ensures perfect pallet alignment and seamless integration into high-capacity logistics flows.

Technical
Specs.
—————————————————————
Maximum Pallet dimensions
1.000 × 1.200 mm
—————————————————————
Maximum pallet weight
2.000 kg
—————————————————————
Maximum pallet height
2.400 mm - 3.100 mm
—————————————————————
Operation
Electrohydraulic
—————————————————————
Electrical protection
IP69K
—————————————————————
Built material
AISI 304L & FDA approved materials
—————————————————————
Power supply
7.5 kW 400V III + N + T
————————————————————
Design
Hygienic and roubst design
