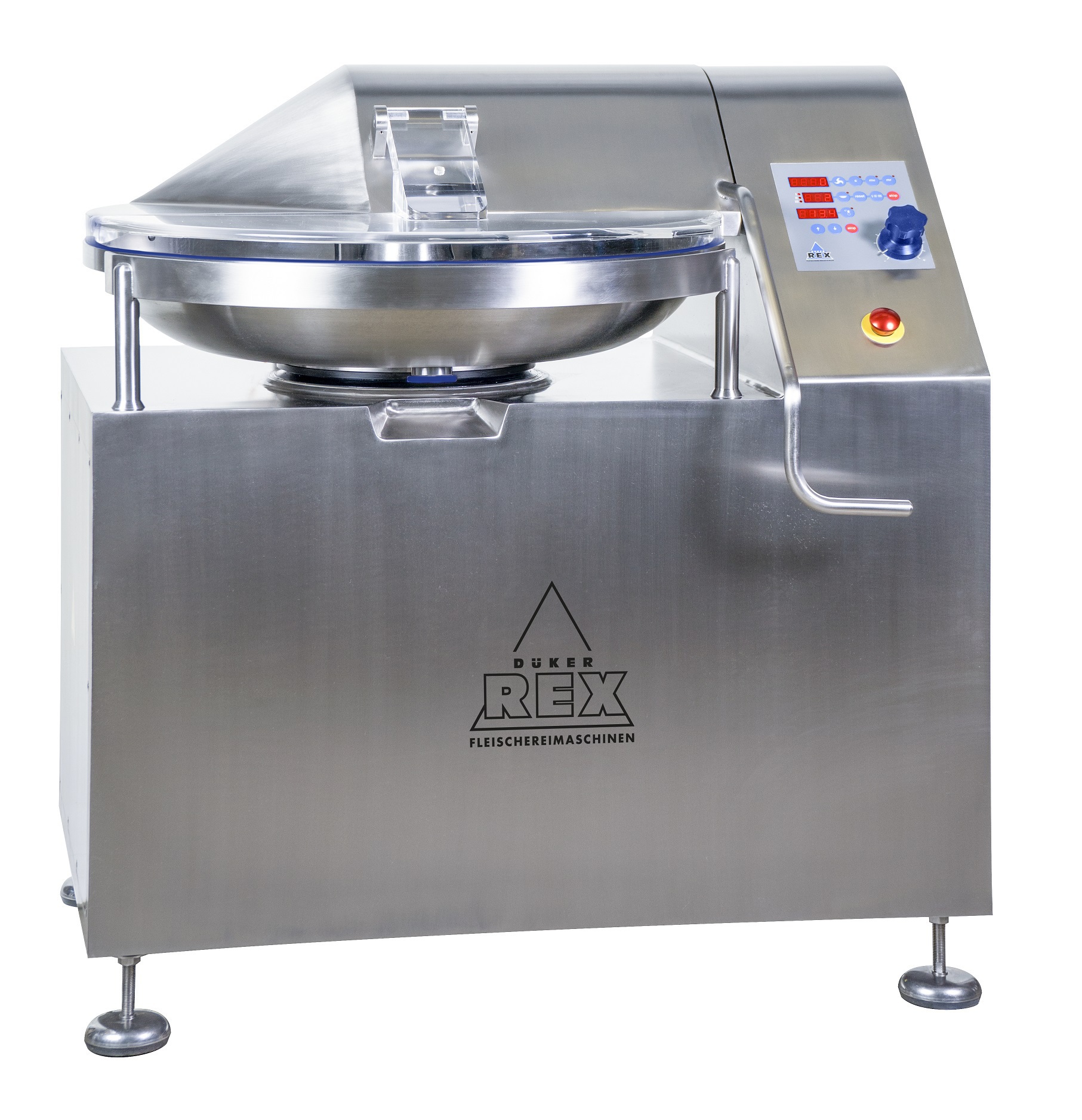

Energy efficiency, infinitely variable regulation, water outlet – the cutters of the new Düker-REX series Blizzard 50 L, 70 L and 130 L do not only meet highest standards, most important they fulfil demanding hygienic requirements with a closed stainless steel corpus and an unique hygiene system. The cutters are fast and easy to clean. The water outlet offers a residue-free draining of the bowl with little effort. This supports a smooth, fast and hygienic process.

Düker-REX is specialised in tailor-made solutions for the butchery trade. This is what the new Blizzard series stands for. The following key features characterise its strong performance: knife-heads with 6 and / or 3 knives, knife shaft with variable cutting speed, infinitely variable regulation via potentiometer, cutting from 50 to 5.000 RPM, mixing forward and reverse from 50 to 500 RPM, 3 bowl speeds, temperature shutdown and bowl shutdown system, digital display for bowl, temperature and knife shaft, freewheeling stainless steel cutter bowl with water outlet, matt finish surfaces and apron protector out of stainless steel, shock-mount feet, control panel with keypad integrated in the machine base. The models 50 L and 70 L have a lifting support for the lid, the model 130 L has a hydraulic lid lifting device. For the model 70 L there is an optional emptier available, this emptier is standard with the 130 L.

Düker-REX is a specialist engineering company with an intimate knowledge of its customers and their requirements.

Düker-REX: experience, progress, service for the butchery trade.

• all surfaces stainless steel, matt finish
• knife-head with 6 knives adjusted to the machine
• cutter lid stainless steel, with noise protection cover
• cutting and mixing speed continuously adjustable
• adjustment via potentiometer
• cutting from 500 – 5000 RPM
• mixing from 50 – 500 RPM forward and reverse
• 3 bowl speeds
• control panel integrated in the machine housing
• motor: 22 KW, 400 V – 50 cycles, 22 KW via frequency inverter
• fuse protection 63 A, delay fuse
• digital display for bowl, temperature and knife shaft
• cutter bowl stainless steel

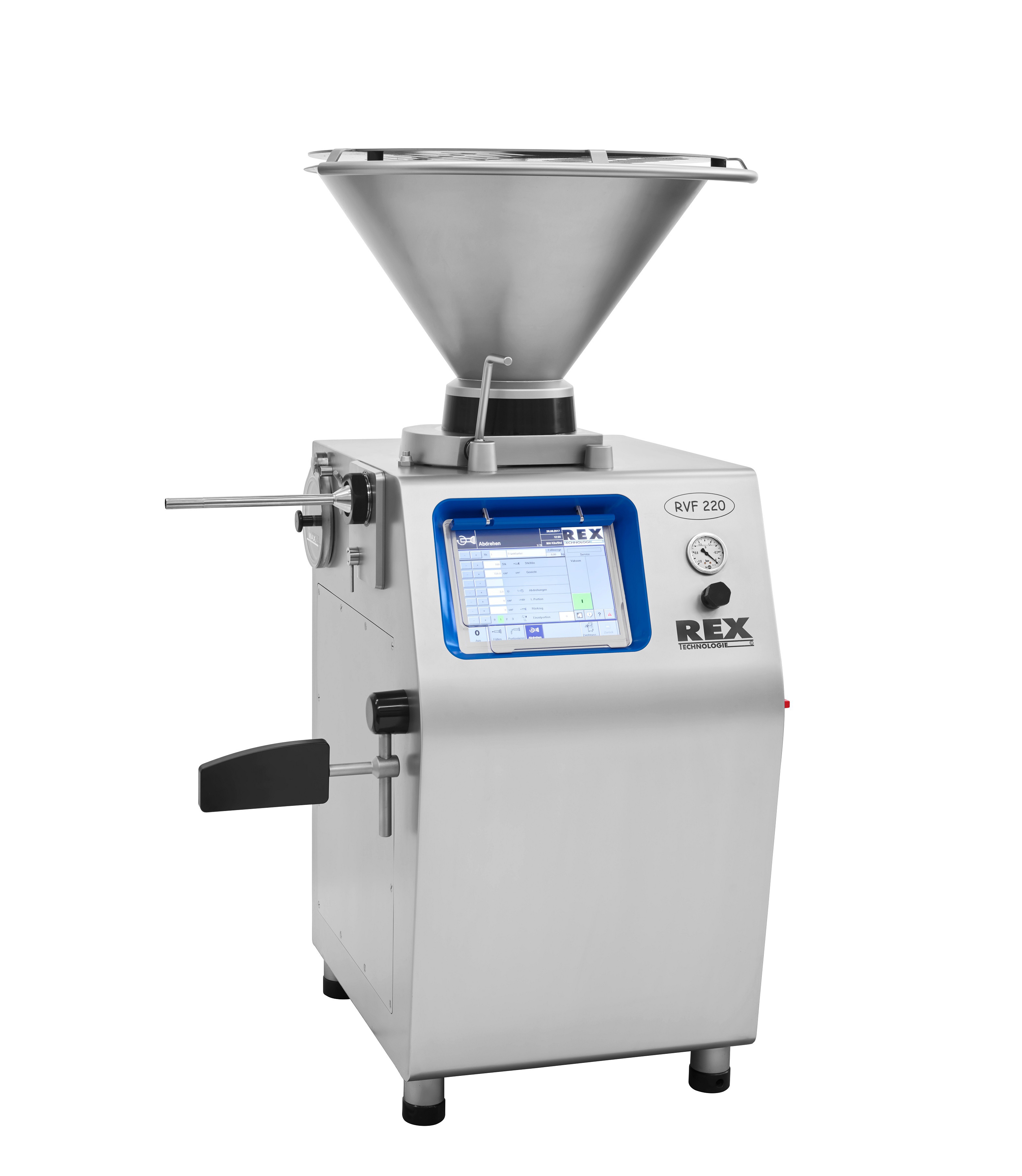

The RVF 220 is a perfect and cost-effective solution for newcomers to vacuum filling technology, yet also suitable as a replacement for an existing filling machine. It comes with all the technical features necessary for the trade and is ideal for frequent product changes.

The machine housing, manufactured completely from stainless steel in hygienic design, is compact and space-saving.

The hoppers – available in a 50-litre version with cover or 100-litre version with flap – are distinguished by simple filling and easy cleaning. Maximum infeed with minimum residual amounts of meat emulsion are typical here.

The vane cell conveyor system made of wear-resistant stainless steel guarantees a long service life and the best product quality. It ensures gentle transport of the meat emulsion and minimal air pockets in the final product.

The standard 12“ touchscreen control enables easy operation.

The optional clipping socket allows various clipping devices and/or attachments to be operated. The optionally available casing holding device twists all types of natural and artificial casings with ease.

• For filling, portioning and twisting
• 50 litre hopper with lid, or 100 litre hopper with flap
• low energy consumption
• low maintenance costs
• hygienic design, easy and fast cleaning
• comfortable loading of the hopper because of low height
• small space requirement
• easy operation with 12″ touchscreen
• easy twisting with casing holding device for both natural and artificial casings
• established vane cell conveyor system, taken from the RVF 300 series

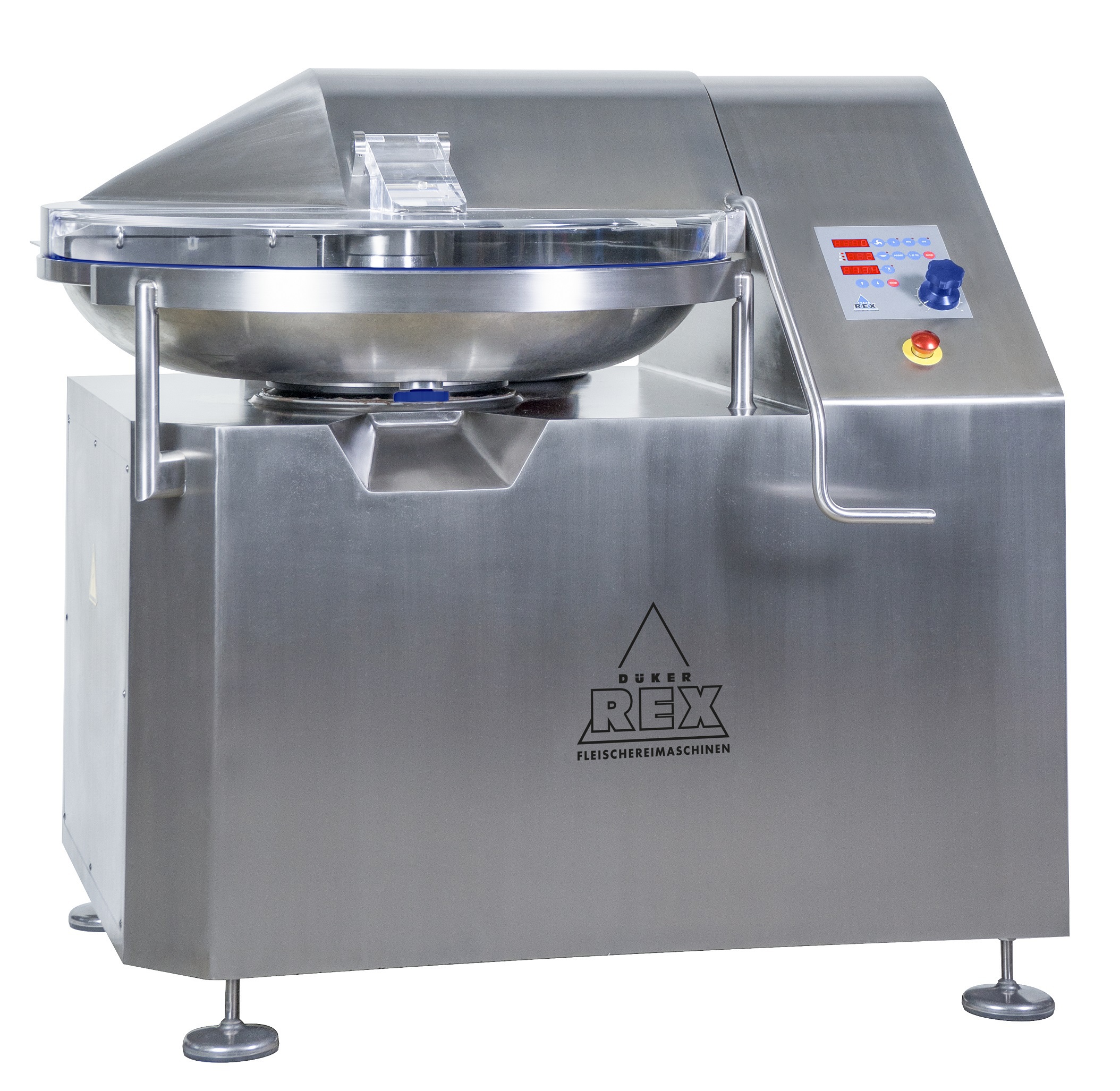

Energy efficiency, infinitely variable regulation, water outlet – the cutters of the new Düker-REX series Blizzard 50 L, 70 L and 130 L do not only meet highest standards, most important they fulfil demanding hygienic requirements with a closed stainless steel corpus and an unique hygiene system. The cutters are fast and easy to clean. The water outlet offers a residue-free draining of the bowl with little effort. This supports a smooth, fast and hygienic process.

Düker-REX is specialised in tailor-made solutions for the butchery trade. This is what the new Blizzard series stands for. The following key features characterise its strong performance: knife-heads with 6 and / or 3 knives, knife shaft with variable cutting speed, infinitely variable regulation via potentiometer, cutting from 50 to 5.000 RPM, mixing forward and reverse from 50 to 500 RPM, 3 bowl speeds, temperature shutdown and bowl shutdown system, digital display for bowl, temperature and knife shaft, freewheeling stainless steel cutter bowl with water outlet, matt finish surfaces and apron protector out of stainless steel, shock-mount feet, control panel with keypad integrated in the machine base. The models 50 L and 70 L have a lifting support for the lid, the model 130 L has a hydraulic lid lifting device. For the model 70 L there is an optional emptier available, this emptier is standard with the 130 L.

Düker-REX is a specialist engineering company with an intimate knowledge of its customers and their requirements.

Düker-REX: experience, progress, service for the butchery trade.

• all surfaces stainless steel, matt finish
• knife-head with 6 knives adjusted to the machine
• cutter lid stainless steel, with noise protection cover
• cutting and mixing speed continuously adjustable
• adjustment via potentiometer
• cutting from 500 – 5000 RPM
• mixing from 50 – 500 RPM forward and reverse
• 3 bowl speeds
• control panel integrated in the machine housing
• motor: 11 KW, 400 V – 50 cycles, 15 KW via frequency inverter
• fuse protection 35 A, delay fuse
• digital display for bowl, temperature and knife shaft
• cutter bowl stainless steel

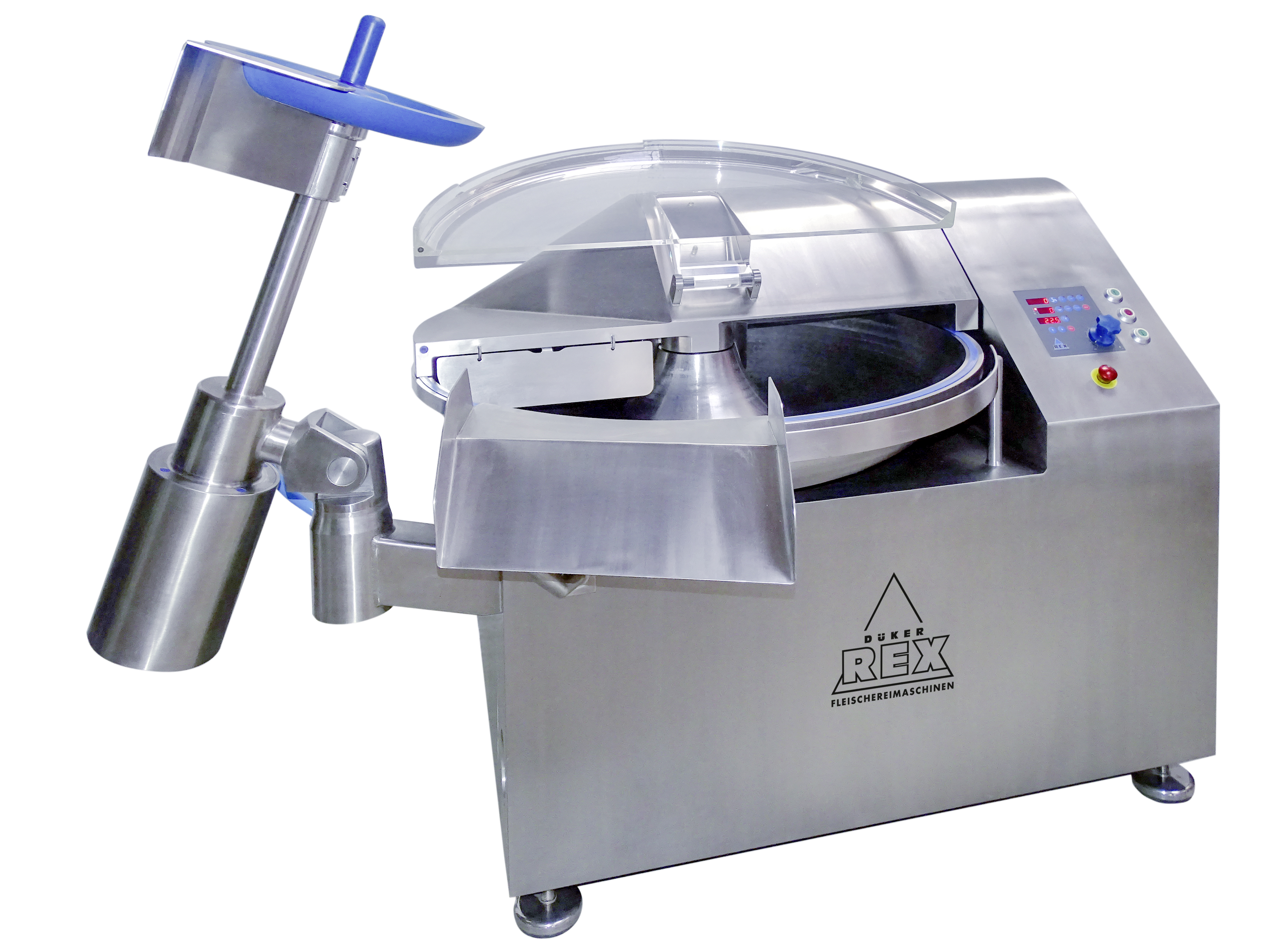

Energy efficiency, infinitely variable regulation, water outlet – the cutters of the new Düker-REX series Blizzard 50 L, 70 L and 130 L do not only meet highest standards, most important they fulfil demanding hygienic requirements with a closed stainless steel corpus and an unique hygiene system. The cutters are fast and easy to clean. The water outlet offers a residue-free draining of the bowl with little effort. This supports a smooth, fast and hygienic process.

Düker-REX is specialised in tailor-made solutions for the butchery trade. This is what the new Blizzard series stands for. The following key features characterise its strong performance: knife-heads with 6 and / or 3 knives, knife shaft with variable cutting speed, infinitely variable regulation via potentiometer, cutting from 50 to 5.000 RPM, mixing forward and reverse from 50 to 500 RPM, 3 bowl speeds, temperature shutdown and bowl shutdown system, digital display for bowl, temperature and knife shaft, freewheeling stainless steel cutter bowl with water outlet, matt finish surfaces and apron protector out of stainless steel, shock-mount feet, control panel with keypad integrated in the machine base. The models 50 L and 70 L have a lifting support for the lid, the model 130 L has a hydraulic lid lifting device. For the model 70 L there is an optional emptier available, this emptier is standard with the 130 L.
Option:
Touchpanel / process controll for model 70 and 130 L.
loading u. unloading device hydraulically coperateded

Düker-REX is a specialist engineering company with an intimate knowledge of its customers and their requirements.

Düker-REX: experience, progress, service for the butchery trade.

• all surfaces stainless steel, matt finish
• knife-head with 6 knives adjusted to the machine
• cutter lid stainless steel, with noise protection cover
• cutting and mixing speed continuously adjustable
• adjustment via potentiometer
• cutting from 500 – 5000 RPM
• mixing from 50 – 500 RPM forward and reverse
• 3 bowl speeds
• control panel integrated in the machine housing
• motor: 45 KW, 400 V – 50 cycles, 45 KW via frequency inverter
• fuse protection 100 A, delay fuse
• digital display for bowl, temperature and knife shaft
• cutter bowl stainless steel

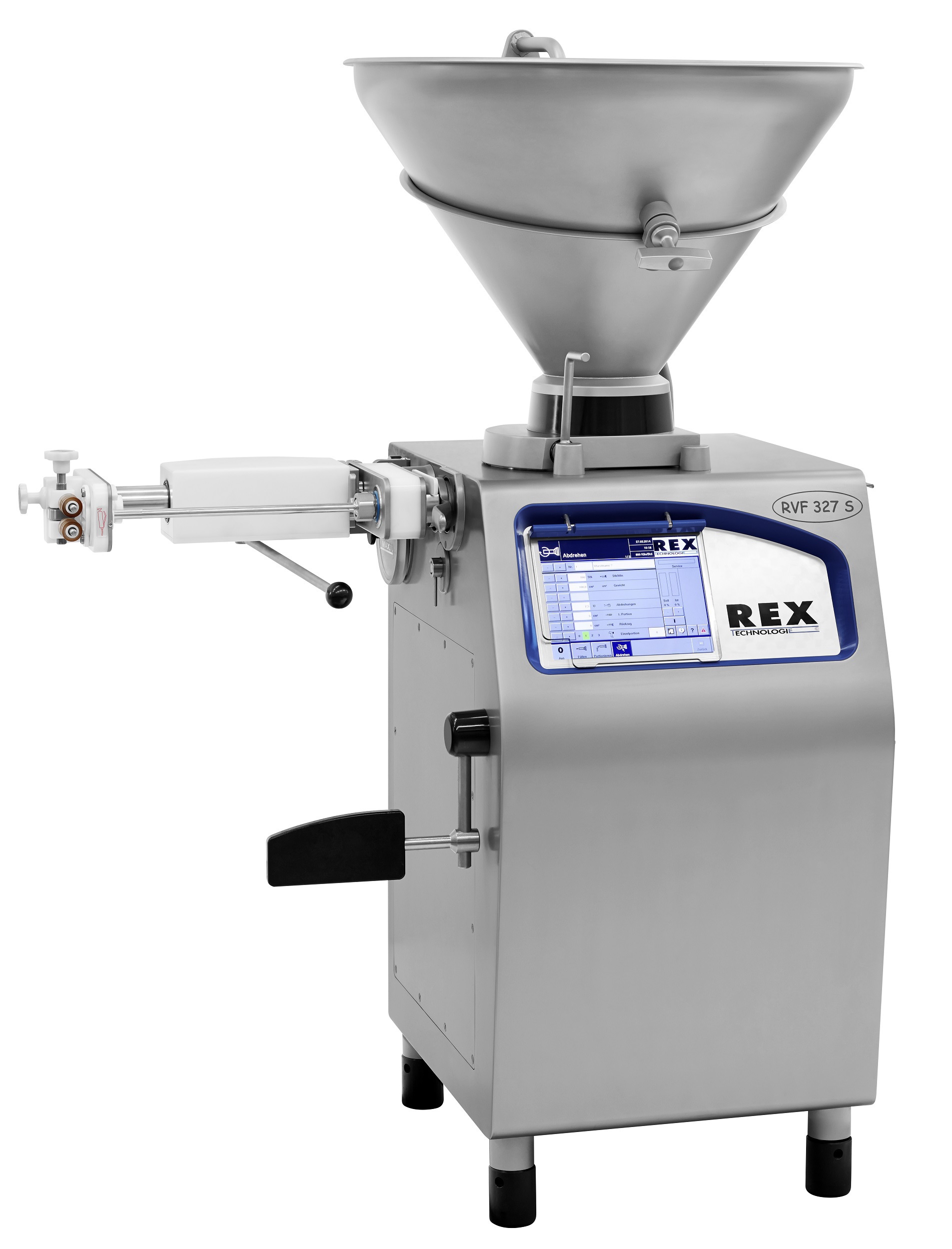

The RVF 327 is designed for small and middle-sized enterprises with frequently changing varieties and average forcemeat quantities.

Reliability, quick and easy cleaning, reduction of leftovers and low energy costs are the main features of the RVF 327.

The vane cell feed system made of wear-resistent stainless steel guarantees durability as well as best product quality. It guarantees gentle transport of all filling substances and minimal air pockets in the forcemeat.

The touchscreen simplifies operation and has been designed according to industrial requirements. The standard clipper socket permits control of various clipper or additional machines when required.

Optional fold-away hoppers with 100 or 160 liter capacity are available.

Naturally, it is always possible to attach a rotating or fixed holding device to the RVF 327 in order to faciliate the linking of synthetic or natural casing.

• For filling, portioning and twisting
• 100 or 160 liter hopper
• rotary vane pump
• maintenance-free, power-regulated servo-drive
• casing holding device for synthetic and natural
• casings:
• Holding Device 320, 400 or rigid
• user-friendly 12″ touchscreen-regulation
• holding bracket for accessories
