For confectionery/sweets

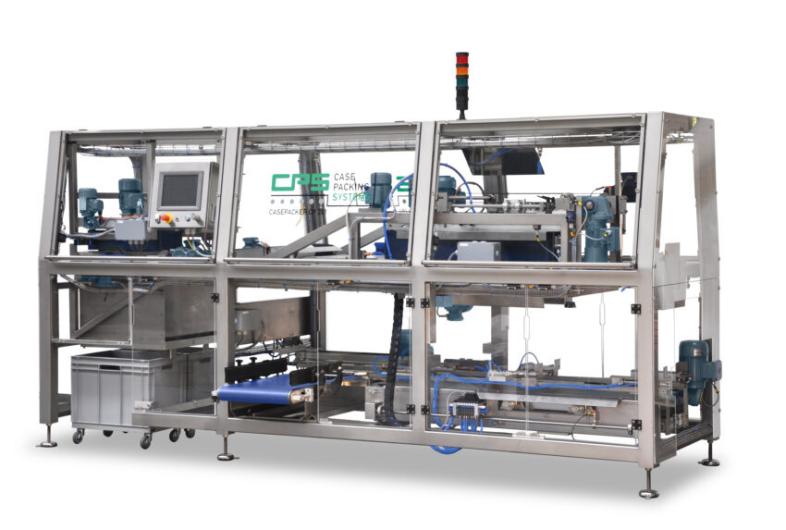

The CP 301 case packer has been specially developed in order to pack small bags horizontally in boxes at high speed and handle a wide range of flexible bags containing sweets and snacks. When equipped with a simple additional option, the unit is also capable of laying block-base bags or doypacks horizontally in a head-to-toe pattern in the box.

Features:

• Up to 180 bags/minute in combination with a simple technology level, very small footprint and full menu control.
• The bags or the box are turned, depending on the specific application.
• A turning system has been developed for block-base bags and doypacks in order to allow head-to-toe packing.
• Good accessibility for servicing
• Stainless steel and aluminium components

The CP 301 system loads automatically bags into cases or crates. The bags are divided at the in-feed with a swivel conveyor and positioned on the retract conveyor. The retract conveyor placed the bags at the bomb doors. Overlap in length and width is possible to create a optimum products in the product carrier. The bomb doors are servo driven which means a quick and controlled movement. After opening of the bomb doors the products will be placed in the product carrier. Multiple layers can also be placed in the product carrier. The product carrier vibrates during loading (option), so that an optimum degree of filling will be reached. The product carrier can be turned for more packing patterns

Technical specifications

• Capacity 140 bags/minute(with a minimum of three bags per collect)
• Machine housing stainless steel / aluminium
• Controls IPC all settings menu controlled
• Operator interface
• Colour touch screen TFT with integrated PC and modem facility
• Control panel fitted on a swivel arm
