Pneumatic equipment for extraction of pig shoulder bones. Thanks to rust proof structure and low weight of 7 kg, the extractor equipment at pneumatic operation is easy to use and very handling. The extraction of bone is arranged by a pneumatic cylinder.

TECHNICAL FEATURES:

• Stainless steel and aluminium frame
• Stainless steel casing and extracting hooks
• Pneumatic controls
• Max. power developed 1000 kg
• Machine weight 7 kg
• Powered by compressed air, air consumption
• 30 lt/min
• Working pressure 6 bar

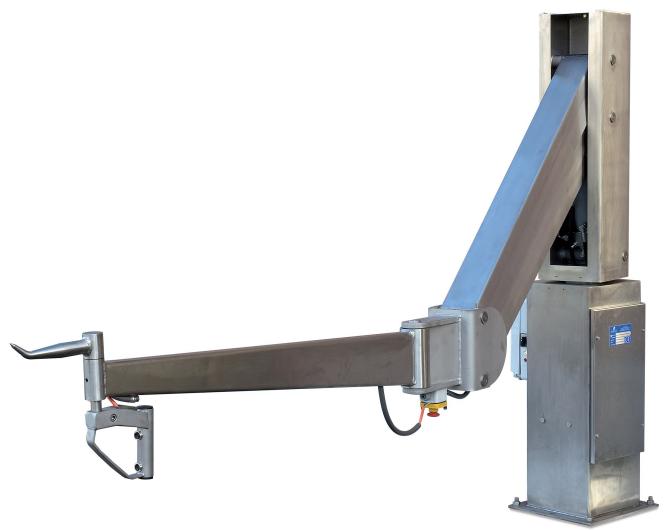

The new MA Tecnoalimenta loading and unloading arm for truck is fully made in stainless steel, also the control handle and the hook are in stainless steel. Thanks to this material the arm is robust, solid and very handling in loading and unloading operations, no effort for the operator and working time extremely reduced.

TECHNICAL FEATURES

• Maximum hook height from fridge floor: 2.400 mm.
• Minimum hook height: 400 mm.
• Useful travel: 2.000 mm.
• Front arm rotation: 270 degrees
• Column rotation: 270 degrees
• Hook rotation: 130 degrees
• Total useful rotation: 360 degrees

Pneumatic equipment for removing nails from pie legs. Thanks to stainless steel structure and to a moderate weight of 7 kg, this machine could reach high performance of work removing more then 12 nails per minute.

TECHNICAL FEATURES

• Stainless steel structure
• Blades made in stainless steel thickness 10 mm.
• Total Weight of machine: 7 kg
• Air pressure: 7 bar

Electro hydraulic cutter ideal for cutting side bones of ham. Thanks to stainless steel structure and low weight of 4 kg, the cutter can reach high performance levels cutting more then 30 bones per minute.

TECHNICAL FEATURES

• Stainless steel frame
• Blades in stainless steel thickness 15mm.
• Blade pins in hardened stainless steel
• Max power developed on blades 3000 kg.
• Weight of the machine: 4 kg
• Weight of control unit: 30 kg
• Working hydraulic pressure: 160 bar
• Voltage: 3 phase motor 400V/50Hz
• Installed power: 2,5 Kw
• Electric controls in low tension

Pneumatic equipment for extraction of pig shoulder bones. Thanks to rust proof structure and low weight of 7 kg, the extractor equipment at pneumatic operation is easy to use and very handling. The extraction of bone is arranged by a pneumatic cylinder.

TECHNICAL FEATURES:

• Stainless steel and aluminium frame
• Stainless steel casing and extracting hooks
• Pneumatic controls
• Max. power developed 1000 kg
• Machine weight 7 kg
• Powered by compressed air, air consumption
• 30 lt/min
• Working pressure 6 bar

The new MA Tecnoalimenta loading and unloading arm for truck is fully made in stainless steel, also the control handle and the hook are in stainless steel. Thanks to this material the arm is robust, solid and very handling in loading and unloading operations, no effort for the operator and working time extremely reduced.

TECHNICAL FEATURES

• Maximum hook height from fridge floor: 2.400 mm.
• Minimum hook height: 400 mm.
• Useful travel: 2.000 mm.
• Front arm rotation: 270 degrees
• Column rotation: 270 degrees
• Hook rotation: 130 degrees
• Total useful rotation: 360 degrees

Pneumatic equipment for removing nails from pie legs. Thanks to stainless steel structure and to a moderate weight of 7 kg, this machine could reach high performance of work removing more then 12 nails per minute.

TECHNICAL FEATURES

• Stainless steel structure
• Blades made in stainless steel thickness 10 mm.
• Total Weight of machine: 7 kg
• Air pressure: 7 bar
