AKS 65 - Calibration system
Semi-automatic casing change using turret technology
The linking and hanging technology from REX-Technologie stands for maximum flexibility. The process solution is innovative with the highest productivity and flexibility for all sausages. Regardless of whether you are processing natural, synthetic or collagen casings, the hanging systems fill with exact portions at maximum speed.

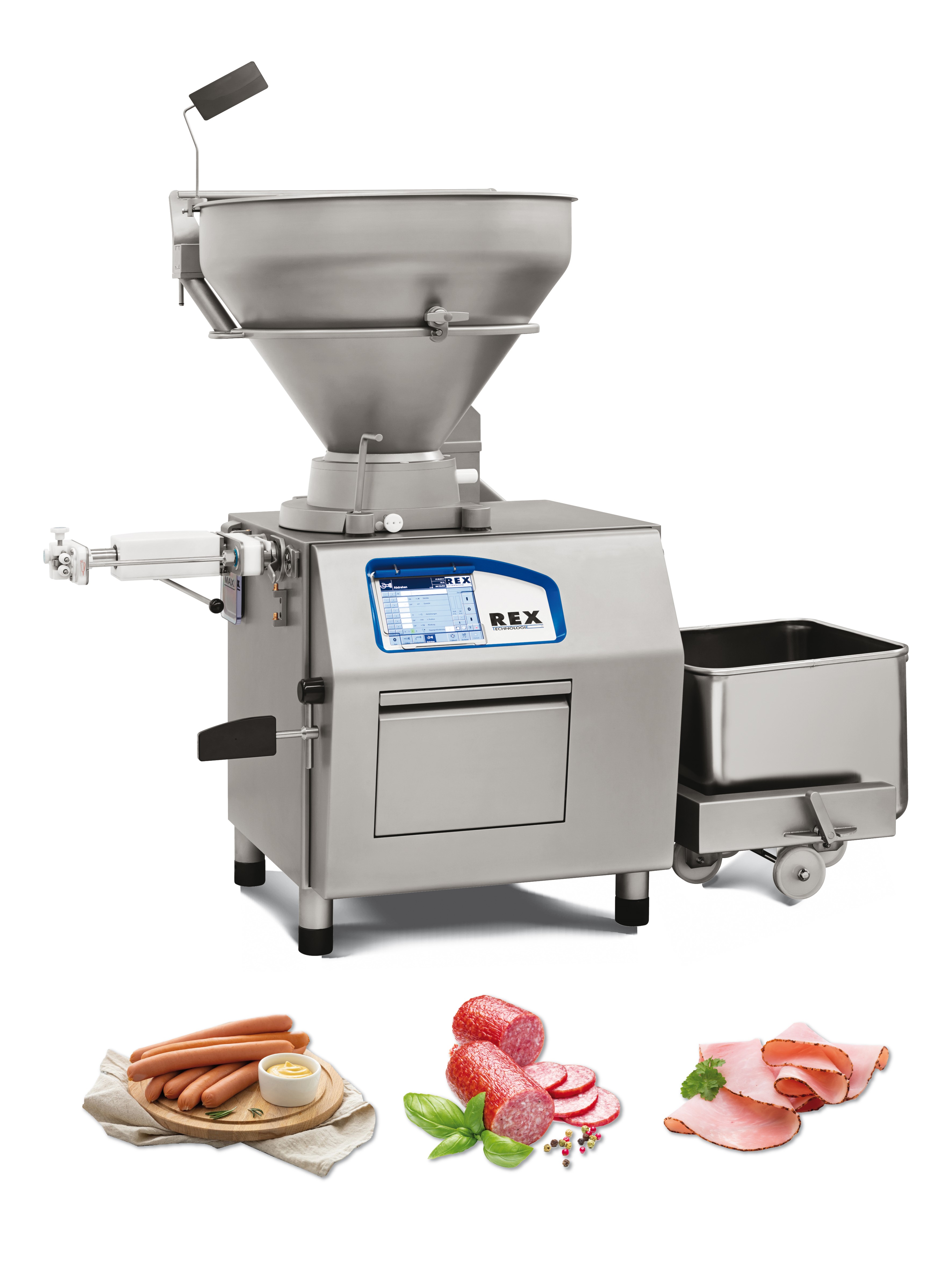

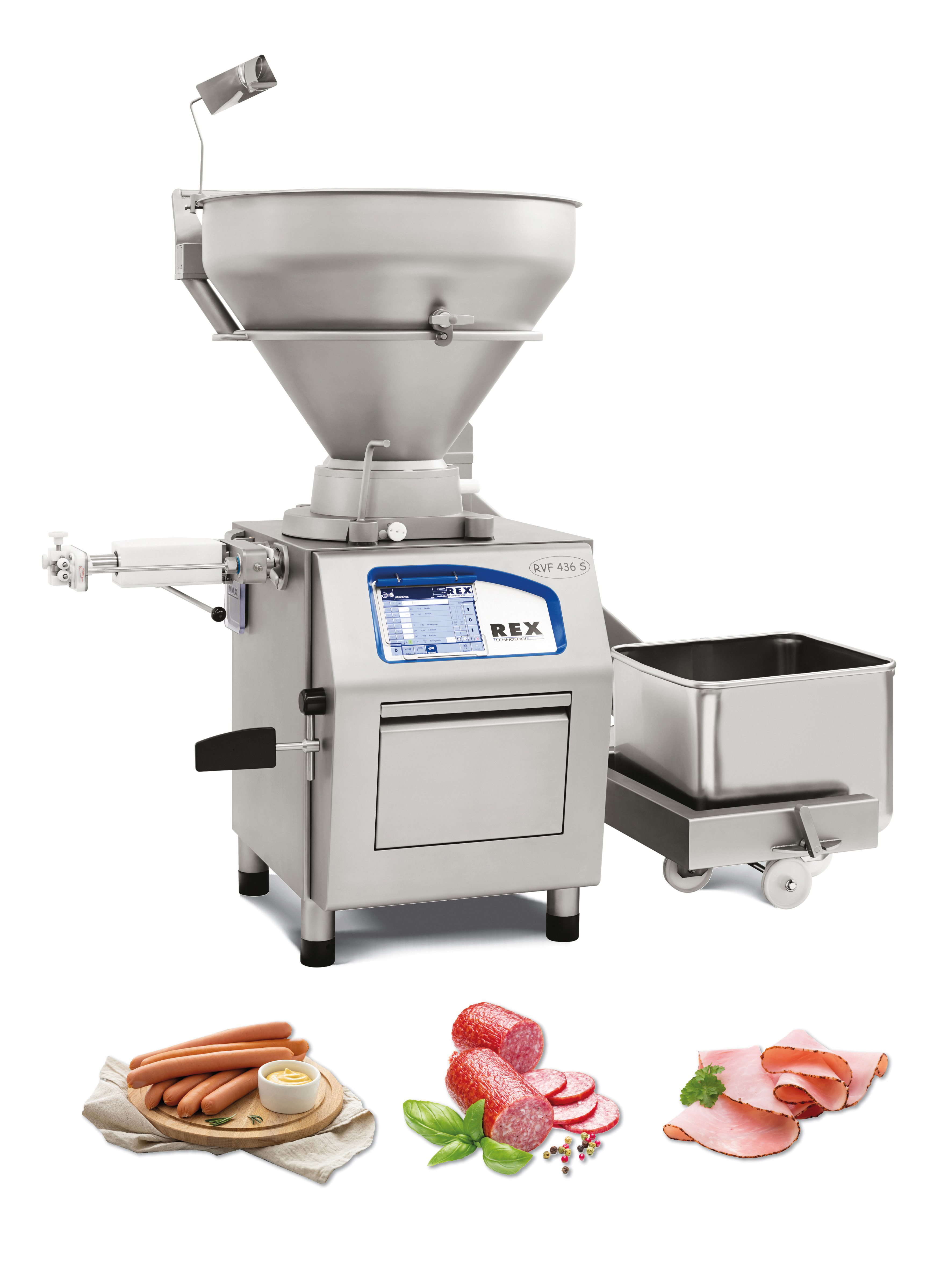

The filling process is carried out via the REX vacuum filler. The product is gently conveyed via the vane cell conveyor and the residual air is evacuated to the maximum. This provides the basis for the product quality of your sausages.
In the version without casing magazine, the casing is loaded onto the linking tube by hand.
Especially for natural casings, but also for all artificial and collagen casings, the casing is loaded onto the linking tube. The casing is changed simply by triggering the 2-hand condition on the AKS 65. This guarantees the shortest casing change times for maximum production output using a 3-position turret, and minimizes downtimes.
Displacement system defines the portion length
The continuously running vacuum filler fills the product into the casing. The displacement system defines the exact calibration point and, in conjunction with the highly dynamic REX servo drive, ensures an equal length and maximum production output. Piece counts of over 2,500 pieces/minute are possible with artificial and collagen casings and up to 1,000 portions/minute with natural casings - always depending on the respective sausage length and diameter.
Calibration belts ensure exact lengths
The two calibration belts according to the displacer system round off the concept. They can be easily adjusted to the caliber range by turning the two adjustment screws. This always ensures flexible use for all casing types with different casing diameters. In addition, set-up times are reduced to a minimum. The traversing movement and belt speed are automatically regulated by the easy to use touch screen system on the vacuum filler.
RHS 330 - makes hanging easy

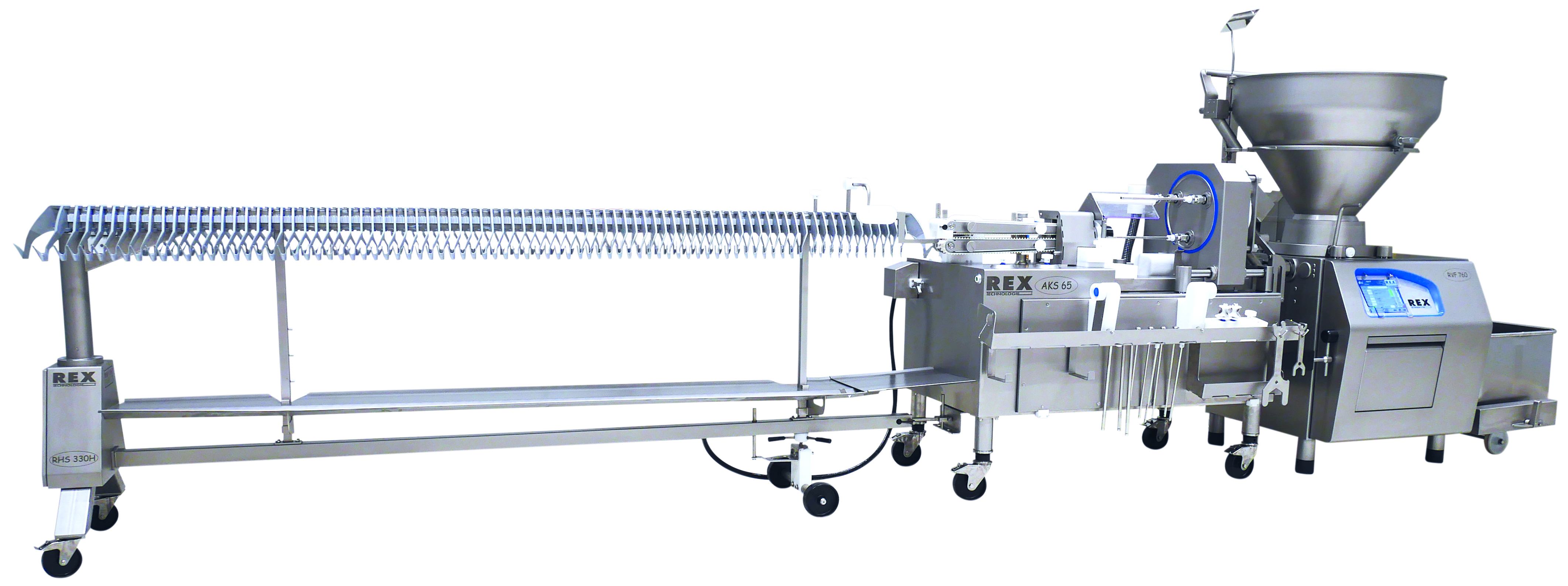

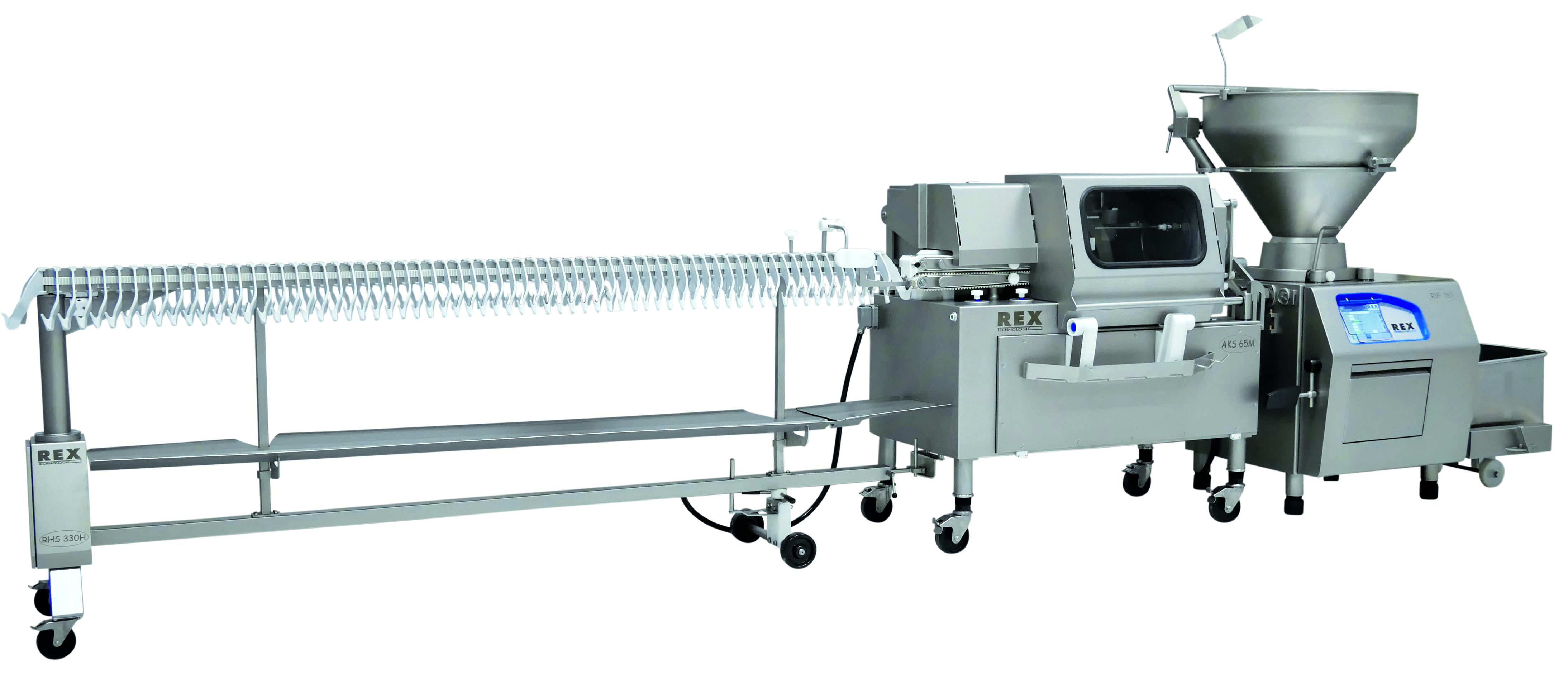

The AKS 65 transfers the twisted sausage chain directly onto the hooks of the RHS 330. Regardless of whether the sausage chain is curved or straight, the calibration belts from the AKS transfer the twisting point exactly onto the hook. The number of pieces per "loop" on the hook as well as the groups are set and stored in the product program of the vacuum filler. The narrow pitch (grid) of the catch hooks guarantees maximum loading on the smoke stick and thus also in the smoking and cooking system.
The RHS 330, just like the AKS 65, can be perfectly adapted to the operating personnel by optionally raising the level of the working height.
