Introducing the New Sausage Peeling Machine Model !
It solves your peeling concerns with faster processing and higher quality finish!

>>PRODUCT FEATURES
・It is possible to peel sausage products of cellulose casing from 13 mm to 36 mm. The minimum length of product is 28.5 mm.
・The maximum speed is 300 meters a minute.
・With over 90% open area on the back and sides of the machine, you can quickly access any part for maintenance.
・The safety cover has been upgraded to a sliding design, making it easier to operate and maintain.

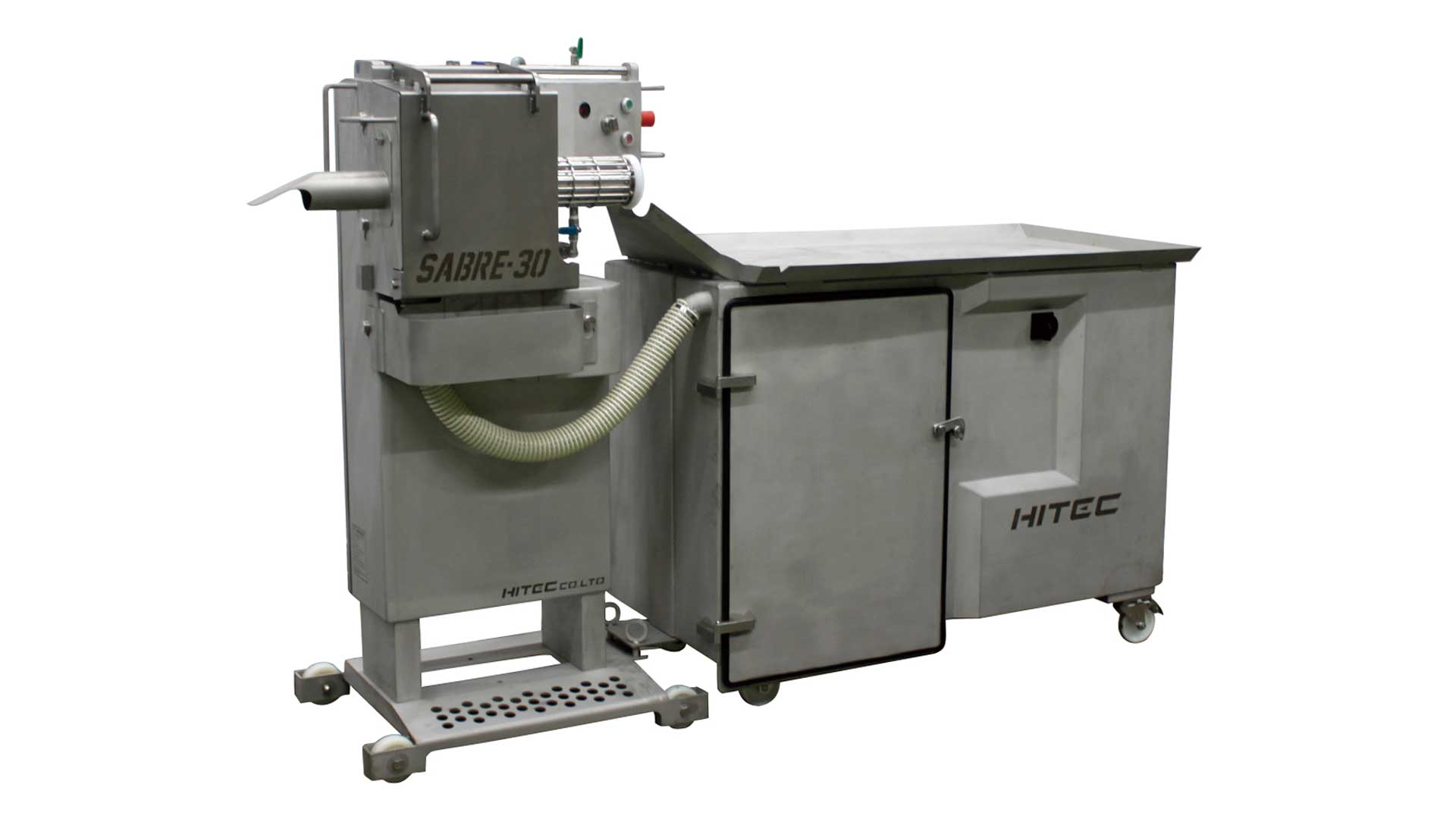

・Peeled casings are delivered to the dust box in the vacuum tank. For customers who adopt central vacuuming system at their plants, we provide SABRE-30 without vacuum tank.

【SAUSAGE HIGH SPEED LINKING AND HANGING SYSTEM FOR ARTIFICIAL CASING】

HITEC M-20 and M-10 series are machines adopting further improved features of high speed, more durability, and easy operation.

①HITEC M-20

>>PRODUCT FEATURES
・Production Rate: Max. 3,200 kg/hr

・Diameter: Collagen Casing 13 mm (33/64 in)～32 mm (1 17/64 in)

Cellulose Casing 14.5 mm (37/64 in)～34 mm (1 11/32 in)

・Shirred Length: Collagen Casing 300 mm (11 13/16 in)

Cellulose Casing 440 mm (17 5/16 in)
・Electrical Requirements: Three-Phase 6,775 W

②HITEC M-10

>>PRODUCT FEATURES

・Production Rate: Max. 3,200 kg/hr

・Diameter: Collagen Casing 13 mm (33/64 in)～32 mm (1 17/64 in)

Cellulose Casing 14.5 mm (37/64 in)～34 mm (1 11/32 in)

・Shirred Length: Collagen Casing 280 mm (11 1/32 in)

Cellulose Casing 325 mm (12 25/32 in)
・Electrical Requirements: Three-Phase 6,775 W

>>LEARN MORE on our website:
https://www.hitec-jp.com/en/product/m10m20.html

③HITEC M-3

>>PRODUCT FEATURES

・Production Rate: Max. 3,400 kg/hr

・Casing Size: Cellulose casing code 13 through 36.

・Casing Stick Length: Max 419 mm (16 1/2 in) cellulose casing

・Product Size: 3 pitches (28.4 mm, 1 1/8 in) through 32 pitches (305 mm, 12 in) or more

・Electrical Requirements: Three-Phase 6.1 kW

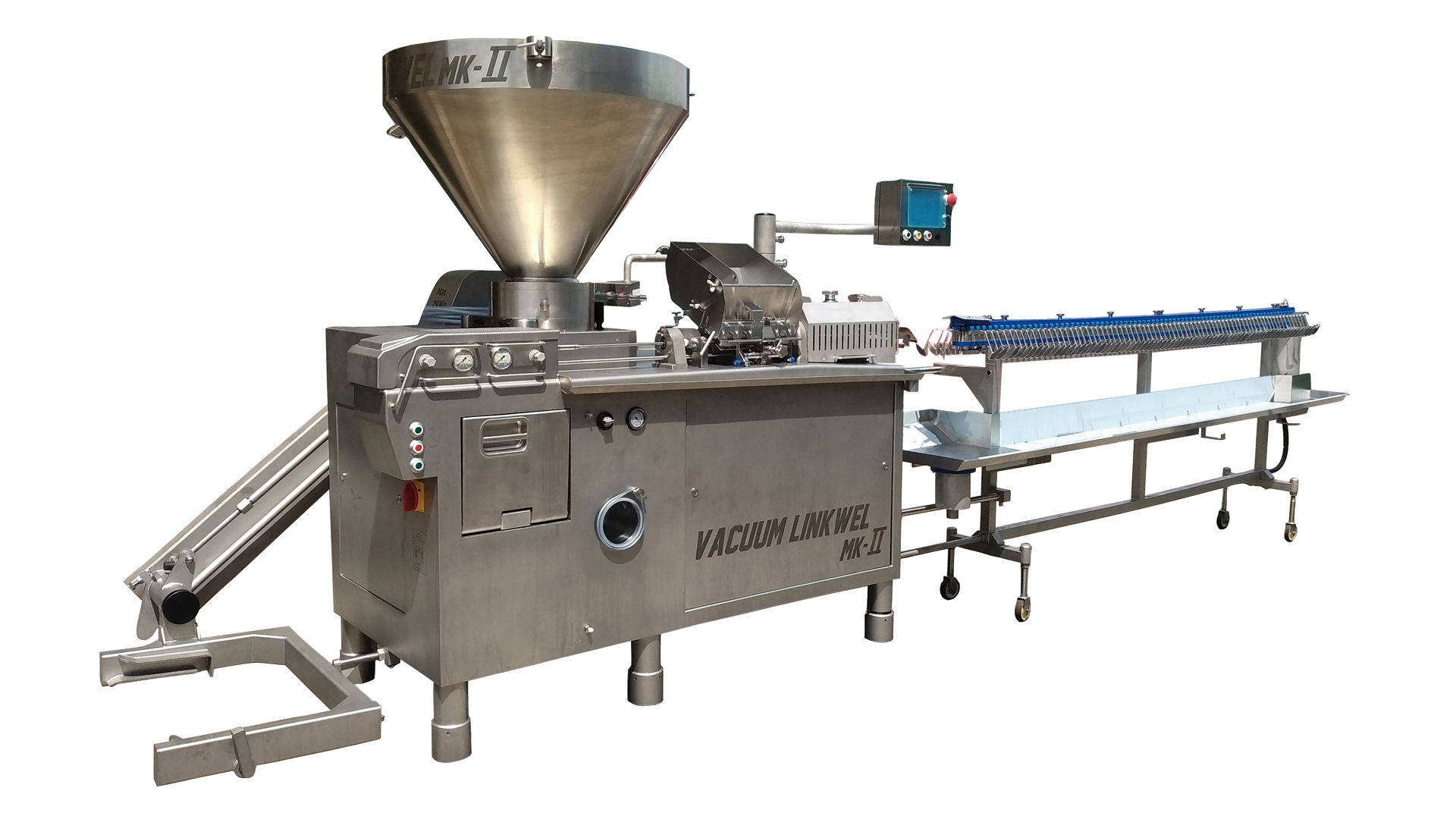

【VACUUM LINKWEL MKⅡ】

No More Linking Chain Needed! Set product length in 1mm increments! Vacuum filling machine and high-speed filling machine are integrated!

By using two paddles and upper/lower dual belts instead of a linking chain,

we have made it possible to produce artificial casing sausages with consistent weight and length.

In the "Vacuum Linkwel MK-II," the gear pump has been removed, and only a vane pump is used. Additionally, the piping has been shortened, significantly reducing meat residue and minimizing overworking of the meat, which leads to improved product quality.

Vane Pump

With HITEC’s latest vane pump, the temperature of the input meat is kept from rising, allowing for precise portioning without overworking or damaging the meat.

Direct Piping (with Optional Magnetic Filter)
The monitor interface is designed to be simple and intuitive, allowing anyone to start using it immediately after installation.

Space-Saving Installation

By integrating the meat pump with the high-speed linker, the required installation space has been significantly reduced.

>>PRODUCT FEATURES
・Production Rate: Max. 2,000 units / minutes (Collagen and Cellulose Casing)

・Diameter: Collagen Casing 13 mm ～36 mm

Cellulose Casing 13 mm～40 mm

・Shirred Length: Collagen Casing 320 mm

Cellulose Casing 440 mm
・Electrical Requirements: Three-Phase 12.5 kW

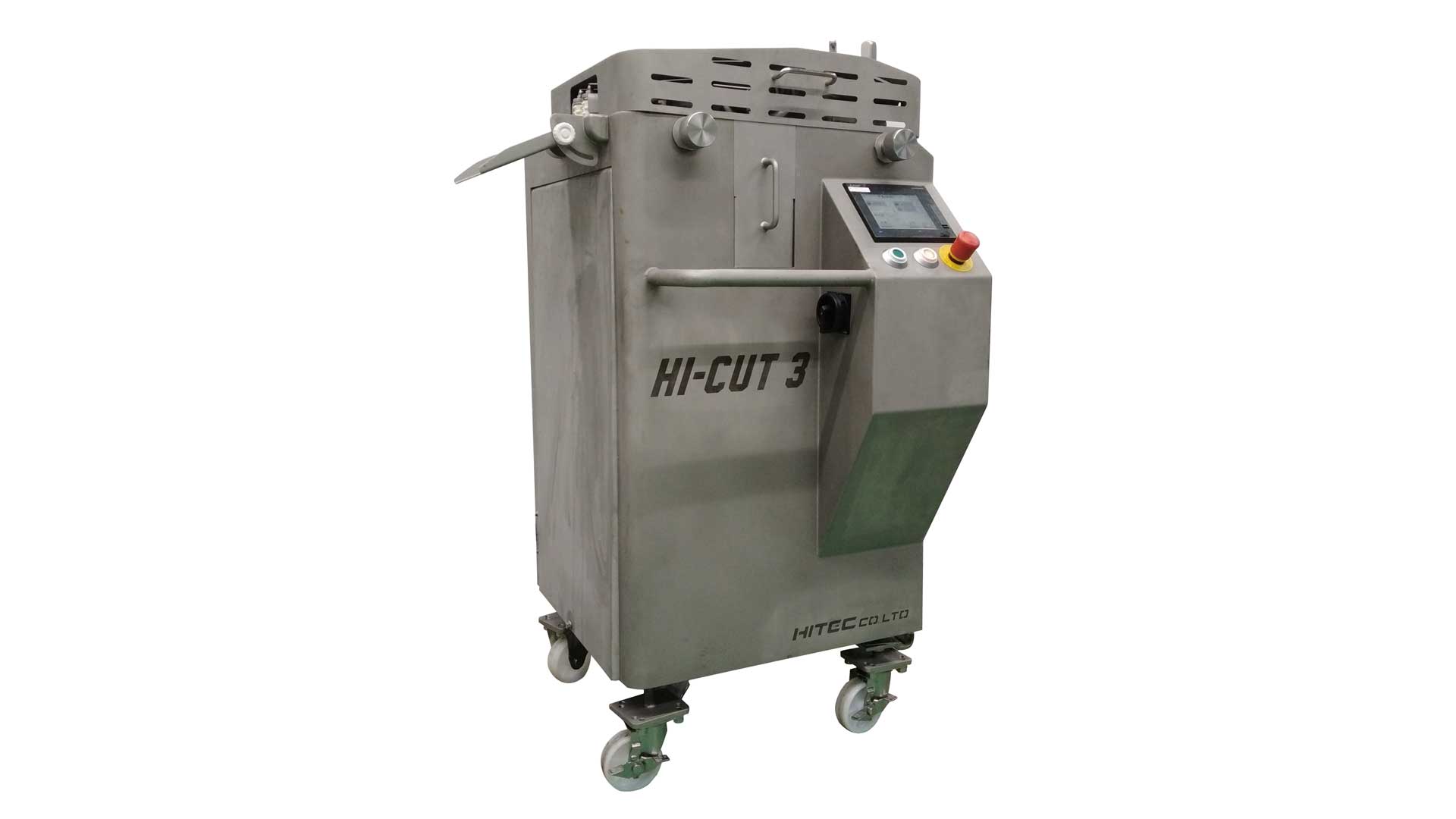

HI-CUT 3 is our new model launched from our sausage cutter line-ups.

HI-CUT 3 realizes the precise cutting with high speed.
The counter function is available as the conventional model.

>>PRODUCT FEATURES
・Natural casings, Collagen casings, Cellulose casings, Cooked sausages, Fresh sausages, Sausages of various sizes.
・The supply and discharge conveyors are completely independent, allowing flexible adjustments for both sides.
・When connected to a stuffer, the cutting machine ensures that the product is cut to the set weight and fixed length.
・Production cut rate
Example)
For a product with a total length of 50mm
In feed conveyor settings
At 500mm/s setting : 600units/m
At 2,000mm/s setting : 2,400units/m

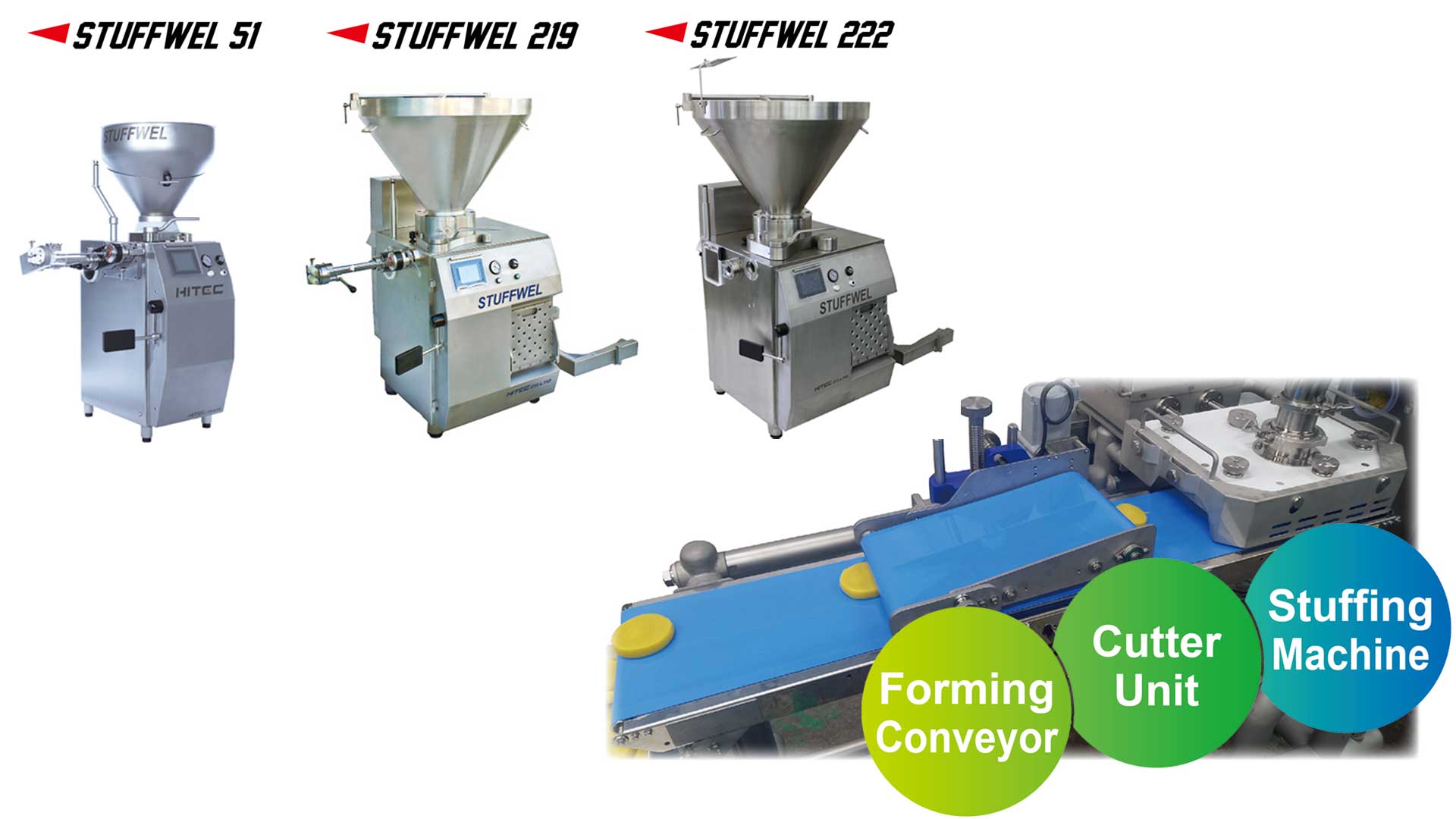

Freely combine the ①stuffing machine, ②cutter unit, and ③forming conveyor to suit your production line !!
We offer the optimal system tailored to your specifications !

【①VACUUM STUFFER】

Our vacuum stuffers are capable of accurately portioning a wide variety of products, including meat,fish paste, and prepared foods. Flexible design supports a wide range of applications—tray and cup
filling, bottling, and canning. A range of models is available to match your production needs.

STUFFWEL 51

Filling Capacity: up to 2,200 kg/h

Filling Pressure: up to 30 bar

STUFFWEL 219

Filling Capacity: up to 3,000 kg/h

Filling Pressure: up to 40 bar

Hopper Capacity: 300 L

STUFFWEL 222

Filling Capacity: up to 5,500 kg/h

Filling Pressure: up to 60 bar

Hopper Capacity: 300 L

【②CUTTER UNIT】

Type1

Vertical Shutter Type

Type3

Horizontal Shutter Type

Type4

Dual-Blade Swing Type

【③FORMING CONVEYOR】

Flat Conveyor

Thickness Adjustment Belt

Vertical and Orizontal Forming Rollers
