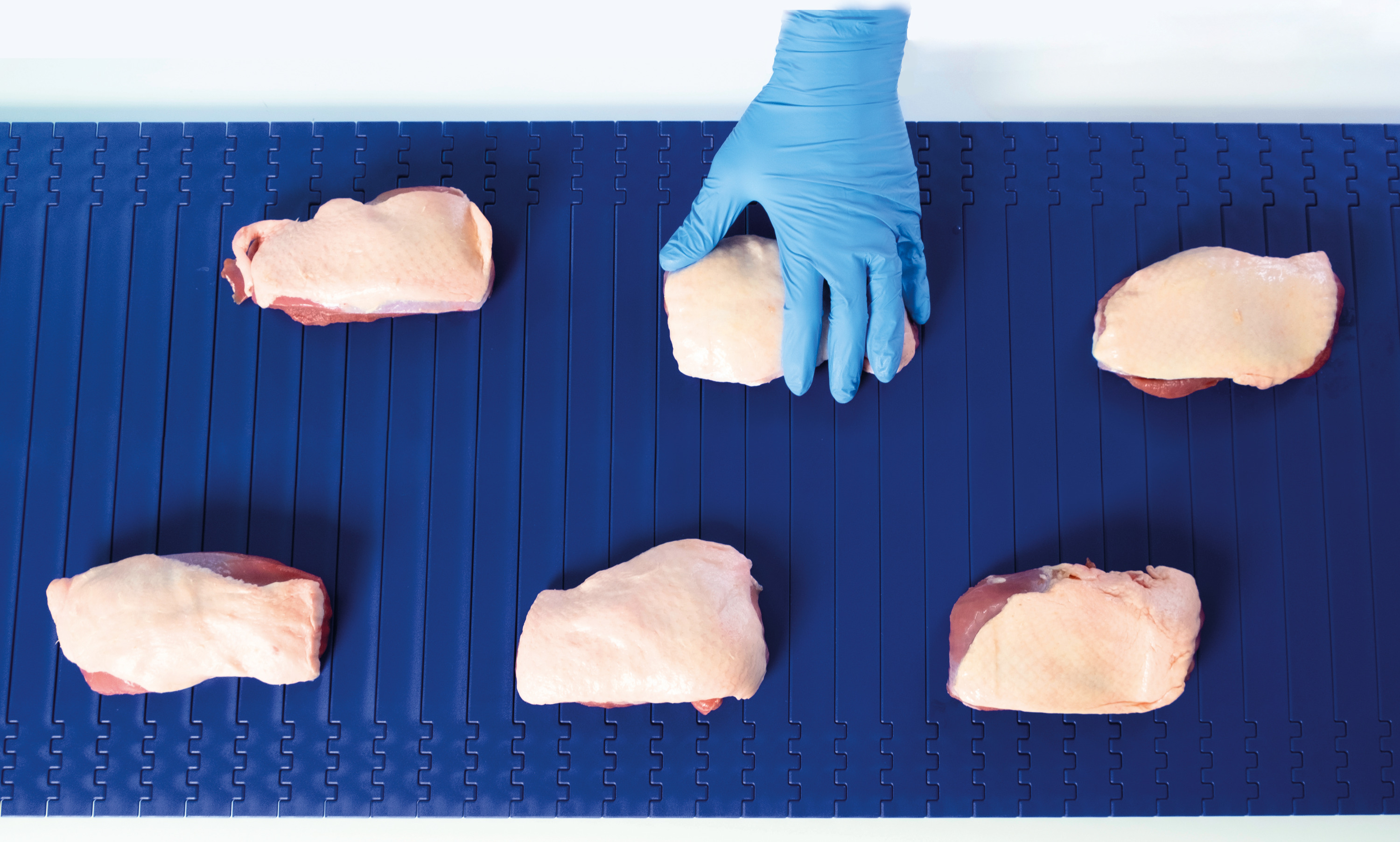

The Super HyCLEAN® products have been designed for applications where the highest hygienic standards are required, with a special focus on poultry and fish processing. The innovative hygienic design reduces the deposit of organic debris and, at the same time, allows quick, easy and efficient cleaning operations, thus reducing the overall sanitation costs and the risk of product cross-contamination.

• Up to 40 Times less bacteria colony forming units
• Up to 70% less time for belt cleaning

• Significant reduction of cleaning labor costs

The brand new dynamic open hinge creates
a robust structure to drive the belt with only two sprockets. At the same time, it allows the water flow to reach the hinges and the rods, facilitating product debris removal.

The openings between the consecutive modules allow the water and the sanitation foaming agents to pass through them and easily reach the underside of the belt.

Hinges and rods have been reduced by 80% compared to a traditional modular belt (610mm/24’’ width). The total surface area of the Super HyCLEAN® belt has been consequently reduced by 33%.

The complete absence of pockets and corners in the central section of the belt reduces the deposit of organic debris which is the main cause of bacteria colony proliferation.

Plug-and-Play Hygienic CIP for retrofitting existing conveyors.

The ease of installation and retrofit on different conveyor designs allows plant managers to process food in a safer, cleaner, and more hygienic way for all conveyor belts along the production line.

The Habasit CIP is suitable for use in combination with modular, monolithic and fabric belting. Your benefits:

• Less manual cleaning & shorter cleaning time
• Easy to install, plug & play solution
• Lower consumption of water & cleaning agents

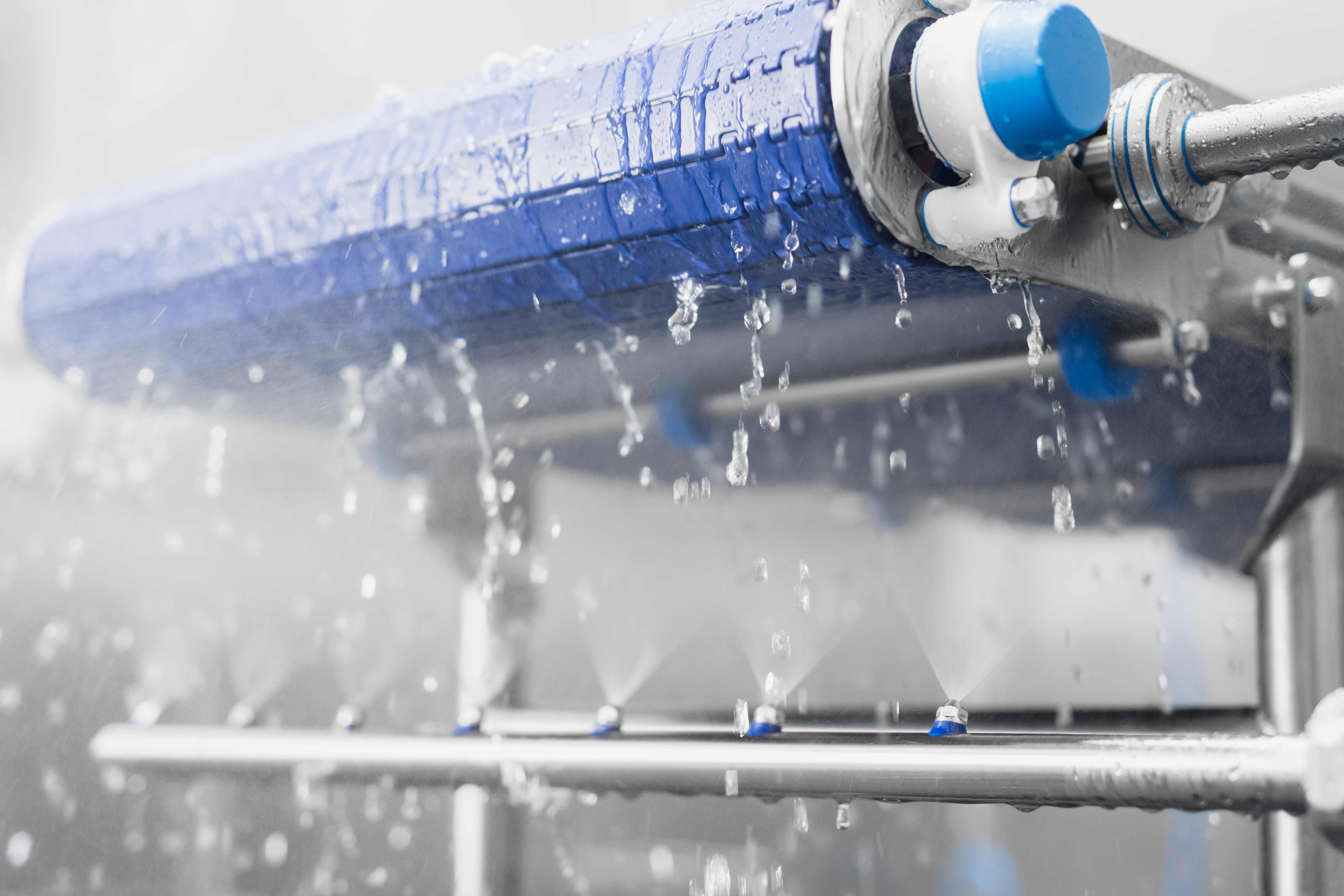

The Habasit CIP unit provides internal and external cleaning of the conveyor belt and saves you time while doing so. Reduced cleaning time and manual labor are also beneficial to production time.

The unit's self-draining, hygienic design allows minimum cleaning effort of the device.

You can now easily install an effective CIP system on your existing conveyor regardless of its design, with no need for complicated engineering or conveyor frame modifications. Only a few holes are required to secure it to the conveyor frame. Its easy assembly has multiple mounting options and final fine-tuning can be done on site.

HabasitLINK® Micropitch - Thightest transfer in the market

The belt accommodates small knife edges with diameters 6 mm, and delivers the additional benefits offered by plastic modular belts of excellent belt tracking, less maintenance, and easier cleanability.

Your benefits:

• 50% lower minimum transfer distance than conventional solutions
• Less unplanned stops and easier to repair compared to fabric solutions
• Special surfaces available for reliable product positioning

Thanks to the high grip surface that keeps the product in place even on incline applications, the M0870 belt provides accurate positioning in combination with tight transfers and avoids tracking issues.

Habasit offers the highest variety of 0.3-inch modular belting surfaces, including:

• Non-Slip
• Diamond Top
• HighGrip
• Flush Grid
• Cone Top

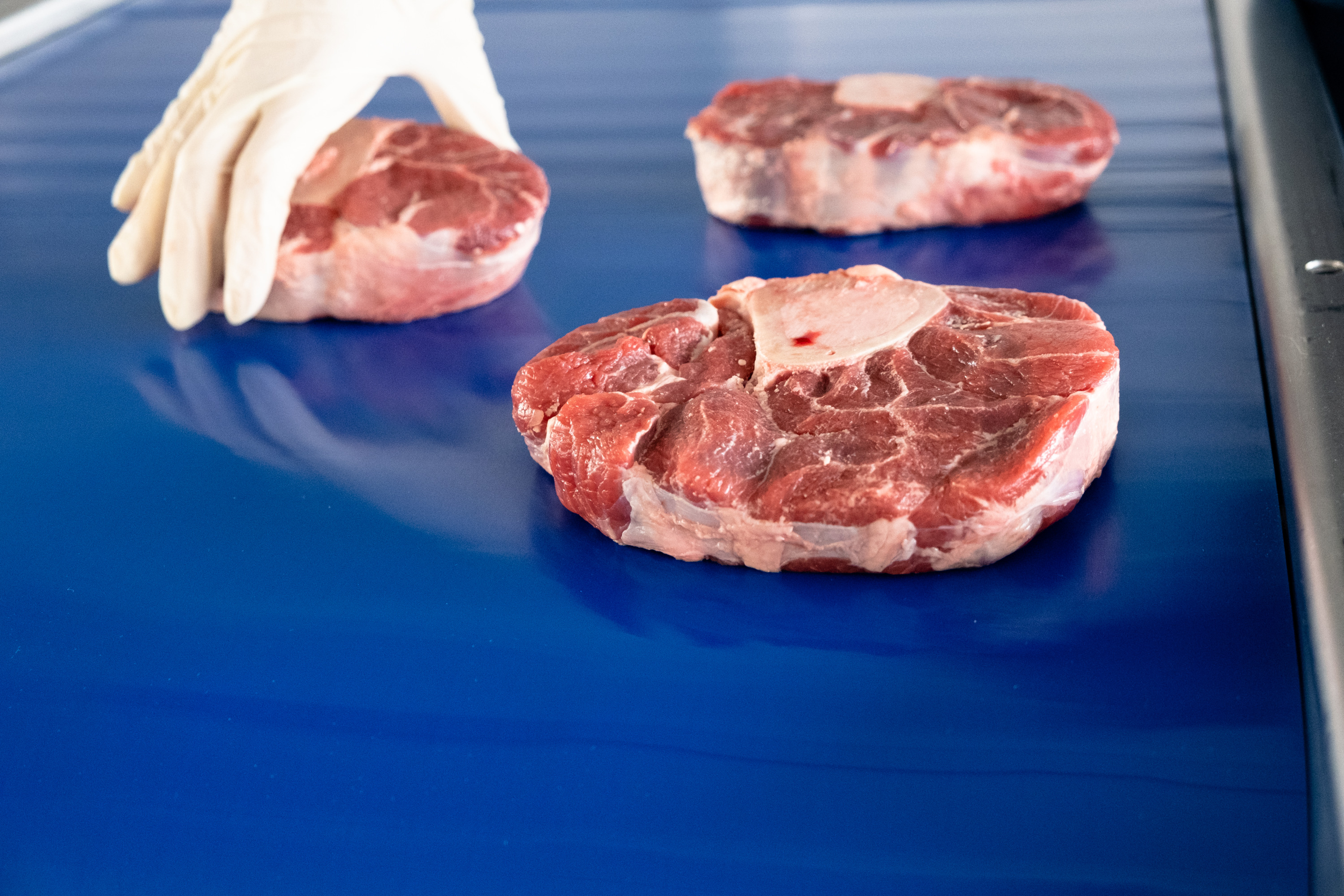

Habasit Cleandrive® - Leading aramid reinforced monolithic belting for hygienic & reliable operations. Belts offer a smooth, uniform surface without sink marks, and embedded cores that guarantee true length without creep.

• Superior hygienic performance
• Abrasion & Hydrolysis resistance
• Reliable sprocket engagement even under higher load.

Habasit Cleandrive® belts is completely free of fabric members that could fray during use and pose a food safety risk. The solid yet flexible belt design is also free of cavities, joining rods and crevices normally found in hinged belts, making Habasit® Cleandrive belts very easy to clean.

Habasit Cleandrive® belts are manufactured using premium TPU, which features superior durability and hydrolysis resistance, and is inherently resistant to microbiological attack. The belt is designed to withstand the most aggressive cleaning protocols and chemical agents. They are able to operate in a wide temperature spectrum: from low-temperature freezer in-feeds to high-temperature fryer out-feeds.

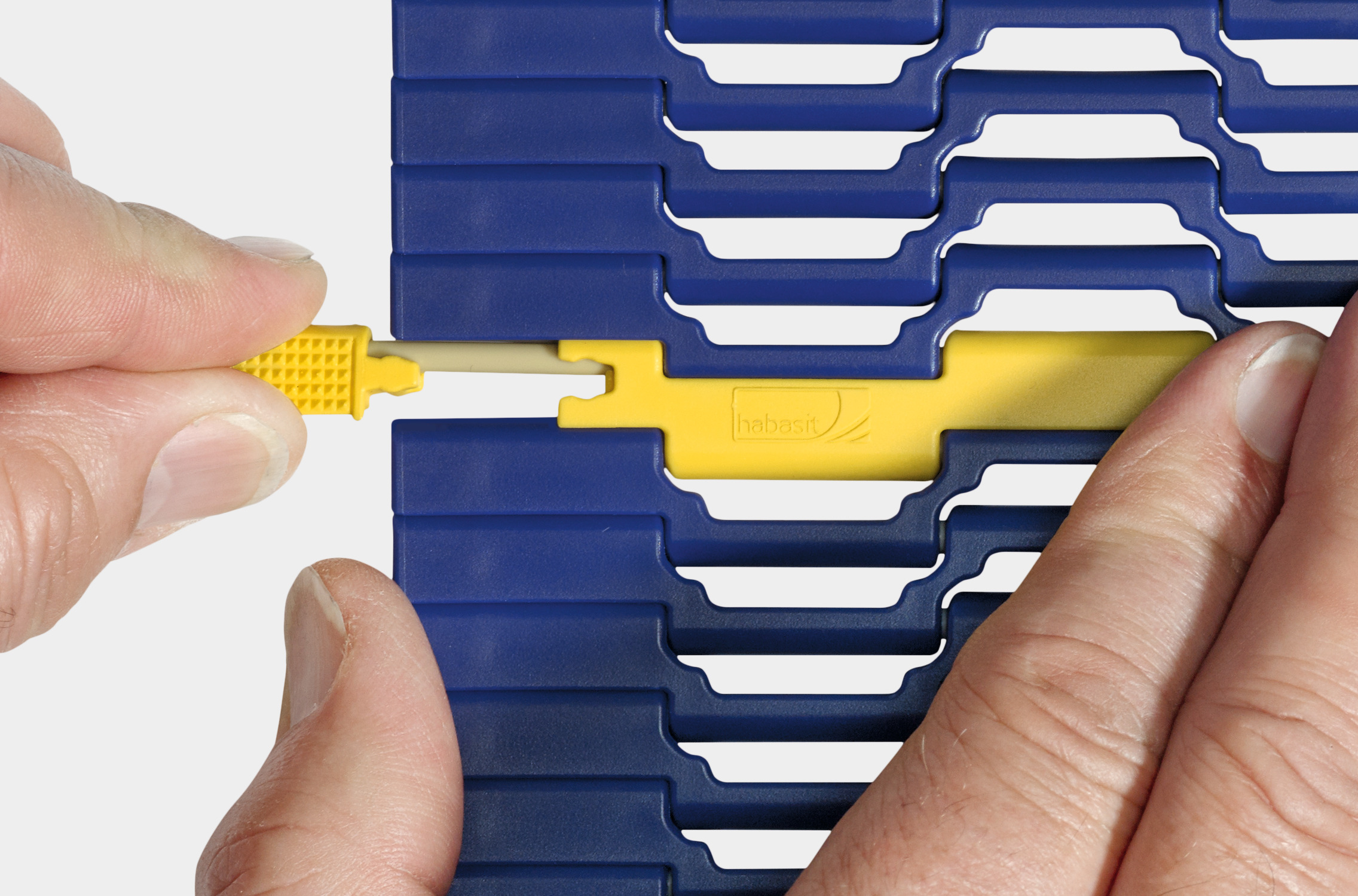

Habasit Saniclip - this innovative rod retention system facilitates belt cleaning and maintenance allowing belts to be removed and installed in seconds with no additional tools needed. Available for HabasitLINK® plastic modular belts and Habasit® Cleandrive monolithic belts, Saniclip makes cleaning and maintenance easy.

Your benefits:

• Easy belt cleaning
• Easy access for maintenance
• No tools needed
