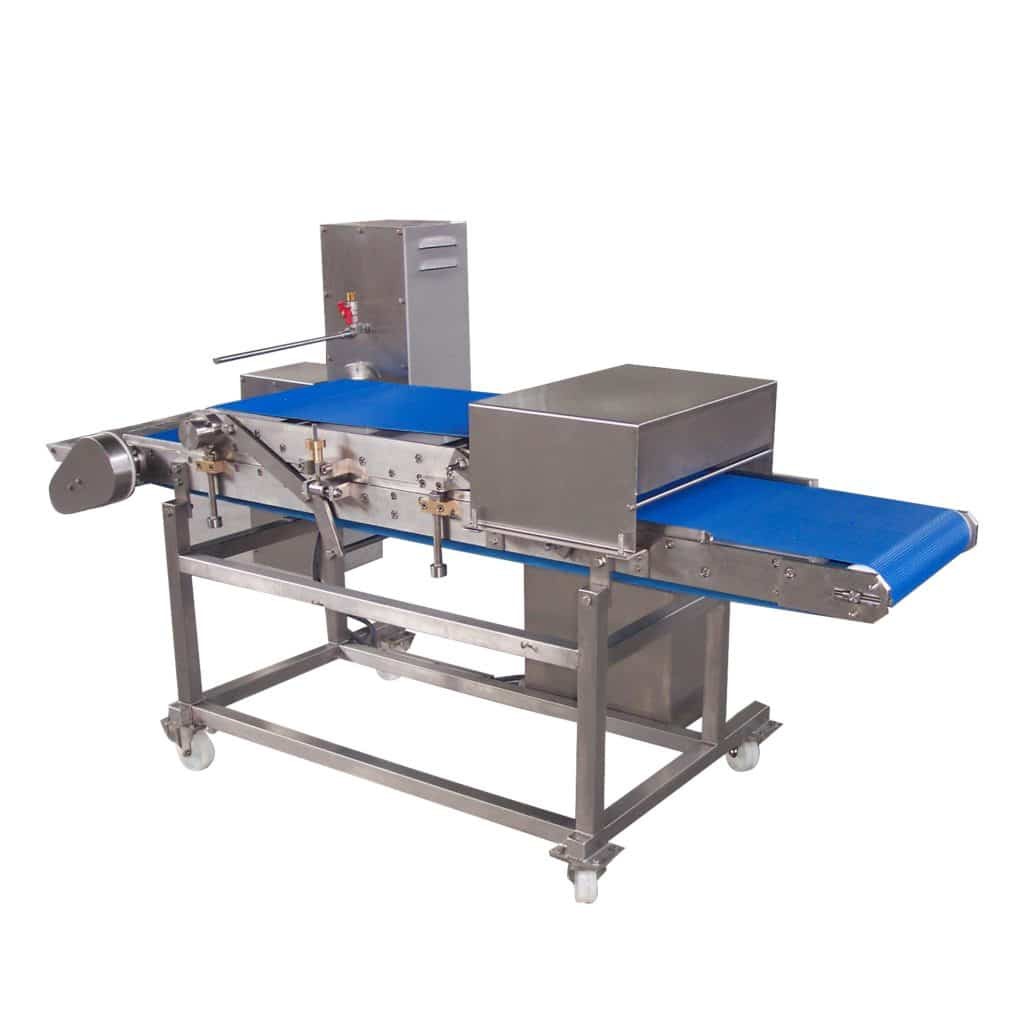

The steaker which is designed for the industry is very high-powered and sturdy. It captivates by its solid construction and is equipped with pneumatically springed rollers that adapt perfectly to any product size.

The Henneken roller steaker has got a band width of 500 mm and can be equipped with knife rolls of each 46 or alternatively 65 knives per roll. By the use of different types of knives built of especially hardened steel a wide range of products can be processed.

Through the height and pressure control of the knife rollers and the steplessly adjustable drive, the product can be processed gently as well as intensively. An exchange of one or both knife rollers with different types of press rollers is possible.

The distance between the knife rollers can be set to -12mm (knives interlock) up to +120mm.
Advantages through using a Henneken tenderizer:

• surface enlargement
• improved protein activation
• improved binding
• shorter tumbling time
• standardisation of the end product
• improved product tenderness
• reduction of cooking loss


Henneken offers five different types of vacuum tumblers in order to be able to offer every enterprise a machine corresponding to their own product and the production process.

• Type B – horizontal rotating container with one opening 650 – 12,000 ltr
• Type C – horizontale rotating container with two openings1,800 – 11,000 ltr
• Type R – lift and tilt device with cone 3,200 – 10,000 ltr
• Type MVT – rotating, swiveling drum 50 – 250 ltr
• Type CVM – swiveling drum with rotating arm 150 – 350 ltr

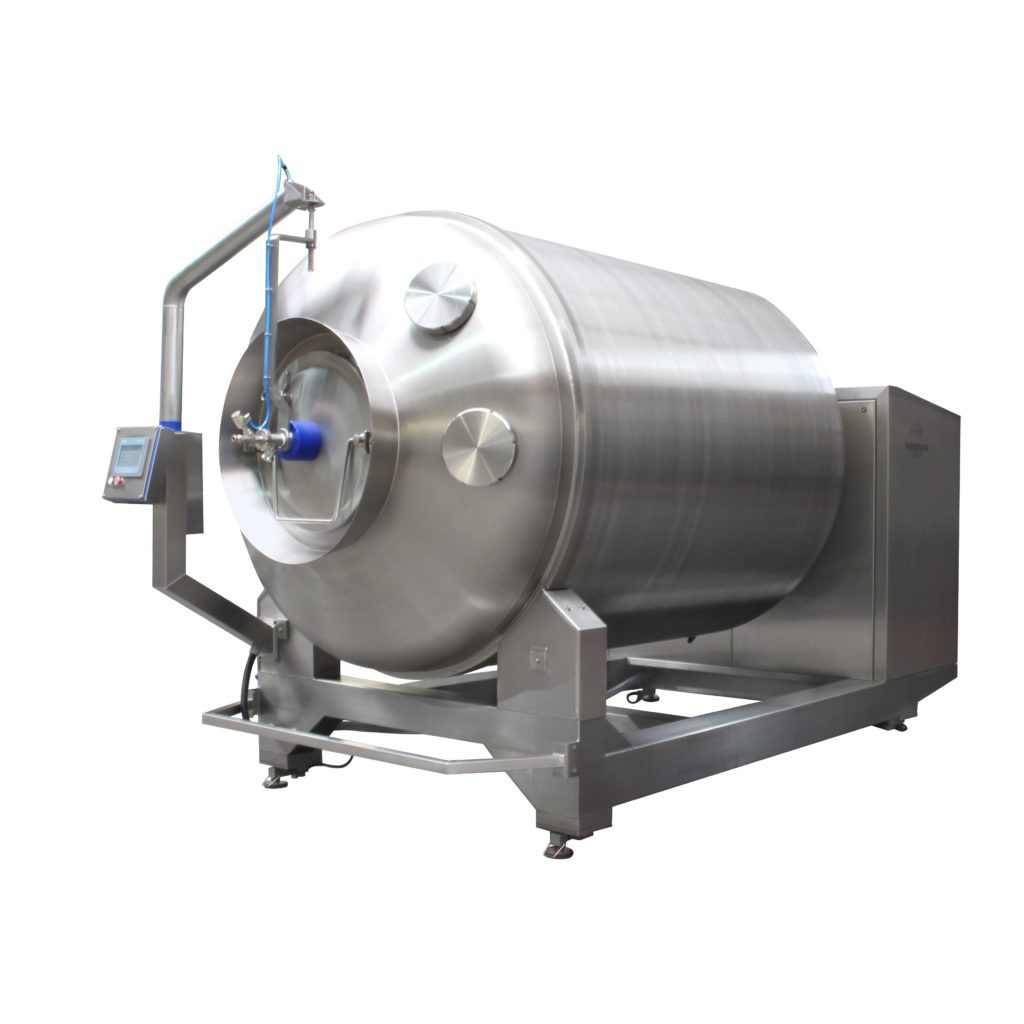

TYPE B: THE BESTSELLER - BEST RESULTS THROUGH 3D-TUMBLING

The vacuum tumbler type B is the bestseller of all the vacuum tumblers due to its excellent price performance ratio.

The flexibly applicable tumbler can optionally be delivered with or without cooling and/or defrosting device.
The type B is equipped with a direct drive and provides a rotational speed of 0.5 to 10 RPM. All tumbler parameters can be adjusted by the user friendly SIEMENS touch panel and are also programmable.

The extraordinarily sturdy and user friendly construction supports a gentle as well as an intensive massage to constantly ensure the highest product quality. The vacuum tumbler type B is ideally suited for curing cooked ham products, for dry salting smoked ham, for the production of kebabs and for tumbling fish and poultry products. It is possible to tumble meat with or without bones and with or without skin.

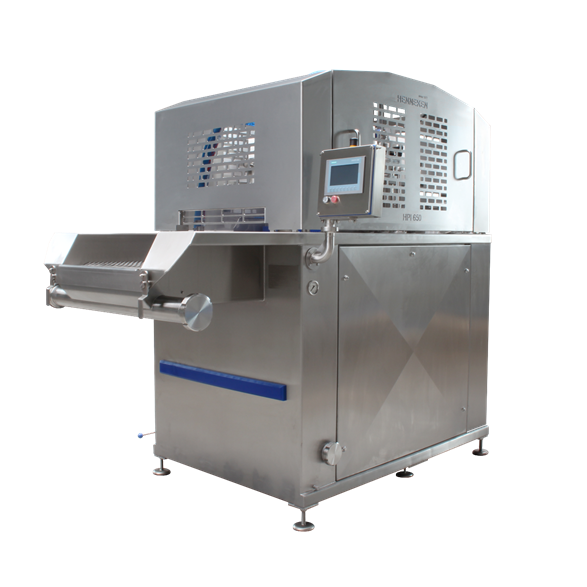

The injector HPI is availabe with the working width 350 mm and 450 mm.

The injectors are characterized by its robust industrial design and its ease of maintenance. It was attached importance to unproblematic accessibility to all parts. Only top quality components are built-in.

The injection is suitable for all kinds of meat with and without bones.

By a special stripper with height setting it is guaranteed that no product is pressed or injected brine is pressed out. Thus the product is able to increase.

The injector control is characterized by user friendliness. Stroke speed and beam walk speed are coupled mechanically through the robust drive with frequency converter and are absolute synchronous.

The pressure of the injector is steplessly adjustable by frequency converter driven centrifugal pump and can be read off the display or manometer.

The product transport is realized by a beam walk system. The beam walk speed can be changed from single stitch to double stitch. The product move has been deviced for a homogen stitch arrangement. This ensures a constant product quality.

For easy cleaning the scaper and the complete comb as well as the splash guards and sheet attachment can be removed without any utilities.

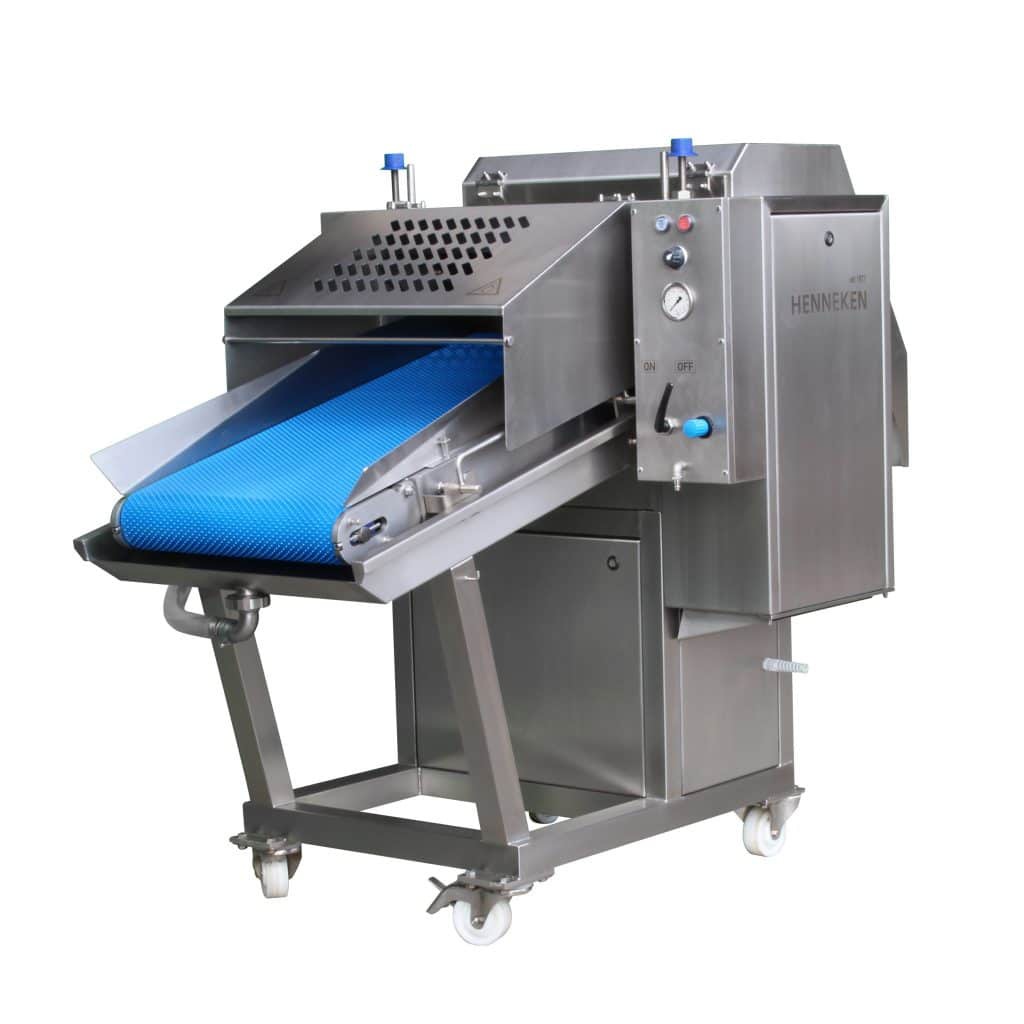

The Henneken flattener HP 415 has got a band width of 415mm. The conically in-feeding belts guarantee an optimal input of the product.

The steplessly adjustable conveying speed of 2.5 to 15m/min of the synchronized upper and lower bands allow an ideal processing of diverse products like kebab meat, schnitzel or turkey breast.The distance between the belts can be set steplessly from 6 to 130 mm.

By the self-centering belts a side-slipping of the belt or product is prevented. For an easy and fast cleansing the upper belt can be removed without effort. Both belts are easily opened.A stainless steel discharge-conveying belt enables that the product is striked off optimally. The discharge-conveying belt is turnable at the bottom of the lower belt.

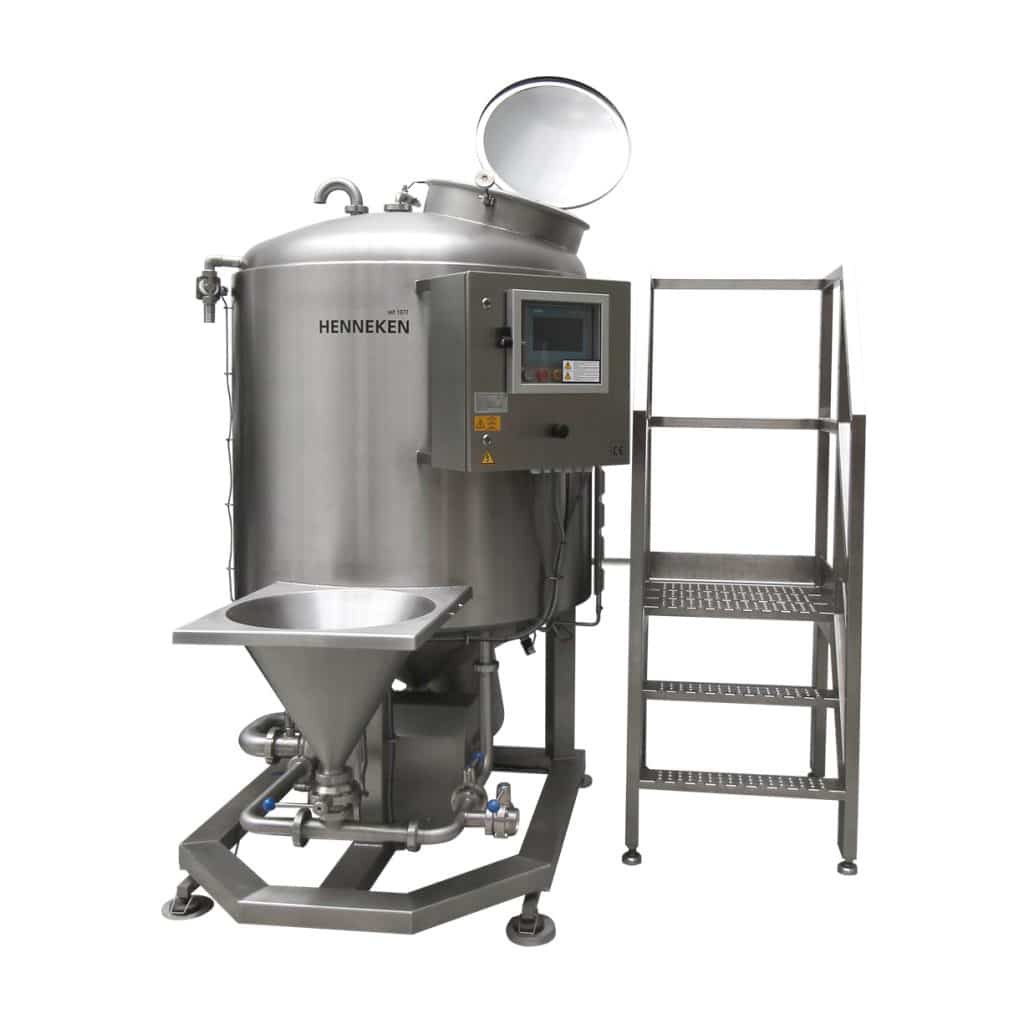

The Henneken brine mixer HVM works by the Venturi-system. This feature supports a fast and very homogenous mixture of fluids, powdery substances and ice in water.

The HVM is standardly on stock in the sizes 400 liters, 650 liters, 1000 liters and 2000 liters. All sizes can be equipped with a double jacket cooling if desired.

The substance to be mixed in is entered into the loading system and is automatically sucked in and mixed without any lumping.For the optimal control an interconnection to the curing injector/tumbler is possible. Moreover, water dose feeder, SIEMENS touch panels with recipe management as well as weighing systems, electro-pneumatic valves and other options are available on request. All tubes and valves are easily removable for cleaning and maintenance.

With the use of a Henneken brine mixer the production of the homogenous brine is very fast. In addition to that the brine is stable for a longer time and avoids an early sedimentation.
